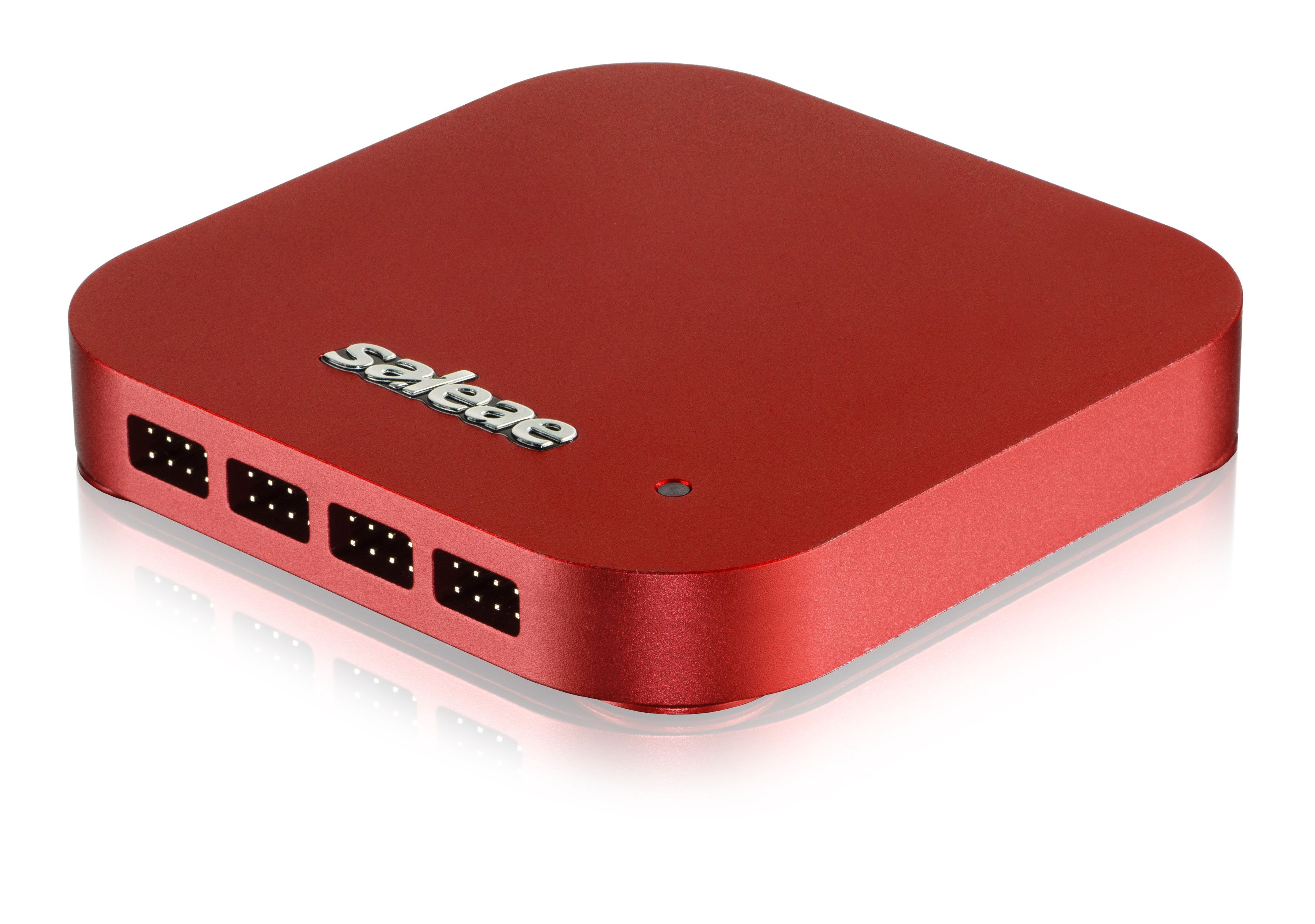

Saleae Logic Pro 16 Red

Name: Saleae Logic Pro 16 Red
Brand: Saleae
SKU: SAL-00116
Price: 1818.50 EUR
Availability: InStock

Temporarily out of stock

SKU#: SAL-00116

Saleae Logic Pro 16 Red

Temporarily out of stock

SKU#: SAL-00116

Saleae Logic Pro 16 is a 16-channel logic analyzer with top-tier software. Debug with the world’s most popular tool and instantly reveal the true nature of bus protocols. Comprehensive system support: Win, Mac, Linux.

1818,50 €

Made to order, delivery time usually 7-14 days

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Ominaisuudet

Tunnetusti helppokäyttöinen ohjelmisto, ladattavissa natiivina useille käyttöjärjestelmille: Windows, OSX, Linux
Toteutus perustuu suorituskykyiseen Xilinx Spartan 6 FPGA piiriin
Jokaista kanavaa on mahdollista samplata digitaalisesti tai analogisesti A/D muuntimella
Tukevan tyylikäs koneistettu alumiinikotelo, saatavilla mustana tai punaisena
Toiminnallisuuden ja automatisoinnin laajentaminen SDK paketilla (linkki alla)
Laaja käyttäjäyhteisön tuki

Speksit

Tulot
Multi-Use (A/D/Both)	16
Input Resistance	2 MΩ
Input Capacitance	10 pF
Input Protection	± 25V
Digitaalinen
Sample Rate (max)	500 MS/s
Fastest Digital Signal	100 MHz
Sample Depth (typical)	10+ Billion
Supported Logic Levels	1.2V - 5.5V
Works with RS-232, 422/3, 485	Yes, directly
Threshold Voltages	Selectable 0.6V / 0.9V / 1.65V
Analoginen
Sample Rate (max)	50 MS/s
Bandwidth (-3dB)	5 MHz
Number of bits	12 bits
Input Voltage Range	-10 V to 10 V
Attenuation @ Nyquist	-50 dB or better
Channel-Channel Crosstalk	-50 dB or better
Toimitus
Test Lead Set	x4
Test Clips 8-Pack	x4
USB Cable and Carry Case	Yes
Fyysiset
Size	92 x 92 x 15 mm
Weight	220 g
USB
USB Type	USB 3.0

Toimitus

Logic Pro 16 USB punainen logiikka-analysaattori, 32 kpl mittapäitä, 4x 4 mittajohtosettiä, USB kaapeli ja kantolaukku, aloitusopas englanniksi

Linkit

Product Information

Availability Made to order, delivery time usually 7-14 days
Manufacturer Saleae
EAN 894282002193
Product path Home Measuring Instruments Electronic Measuring Instruments Logic Analyzers Saleae Logic Pro 16 Red
SKU SAL-00116
Attributes
- Color punainen
- Channels 16
- Weight 220g
- Manufacturer's model Saleae Logic Pro 16 USB Logic Analyzer, Red (SAL-00116)
- Click for more details https://www.saleae.com/
- Dimensions 92 x 92 x 15 mm
- Delivery time 2-3 weeks
- Extended warranty 3 years
