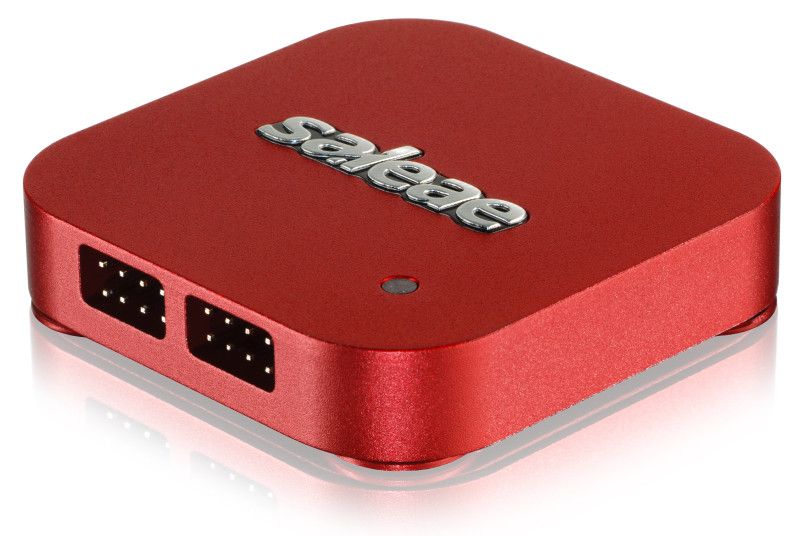

Saleae Logic 8 Red

Name: Saleae Logic 8 Red
Brand: Saleae
SKU: SAL-00112
Price: 601.15 EUR
Availability: InStock

Temporarily out of stock

SKU#: SAL-00112

Saleae Logic 8 Red

Temporarily out of stock

SKU#: SAL-00112

Saleae Logic 8 is an eight-channel logic analyzer with top-tier software. Debug using the world’s most popular tool and instantly observe the true nature of bus protocols. Comprehensive system support: Win, Mac, Linux.

601,15 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Ominaisuudet

Tunnetusti helppokäyttöinen ohjelmisto, ladattavissa natiivina useille käyttöjärjestelmille: Windows, OSX, Linux
Toteutus perustuu suorituskykyiseen Xilinx Spartan 6 FPGA piiriin
Jokaista kanavaa on mahdollista samplata digitaalisesti tai analogisesti A/D muuntimella
Tukevan tyylikäs koneistettu alumiinikotelo, saatavilla mustana tai punaisena
Toiminnallisuuden ja automatisoinnin laajentaminen SDK paketilla (linkki alla)
Laaja käyttäjäyhteisön tuki

Speksit

Tulot
Multi-Use (A/D/Both)	8
Input Resistance	1 MΩ
Input Capacitance	10 pF
Input Protection	± 25V
Digitaalinen
Sample Rate (max)	100 MS/s
Fastest Digital Signal	25 MHz
Sample Depth (typical)	10+ Billion
Supported Logic Levels	1.8V - 5.5V
Works with RS-232, 422/3, 485	Yes, directly
Threshold Voltages	0.6V low / 1.2V high
Analoginen
Sample Rate (max)	10 MS/s
Bandwidth (-3dB)	1 MHz
Number of bits	10 bits
Input Voltage Range	0 V to 5 V
Attenuation @ Nyquist	-50 dB or better
Channel-Channel Crosstalk	-50 dB or better
Toimitus
Test Lead Set	x2
Test Clips 8-Pack	x2
USB Cable and Carry Case	Yes
Fyysiset
Size	53 x 53 x 12 mm
Weight	60 g
USB
USB Type	USB 2.0

Toimitus

Logic 8 USB punainen logiikka-analysaattori, 16 kpl mittapäitä, 2x 4 mittajohtosettiä, USB kaapeli ja kantolaukku, aloitusopas englanniksi

Linkit

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Saleae
EAN 894282002155
Product path Home Measuring Instruments Electronic Measuring Instruments Logic Analyzers Saleae Logic 8 Red
SKU SAL-00112
Attributes
- Channels 8
- Weight 60g
- Manufacturer's model Saleae Logic 8 USB Logic Analyzer, Red (SAL-00112)
- Click for more details https://www.saleae.com/
- Dimensions 53 x 53 x 12 mm
- Extended warranty 3 years
