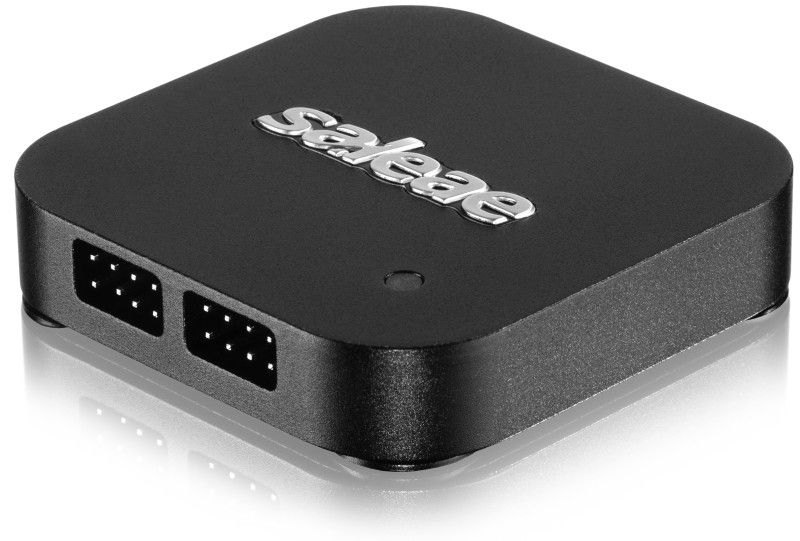

Saleae Logic 8 Black

Name: Saleae Logic 8 Black
Brand: Saleae
SKU: SAL-00111
Price: 601.15 EUR
Availability: InStock

Temporarily out of stock

SKU#: SAL-00111

Saleae Logic 8 Black

Temporarily out of stock

SKU#: SAL-00111

Saleae Logic 8 is an eight-channel logic analyzer with top-tier software. Debug with the world’s most popular tool and instantly see the true nature of bus protocols. Comprehensive system support: Win, Mac, Linux.

601,15 €

Made to order, delivery time usually 7-14 days

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Ominaisuudet

Tunnetusti helppokäyttöinen ohjelmisto, ladattavissa natiivina useille käyttöjärjestelmille: Windows, OSX, Linux
Toteutus perustuu suorituskykyiseen Xilinx Spartan 6 FPGA piiriin
Jokaista kanavaa on mahdollista samplata digitaalisesti tai analogisesti A/D muuntimella
Tukevan tyylikäs koneistettu alumiinikotelo, saatavilla mustana tai punaisena
Toiminnallisuuden ja automatisoinnin laajentaminen SDK paketilla (linkki alla)
Laaja käyttäjäyhteisön tuki

Speksit

Tulot
Multi-Use (A/D/Both)	8
Input Resistance	1 MΩ
Input Capacitance	10 pF
Input Protection	± 25V
Digitaalinen
Sample Rate (max)	100 MS/s
Fastest Digital Signal	25 MHz
Sample Depth (typical)	10+ Billion
Supported Logic Levels	1.8V - 5.5V
Works with RS-232, 422/3, 485	Yes, directly
Threshold Voltages	0.6V low / 1.2V high
Analoginen
Sample Rate (max)	10 MS/s
Bandwidth (-3dB)	1 MHz
Number of bits	10 bits
Input Voltage Range	0 V to 5 V
Attenuation @ Nyquist	-50 dB or better
Channel-Channel Crosstalk	-50 dB or better
Toimitus
Test Lead Set	x2
Test Clips 8-Pack	x2
USB Cable and Carry Case	Yes
Fyysiset
Size	53 x 53 x 12 mm
Weight	60 g
USB
USB Type	USB 2.0

Toimitus

Logic 8 USB musta logiikka-analysaattori, 16 kpl mittapäitä, 2x 4 mittajohtosettiä, USB kaapeli ja kantolaukku, aloitusopas englanniksi

Linkit

Product Information

Availability Made to order, delivery time usually 7-14 days
Manufacturer Saleae
EAN 894282002148
Product path Home Measuring Instruments Electronic Measuring Instruments Logic Analyzers Saleae Logic 8 Black
SKU SAL-00111
Attributes
- Color musta
- Channels 8
- Weight 60g
- Manufacturer's model Saleae Logic 8 USB Logic Analyzer, Black (SAL-00111)
- Click for more details https://www.saleae.com/
- Dimensions 53 x 53 x 12 mm
- Extended warranty 3 years
