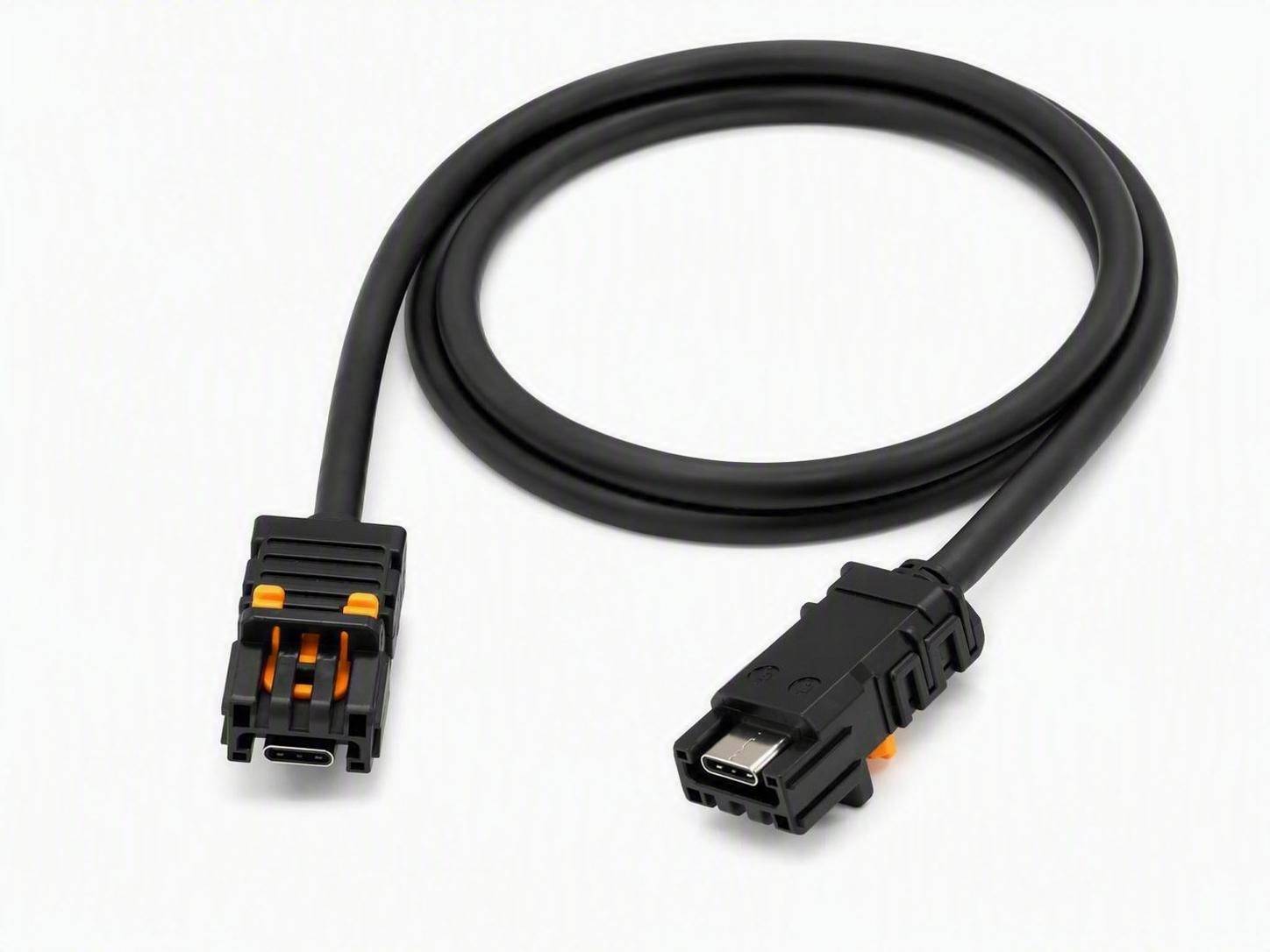

Hirose AU1MSS-24S-1000-C(805) USB Type-C® cable 1 m, USB 3.2 Gen 2
The Hirose AU1MSS-24S-1000-C(805) is a high-quality USB cable designed for demanding automotive applications, enabling up to 10 Gbit/s data transfer and up to 5 A charging current. The cable is fitted with Hirose AU1-series connectors on both ends and is intended for use with compatible AU1-series systems.
⚠ Important compatibility note
This cable is compatible only with Hirose AU1-series mating connectors. The connectors are not standard USB Type-C connectors, but special Hirose AU1-series connectors designed for automotive use. The product is not suitable for use with regular USB Type-C devices or cables.
Features
- Hirose AU1-series cable assembly
- USB 3.2 Gen 2 support
- Data transfer speeds up to 10 Gbit/s
- Supports simultaneous data and power delivery
- Current rating up to 5 A
- Shielded construction for reliable data transmission
- Designed to meet automotive requirements
- Black color
- RoHS compliant
Technical specifications
- Manufacturer: Hirose Electric
- Product family: AU1
- Manufacturer part number: AU1MSS-24S-1000-C(805)
- Connector type: Hirose AU1 series
- Connectors: AU1 male – AU1 male
- Cable length: 1.0 m
- Data transfer rate: 10 Gbit/s
- Rated current: 5 A
- Rated voltage: 20 V AC/DC
- Operating temperature: -40 ... +105 °C
- Color: Black
Applications
The product is suitable for vehicle infotainment systems, telematics devices, industrial systems, and other applications that use the Hirose AU1-series connector system and require reliable high-speed data transmission.
