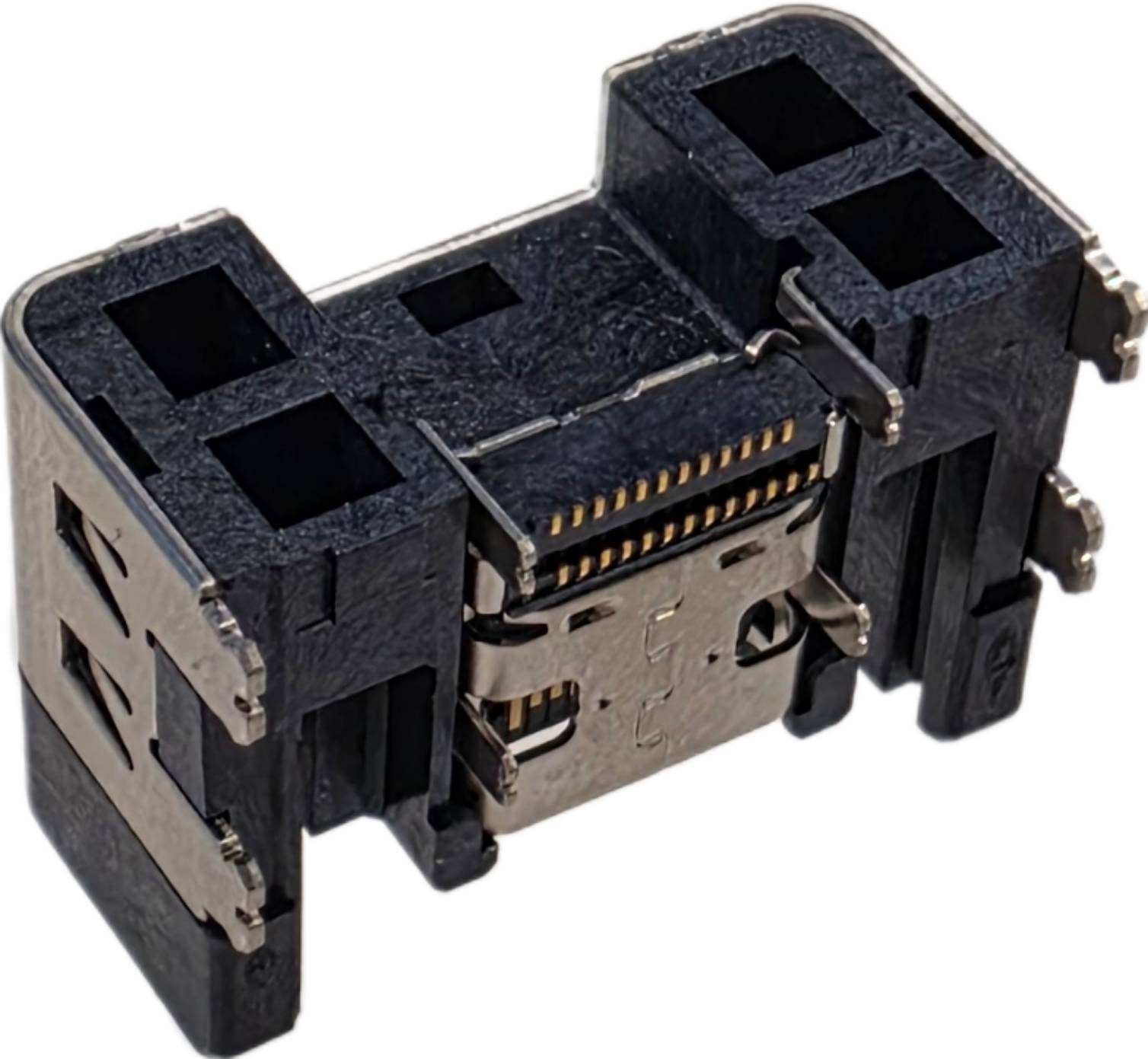

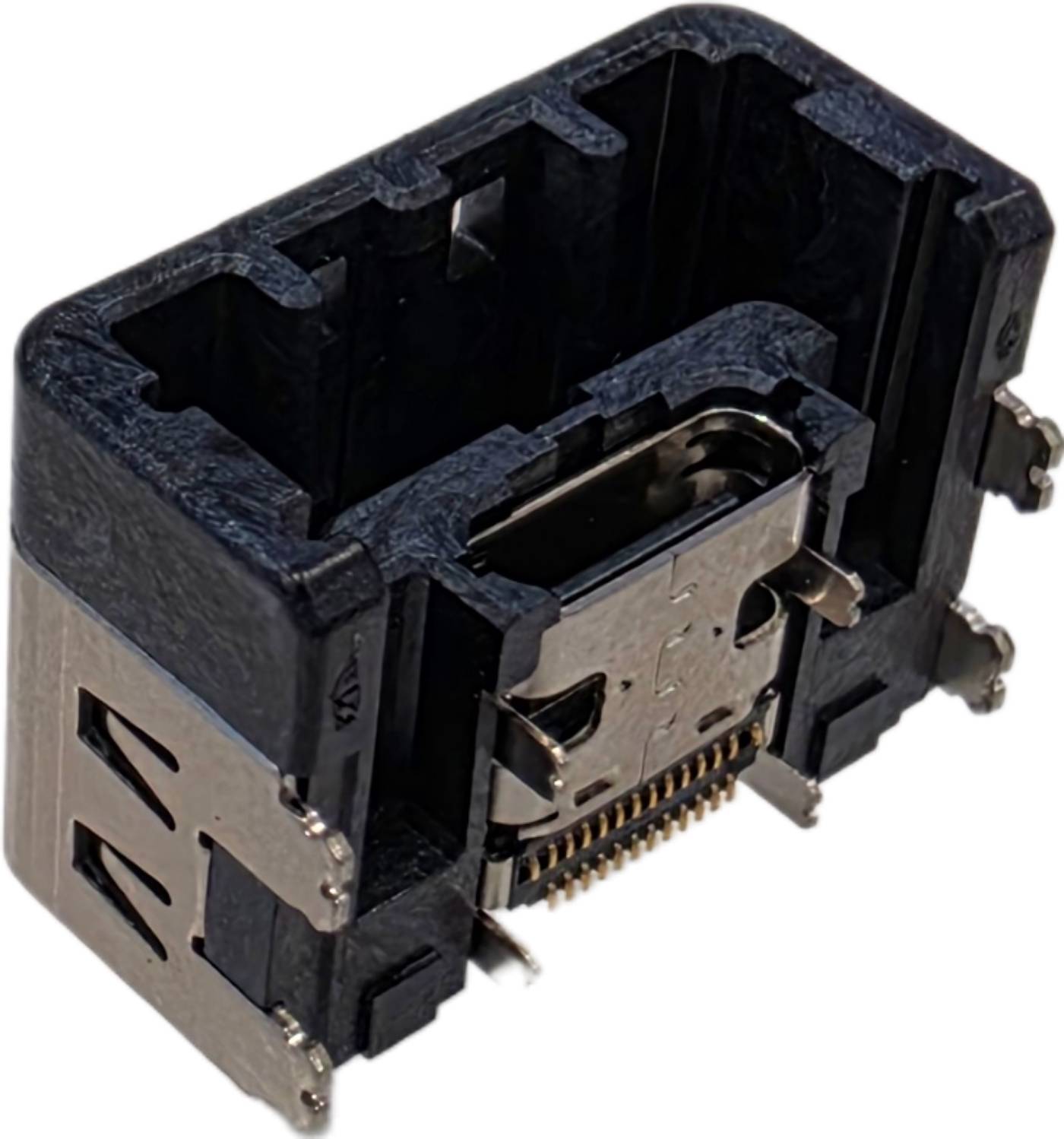

Hirose AU1FR-24P(805) USB Type-C connector module for SMT mounting

The Hirose AU1FR-24P(805) is an AU1-series USB Type-C connector module designed for surface-mount (SMT) electronic applications. The design integrates the USB Type-C connector into a shielded and mechanically reinforced housing solution, suitable especially for devices requiring a durable connection and high mating density.

The connector supports the 24-pin connectivity specified by the USB Type-C standard and provides a reliable electrical connection along with good mechanical robustness. The metal shielding reduces EMC interference and improves the long-term reliability of the assembly.

Features

• Manufacturer: Hirose Electric
• Series: AU1
• Part number: AU1FR-24P(805)
• Connector type: USB Type-C
• Number of pins: 24
• Mounting: SMT (Surface Mount Technology)
• Shielded metal housing
• Compact design for space-saving applications
• Designed for reliable data and power transmission
• Suitable for industrial, measurement, telecommunications, and embedded devices

Applications

• Industrial electronics
• Embedded systems
• Telecommunications and networking equipment
• Measurement and test instruments
• Portable and compact electronic devices
• Devices utilizing USB Type-C interfaces
