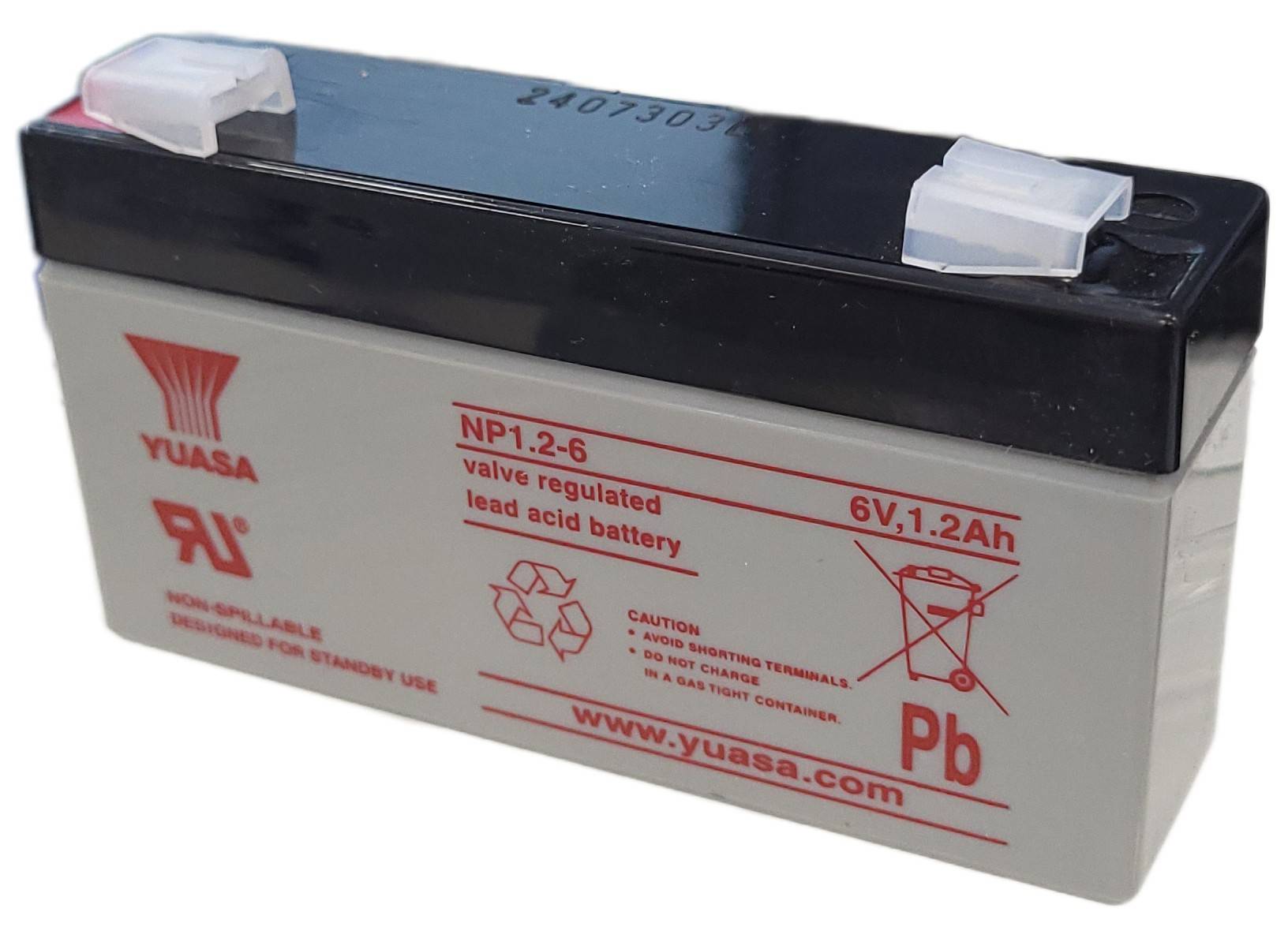

NP1.2-6 6V 1.2Ah AGM lead-acid battery (VRLA)

NP1.2-6 is a maintenance-free, sealed lead-acid battery (VRLA / AGM) suitable for backup power and light cyclic applications. Its compact size, reliable performance and long shelf life make it a versatile battery for industrial and electronic uses.

Technical specifications

• Voltage: 6 V
• Capacity: 1.2 Ah (20h)
• Technology: AGM / VRLA (sealed lead-acid)
• Dimensions: 97 x 25 x 54.5 mm
• Weight: ~0.31 kg
• Terminals: Faston F1 (4.8 mm blade connector)
• Internal resistance: ~60 mΩ
• Max. discharge current: ~12 A
• Operating temperature: -20…+60 °C

Features

• Maintenance-free and leak-proof design
• AGM technology – high reliability and energy efficiency
• Can be installed in almost any orientation
• Low self-discharge (~3% / month)
• Good recovery from deep discharge
• Design life up to 3–5 years

Applications

• UPS and backup power systems
• Alarm and security systems
• Emergency lighting
• Measuring instruments and electronics
• Small backup and battery packs

Compatibility

Suitable to replace other 6V / 1.2Ah AGM batteries with Faston F1 connectors and matching dimensions.
