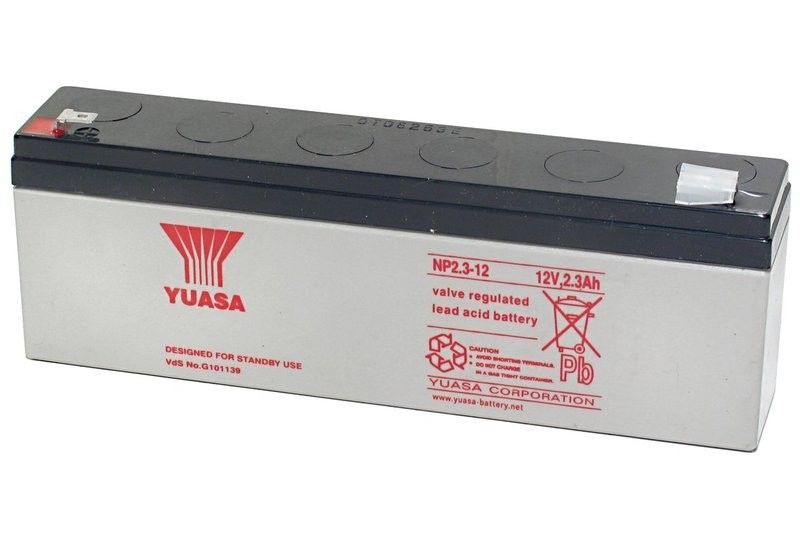

Yuasa NP2.3-12 12V 2,3Ah AGM lead-acid battery

The Yuasa NP2.3-12 is a maintenance-free, AGM technology-based valve-regulated lead-acid (VRLA) battery suitable for alarm and security systems, access control devices, emergency lighting, UPS systems and other small backup power applications.

Features

• Voltage: 12 V
• Capacity: 2,3 Ah
• AGM VRLA construction
• Maintenance-free operation
• Leak-proof design
• Low self-discharge
• Suitable for standby and light cyclic use
• Can be installed in most orientations

Technical specifications

• Manufacturer: Yuasa
• Model: NP2.3-12
• Nominal voltage: 12 V
• Nominal capacity: 2,3 Ah
• Dimensions (L × W × H): 178 × 34 × 64 mm
• Weight: approx. 0,94 kg
• Terminal type: Faston 4,8 mm
• Internal resistance: approx. 155 mΩ
• Maximum discharge current: 16,1 A
• Designed service life: 3–5 years

Applications

• Alarm and security systems
• Access control devices
• Emergency lighting
• UPS systems
• Telecommunication equipment
• Measurement and testing equipment
• Small backup power systems

Package contents

• 1 × Yuasa NP2.3-12 12 V / 2,3 Ah AGM lead-acid battery
