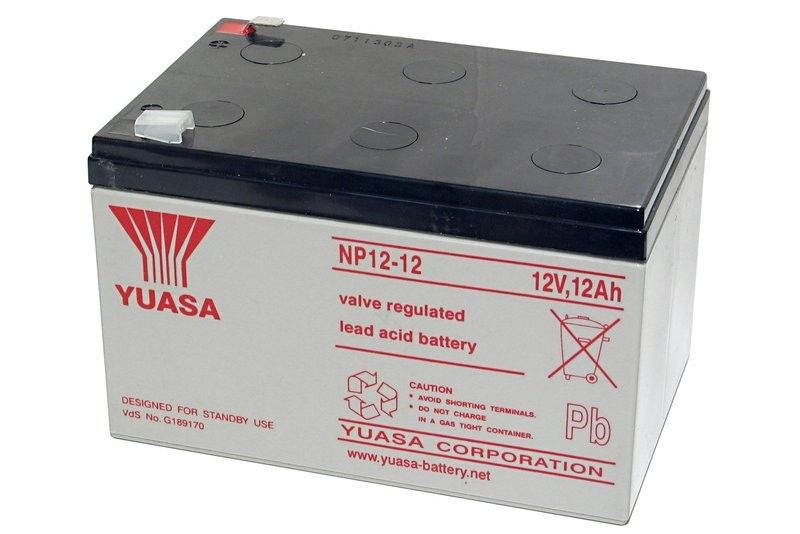

Yuasa 12V 12Ah SEALED LEAD ACID BATTERY

out of stock

SKU#: NP12-12

Yuasa 12V 12Ah SEALED LEAD ACID BATTERY

Yuasa 12V 12Ah SEALED LEAD ACID BATTERY

out of stock

SKU#: NP12-12

Quantity discount

Quantity (kpl)		Price
10+	undefined%	65,03 € / pcs

72,28 €

Temporarily out of stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Nominal voltage (V) 12
20-hour capacity to 10.5 V at 20 °C (Ah) 12
10-hour rate capacity to 10.8 V at 20 °C (Ah) 11.1
Length (mm) 151 (±1)
Width (mm) 98 (±1)
Height above terminals (mm) 97.5 (±2)
Mass (kg) 4.05
FASTON - Quickfit / release (JST, if specified) 6.35
Operating temperature range
Storage (fully charged) -20°C - +60°C
Charging -15°C - +50°C
Discharging -20°C - +60°C
Capacity loss per month at 20°C (approx. %) 3
Case material Standard ABS (UL94:HB)
Float charge voltage at 20°C (V) / Block 13.65 (±1%)
Float charge voltage at 20°C (V) / cell 2.275 (±1%)
Float Chg - voltage temperature compensation from std at 20°C (mV) -3
Cyclic (or Boost) charge voltage at 20°C (V) / Block 14.5 (±3%)
Cyclic (or Boost) charge voltage at 20°C (V) / cell 2.42 (±3%)
Cyclic charge voltage temperature compensation from std at 20°C (mV) -4
Charging current
Float charge current limit (A) No limit
Cyclic (or Boost) charge current limit (A) 3
Maximum discharge current
1 second (A) 360
1 minute (A) 75

Product Information

Availability Temporarily out of stock
Manufacturer Yuasa
Product path Home Batteries and Cells Lead Gel Batteries Yuasa 12V 12Ah SEALED LEAD ACID BATTERY
SKU NP12-12
Attributes
- Voltage class 12V
- Weight 4.1kg
- Manufacturer's model NP 12-12
- Dimensions 98 x 151 x 98 mm
