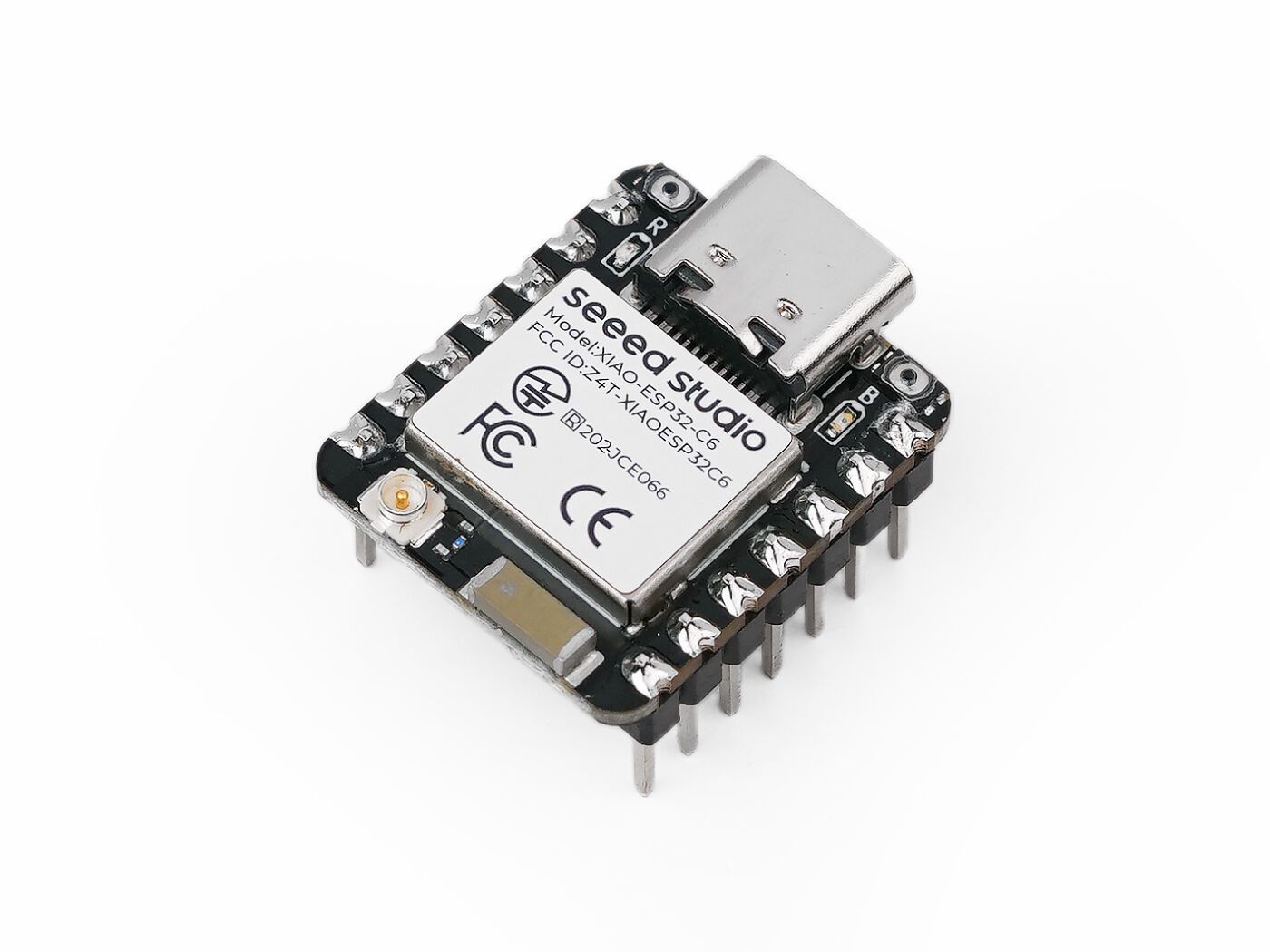

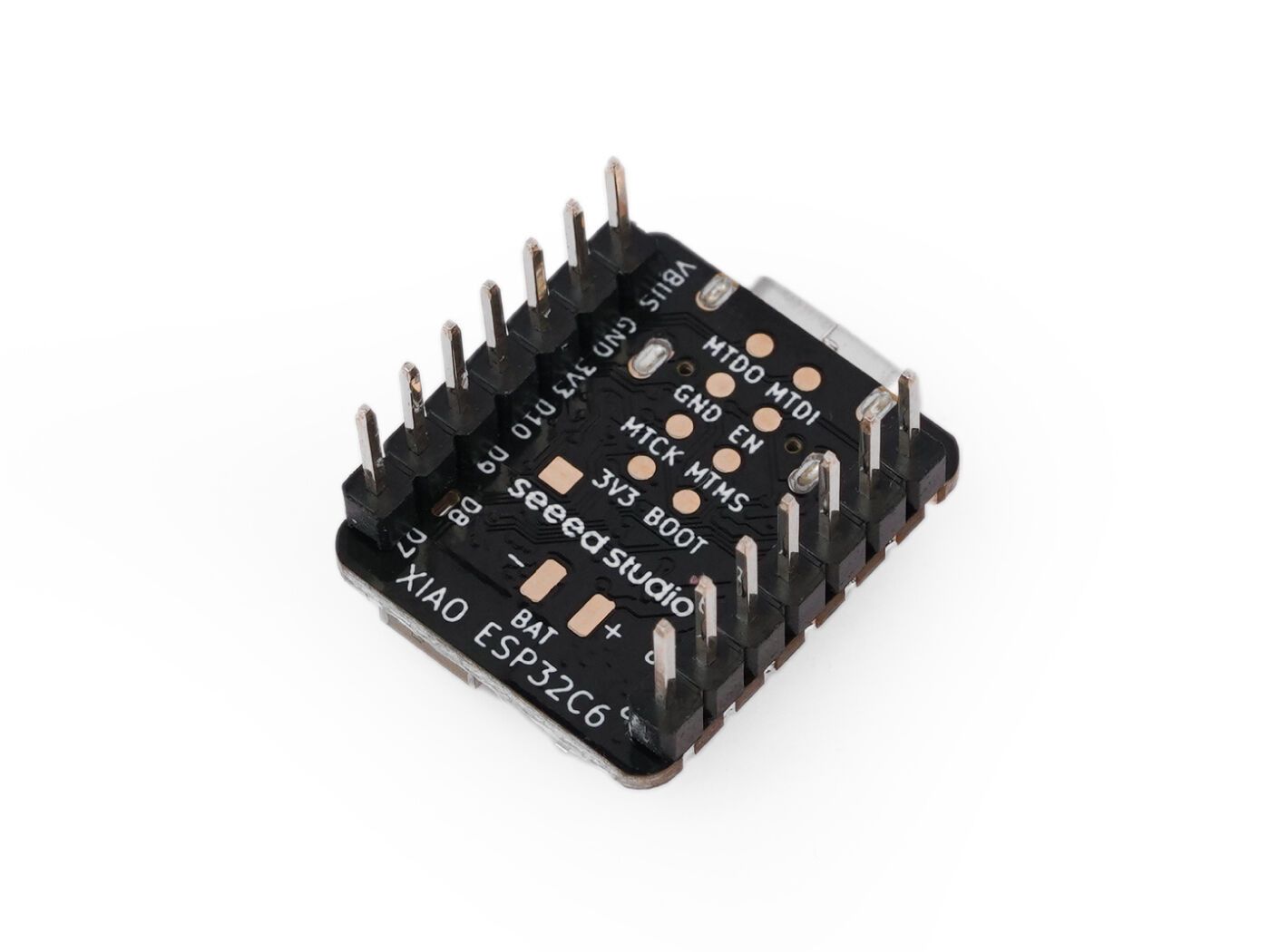

Seeed Studio XIAO ESP32-C6 is a modern and very compact development board based on the Espressif ESP32-C6 system-on-chip. It supports 2.4GHz Wi-Fi 6 (802.11ax), Bluetooth 5 LE and IEEE 802.15.4 connectivity, enabling Zigbee-, Thread- and Matter-compatible smart home solutions.
High-quality RF design and an on-board integrated antenna provide up to 80 meters of wireless range. The board also features a connector for an external U.FL antenna for more demanding use cases.
The platform has two 32-bit RISC-V processors: a high-performance core up to 160 MHz and a low-power core at 20 MHz. Memory includes 512 KB SRAM and 4 MB Flash, which is sufficient for versatile IoT and embedded applications.
XIAO ESP32-C6 supports lithium battery charging management and offers four power modes. In deep sleep mode, power consumption is only 15 μA, making it an excellent choice for battery-powered and long-lived devices.
The classic XIAO form factor, 21 x 17.8 mm size and single-sided SMD construction make the board ideal for space-constrained projects such as wearables and smart home components.
ESP32-C6 provides hardware-based security features like Secure Boot, encryption and a Trusted Execution Environment (TEE). It integrates seamlessly with cloud services such as AWS IoT, Microsoft Azure and Google Cloud.
Features
-
Powerful MCU: Dual-core 32-bit RISC-V processor (160 MHz + 20 MHz).
-
Advanced wireless connectivity: Wi-Fi 6, Bluetooth 5 LE, Zigbee and Thread.
-
Matter support: Designed for Matter-compatible smart home devices.
-
Low power consumption: Deep Sleep mode down to 15 μA.
-
Compact size: Classic XIAO form factor (21 x 17.8 mm).
Technical Specifications
-
Processor: Espressif ESP32-C6, dual-core 32-bit RISC-V, up to 160 MHz.
-
Memory: 512 KB SRAM and 4 MB Flash.
-
Wireless connectivity: 2.4GHz Wi-Fi 6, Bluetooth 5 LE, Zigbee, Thread (802.15.4).
-
Interfaces: 1x UART, 1x LP_UART, 1x I2C, 1x LP_I2C, 1x SPI, 11x GPIO (PWM), 7x ADC, 1x SDIO.
-
Power consumption (3.8V): Modem Sleep ~30 mA, Light Sleep ~2.5 mA, Deep Sleep ~15 μA.
-
Operating temperature: -40°C – 85°C.
Package includes
Links
XIAO ESP32-C6 Wiki
