xGPON Power Meter 1270/1310/1490/1550/1577nm with SC/APC Connector

Name: xGPON Power Meter 1270/1310/1490/1550/1577nm with SC/APC Connector
Brand: Tucson Optic
SKU: TC87BW5
Price: 398.90 EUR
Availability: InStock

Temporarily out of stock

SKU#: TC87BW5

xGPON Power Meter 1270/1310/1490/1550/1577nm with SC/APC Connector

xGPON Power Meter 1270/1310/1490/1550/1577nm with SC/APC Connector

Temporarily out of stock

SKU#: TC87BW5

398,90 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

widely used in 10GEPON/XGPON/XGSPON- and RF-networks.

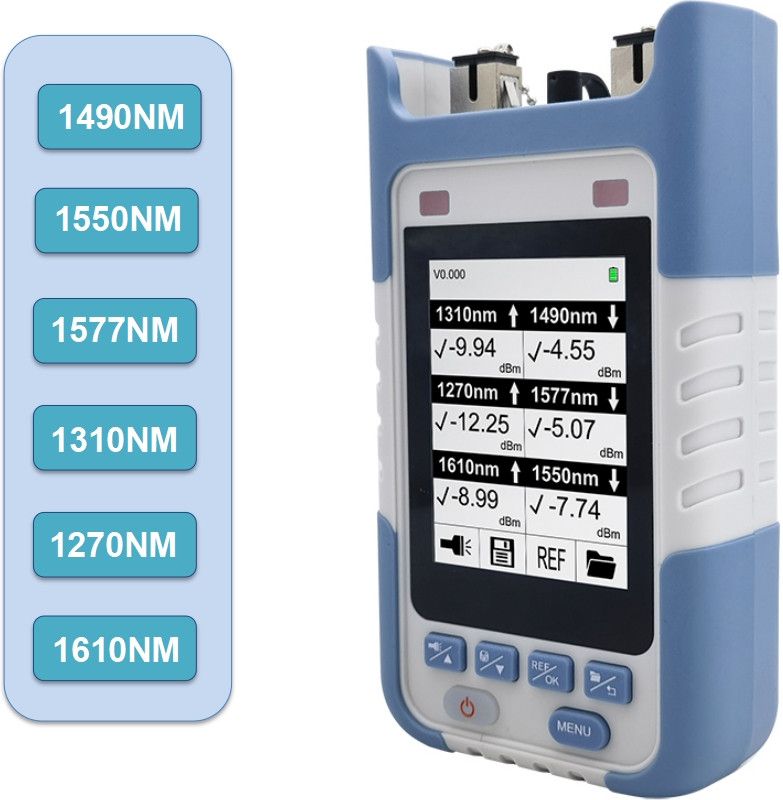

The PON system power can be tested simultaneously at up to five wavelengths: 1490 nm, 1550 nm, 1577 nm, 1310 nm, 1270 nm, 1610 nm.
Can test burst-mode uplink wavelength signals at 1310 nm, 1270 nm and 1610 nm.

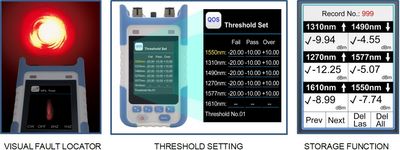

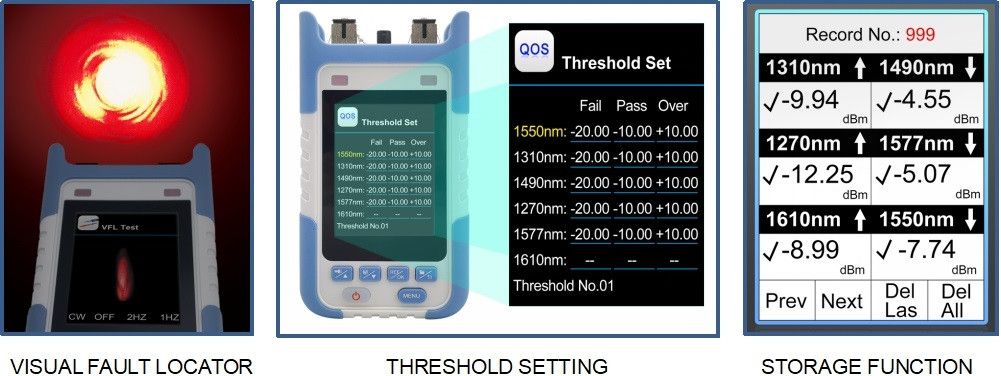

Provides 10 sets of threshold values for operator selection, analysis and display. The accept/reject relative value selection and editing function can store 1000 records.
Set threshold values manually, load data and calibrate wavelengths.
Self-calibration function.
Automatic power-off function.
Automatic backlight function.
4,2V 2400 mAh lithium battery.
USB-C charging
320x240 pixel 3,2" display

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Tucson Optic
Product path Home Measuring Instruments Network Measurement Instruments Fiber Network Measurement xGPON Power Meter 1270/1310/1490/1550/1577nm with SC/APC Connector
SKU TC87BW5
Attributes
- Connector-A SC
- Manufacturer's model TC-87B-W5
- Click for more details https://www.tucson-optic.com/product/300.html
