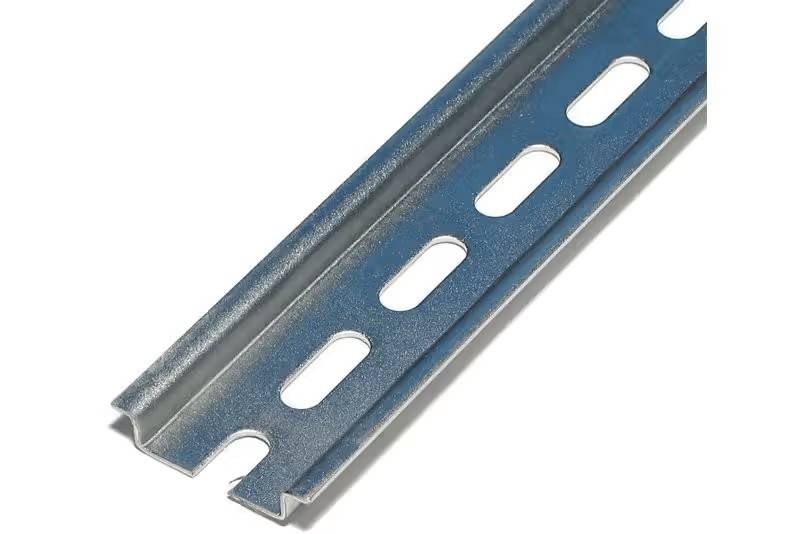

Wieland WS.005.3542 DIN rail, slotted 35 mm, 500 mm

Wieland WS.005.3542 is a slotted DIN rail compliant with standard EN 50022 for mounting components in electrical and automation cabinets. The rail is especially suitable for DIN-rail mounted terminal blocks and other devices used in industrial automation.

Features

• Standard 35 mm DIN rail (Top Hat Rail)
• Slotted design facilitates mounting
• Length 500 mm
• Height 7.5 mm
• Made of steel
• Suitable for DIN-rail mounted terminal blocks and modules
• EN 50022 / DIN 46277-3 compatible
• Compliant with RoHS requirements

Technical specifications

• Manufacturer: Wieland Electric
• Manufacturer part number: WS.005.3542
• Type: Slotted DIN rail
• Width: 35 mm
• Height: 7.5 mm
• Length: 500 mm
• Material: Steel
• Mounting hole spacing: 15 mm
• Application: DIN-rail terminal blocks and other devices mounted on DIN rail

Applications

• Electrical panels
• Control and automation cabinets
• Industrial control systems
• Mounting of terminal blocks and modules

Note: The product is delivered as a 500 mm long DIN rail. Check compatibility with the DIN-rail mounted components to be used before installation.
