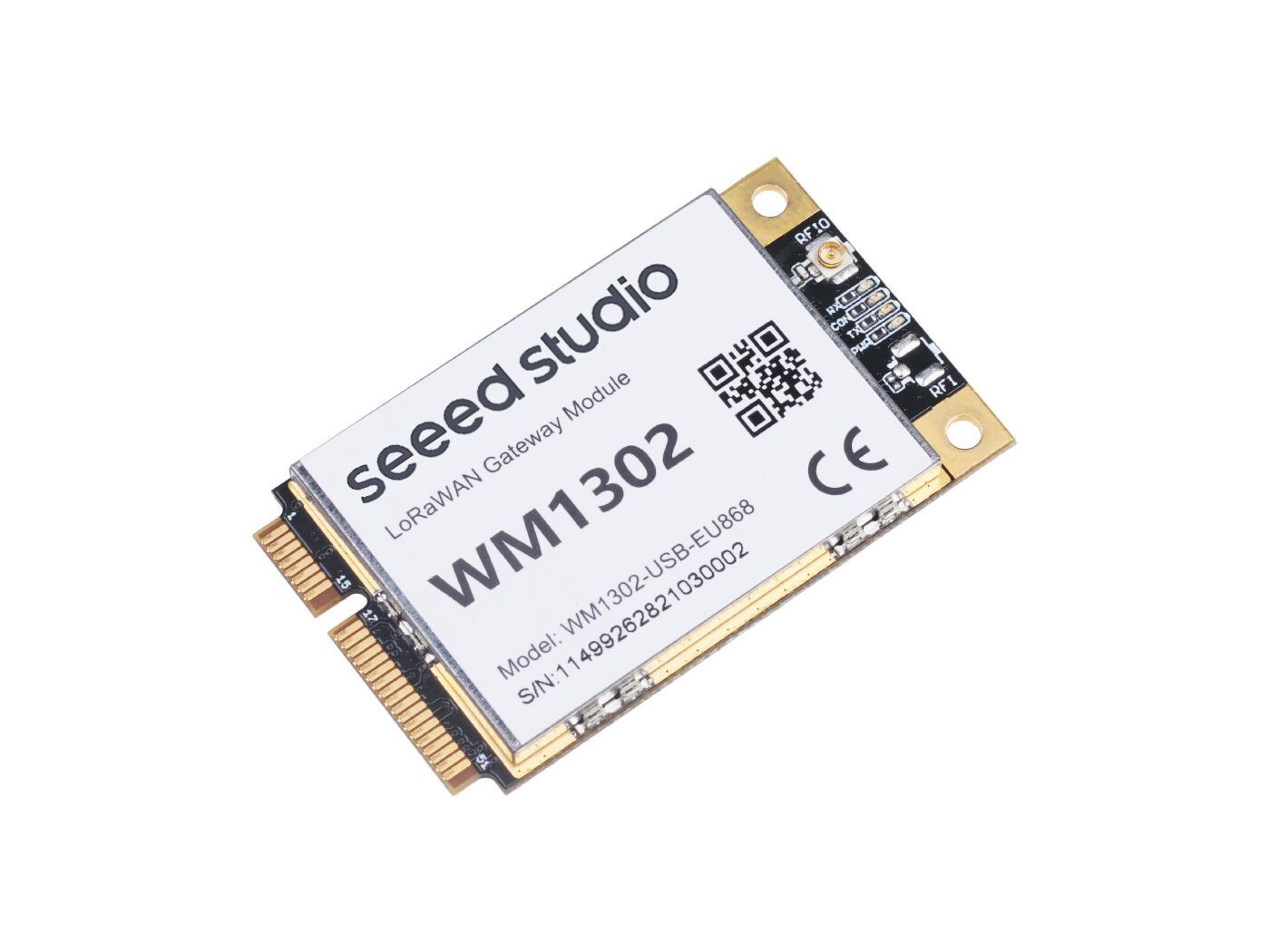

WM1302-module is a next-generation long-range gateway module in mini-PCIe form factor, based on Semtech® SX1302 technology. It has very low power consumption, delivers excellent performance and is CE-, FCC- and Telec-certified.

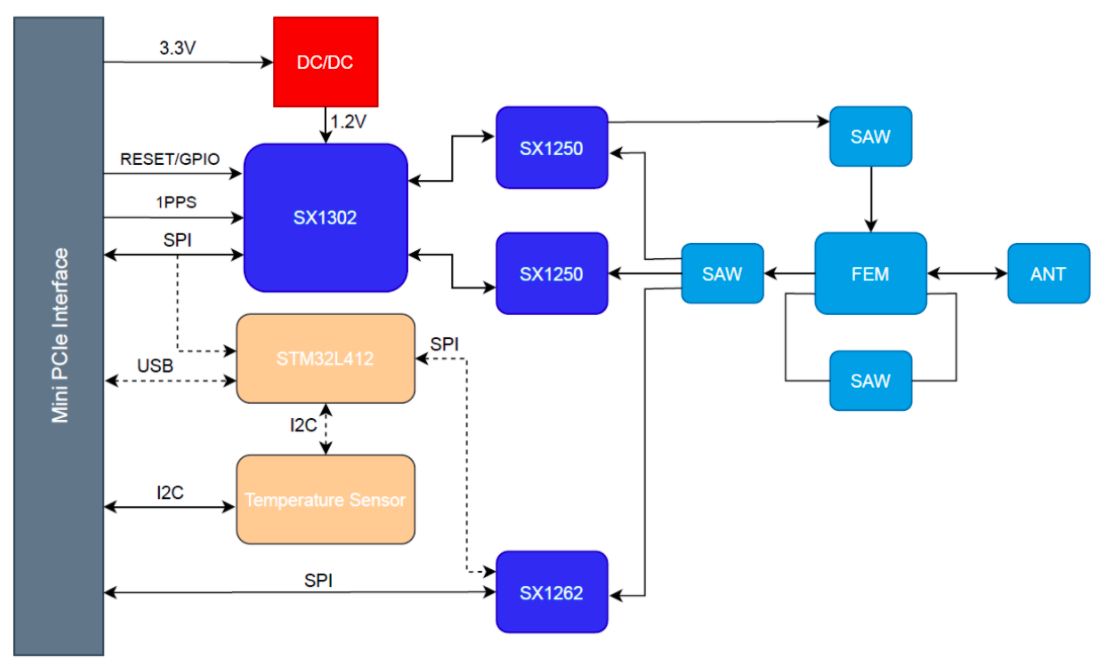

Features:
- Semtech® SX1302 baseband LoRa® chip, very low power consumption and high performance.

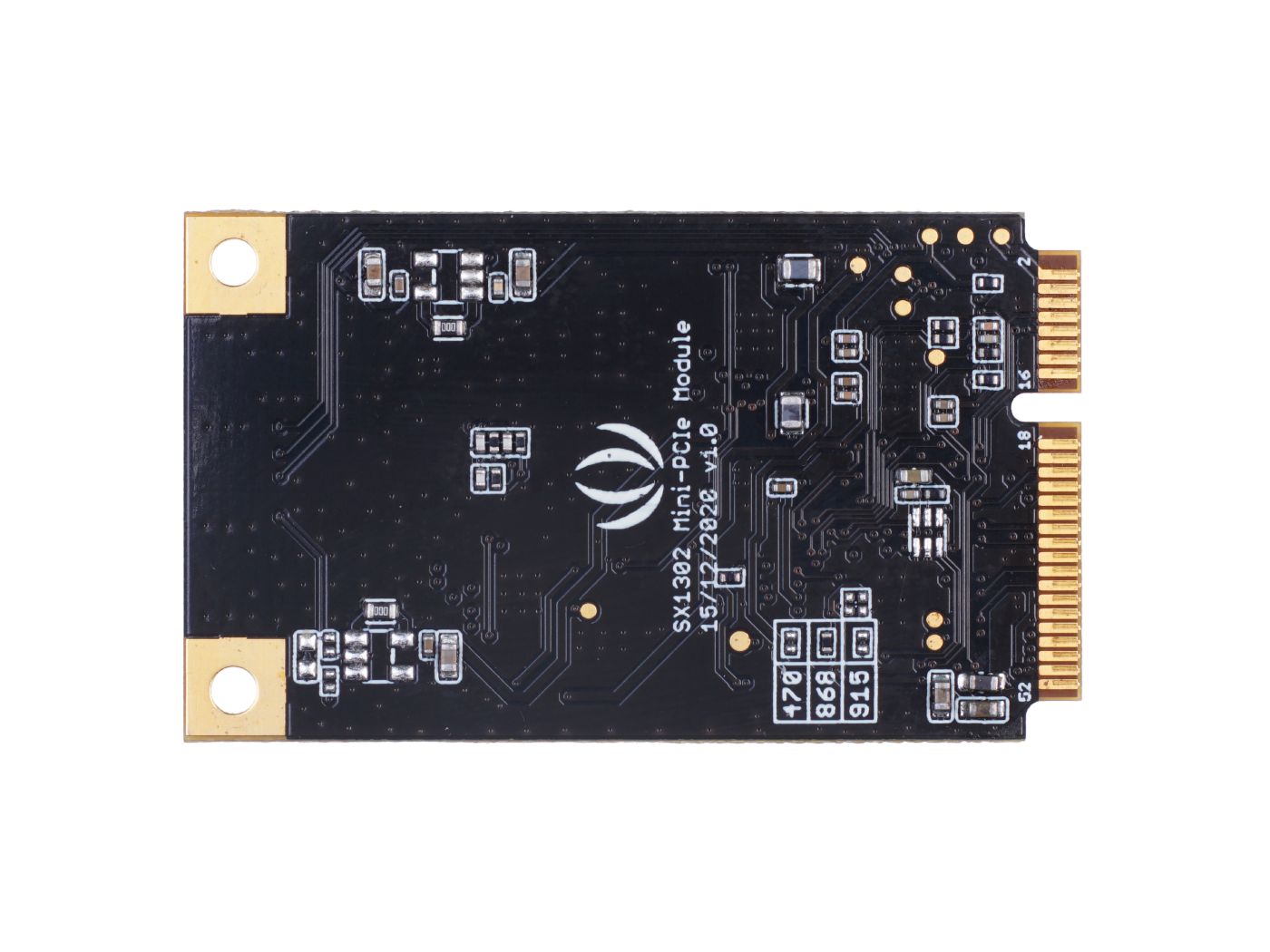

- Mini-PCIe form factor with a standard 52-pin gold connector, easy to integrate into various gateway devices.
- Very low operating temperature requirement, no additional heat dissipation needed, which reduces the size of the LoRaWAN gateway.
- High sensitivity up to -139 dBm @SF12 on SX1250 TX/RX front end; TX power up to 26 dBm @3,3 V.
- Certified with CE (EU868), FCC ID (US915) and TELEC (AS923) certificates. Simplifies end-product certification.
Technical specifications:
| Region | EU868 |
|---|
| Frequency |
863–870 MHz |
| Sensitivity |
-125 dBm @125 K/SF7
-139 dBm @125 K/SF12 |
| Transmit power |
26 dBm (with 3,3 V power supply) |
| LEDs |
Power: Green Configuration: Red TX: Green RX: Blue |
| Form |

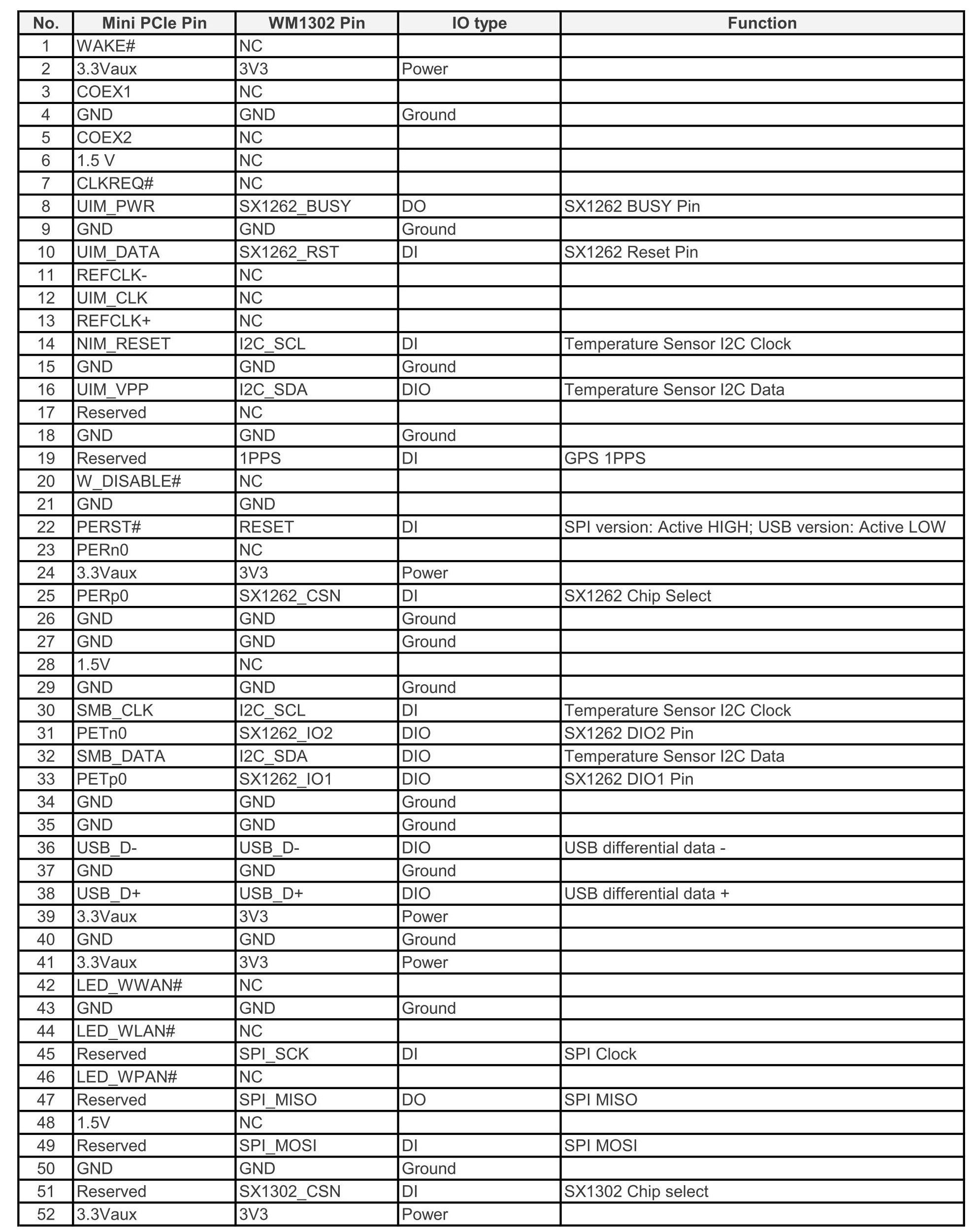

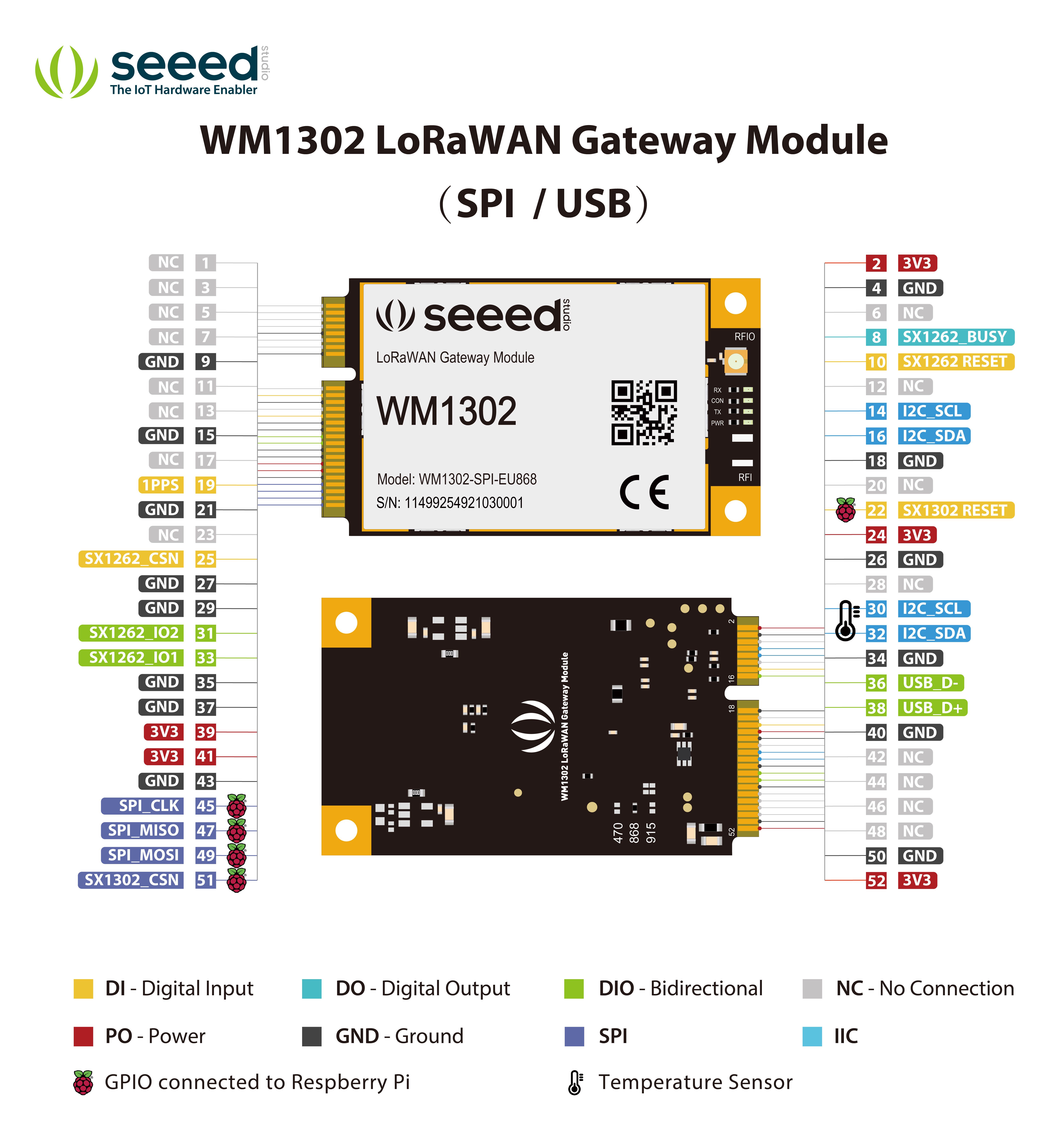

Mini PCIe, 52-pin gold connector |
| Power consumption (SPI version) |
Standby: 7.5 mA
TX max power: 415 mA
RX: 40 mA |
| Power consumption (USB version) |
Standby: 20 mA
TX max power: 425 mA
RX: 53 mA |
| LBT (Listen Before Talk) |
Supported |
| Antenna connector |
U.FL |
| Operating temperature |
-40 °C – 85 °C |
| Dimensions |
30 mm (width) × 50.95 mm (length) |
| Certification |
CE |
