STEPPER MOTOR DRIVER The package includes the stepper motor and driver board. This is a four-wire eight-step stepper motor, which you can easily control with the controller board. You can use this kit for station control. This version of the stepper motor driver is one of the most classic in the entire series, and this standard device has demonstrated popularity and versatility in a wide range of applications, including solenoids, relays, lamps, small motors, LEDs and so on.

Features

• Four-wire - eight-step stepper motor
• ULN200x, ULQ200x High-voltage, high-current Darlington transistor arrays
• From LEDs to desktop printers
• Compact size makes deployment easier
• Operates in a wide temperature range (-40°C - 105°C)
• Includes both the stepper motor and the driver board in the package

Compatibility

• Desktop printers
• Plotters
• 3d printers
• CNC milling machines

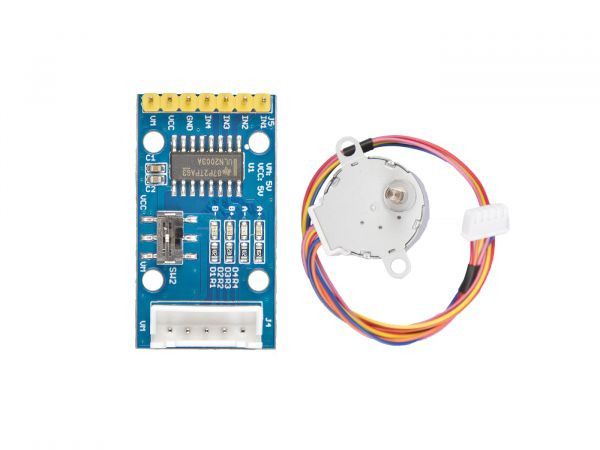

Parts list

• 1 x Motor driver board
• 1 x Stepper motor and cable

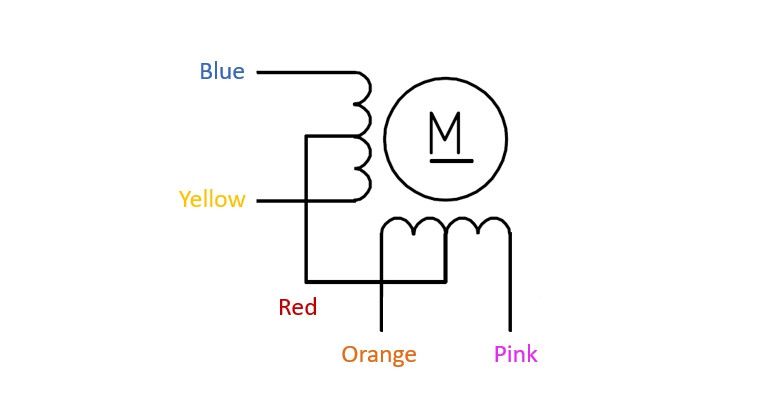

Pinout

[img-25584-left-desc_default]

[img-25585-left-desc_default]
