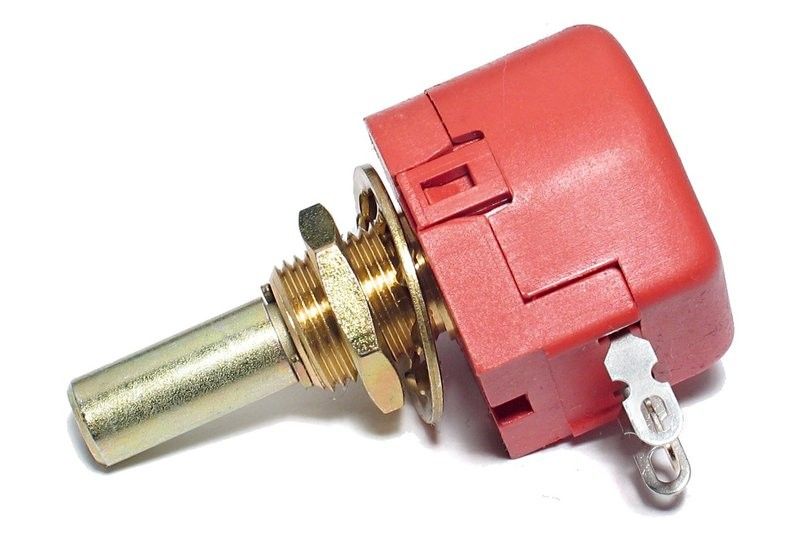

LINEAR WIRE-WOUND POTENTIOMETER MONO

• resistance: 500ohm ±10% (linearity ±2%)
• power rating: 1W / 40°C
• voltage rating: 300VDC
• number of turns: 1 (285° ±5°)
• shaft: metal Ø 6,35 x 15/25 mm
• mounting hole: Ø 10 mm - panel 6 mm
• space required in enclosure: 32/23 x 18 mm
• operating temperature: -40...+90°C
• housing with locking notch
