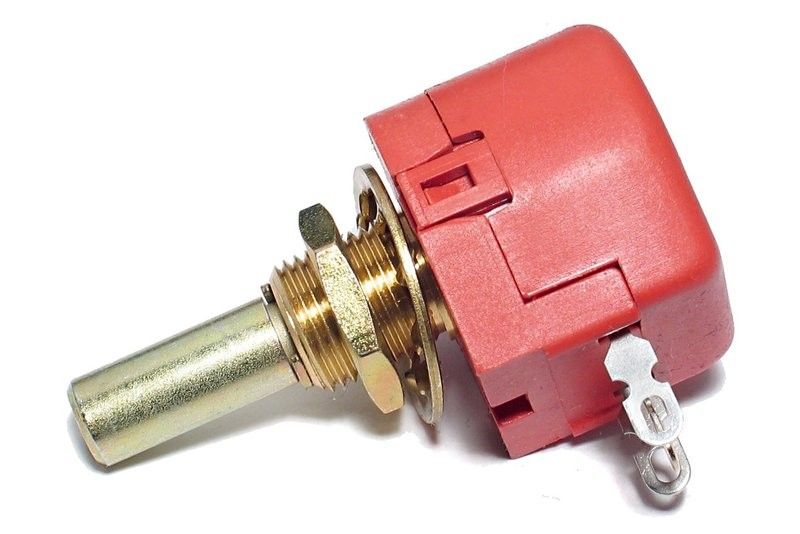

WIRE-WOUND POTENTIOMETER 6,3mm 1W LIN 25ohm
Temporarily out of stock
SKU#: P63MLINL1-25R
WIRE-WOUND POTENTIOMETER 6,3mm 1W LIN 25ohm
Temporarily out of stock
SKU#: P63MLINL1-25R
LINEAR WIREWOUND POTENTIOMETER MONO
- resistance: 25ohm ±10% (linearity ±2%)
- power rating: 1W / 40°C
- voltage rating: 300VDC
- number of turns: 1 (285° ±5°)
- shaft: metal Ø 6,35 x 15/25 mm
- mounting hole: Ø 10 mm - panel 6 mm
- space required in enclosure: 32/23 x 18 mm
- operating temperature: -40...+90°C
- body with locking notch
This product is sold out!
Would you like to buy a similar product? No worries, you can:- Buy products from the brand TT electronics (AB Elektronik)
- Or you can request product availability notifications to your email at the bottom of the page.
Product Description
Product Information
- Availability Temporarily out of stock
- Manufacturer TT electronics (AB Elektronik)
- Product path Home ComponentsPassive ComponentsPotentiometersYarn Shops WIRE-WOUND POTENTIOMETER 6,3mm 1W LIN 25ohm
- SKU P63MLINL1-25R
- Attributes
- Resistance 25ohm
- Manufacturer's model Series ABW 1
