WEMOS D1 MINI SHIELD TEMP (BMP180)

Name: WEMOS D1 MINI SHIELD TEMP (BMP180)
Brand: -
SKU: WEMOS-D1MINI-BMP180
Price: 7.20 EUR
Availability: OutOfStock

Temporarily out of stock

SKU#: WEMOS-D1MINI-BMP180

WEMOS D1 MINI SHIELD TEMP (BMP180)

Temporarily out of stock

SKU#: WEMOS-D1MINI-BMP180

D1 Mini compatible BMP180 temperature and pressure sensor add-on board.

This product is sold out!

Would you like to buy a similar product? No worries, you can:

Or you can request product availability notifications to your email at the bottom of the page.

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Description

Module with temperature / pressure sensor BMP180 from Bosch designed to work with the D1 Mini board. The BMP180 is a precision digital pressure sensor. It is characterized by very low power consumption and low voltage. It is optimized for use on mobile phones, PDA devices, GPS navigation devices and external devices. The I2C interface allows for easy integration of the system with the microcontroller.

Specs

Intended for cooperation with D1 Mini
Pressure range: 300 ... 1100 hPa
Frequency of transfer of I2C date: 3.4 MHz, max.
VDDIO power supply: 1.62 ... 3.6 V
VDD power supply: 1.8 ... 3.6 V

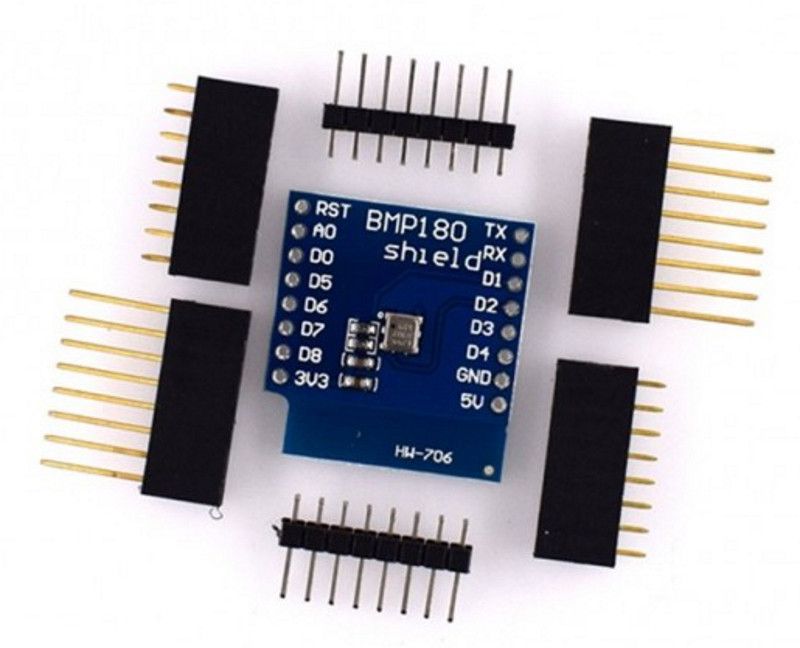

Included

Module with BMP180 sensor
8pin male gold pin connector
8pin short goldpin socket
8pin long goldpin socket
