Waveshare CM4 POE IO BOARD
Temporarily out of stock
SKU#: RPI-CM4IOW
Waveshare CM4 POE IO BOARD
Temporarily out of stock
SKU#: RPI-CM4IOW
Waveshare Compute Module 4 PoE Board - Raspberry Pi Compute Module 4 IO Board with PoE feature, for all CM4 variants.
This product is sold out!
Would you like to buy a similar product? No worries, you can:- Buy products from the brand Waveshare
- Or you can request product availability notifications to your email at the bottom of the page.
Product Description
Features
| POE | integrated 802.3af-compatible PoE circuit (5V/2.5A) |
|---|---|
| USB | 4x USB 3.2 Gen1 ports Micro-USB port |
| Ethernet | Gigabit Ethernet RJ45 with PoE support |
| Header | Color-coded 40PIN GPIO header |
| Fan | 5V / 12V standard fan connector |
| Power input | 7V~36V |
| CM4 connector | Fits all Compute Module 4 model variants. |
| RTC | Real-time clock with battery holder that can wake the Compute Module 4. |
| Video | 2x MIPI DSI display FPC connectors (22-pin cable 0.5 mm pitch). |
| Camera | 2x MIPI CSI-2 camera FPC connectors (22-pin 0.5 mm cable). |
| SD card slot | MicroSD card slot for Compute Module 4 Lite (without eMMC) variants. |
| Dimensions | 160 × 90 mm |
Connecting the Compute Module 4
Standard CM4 connector and color-coded Raspberry Pi 40PIN GPIO connector.
Fits all Compute Module 4 variants
Plentiful peripheral connectors

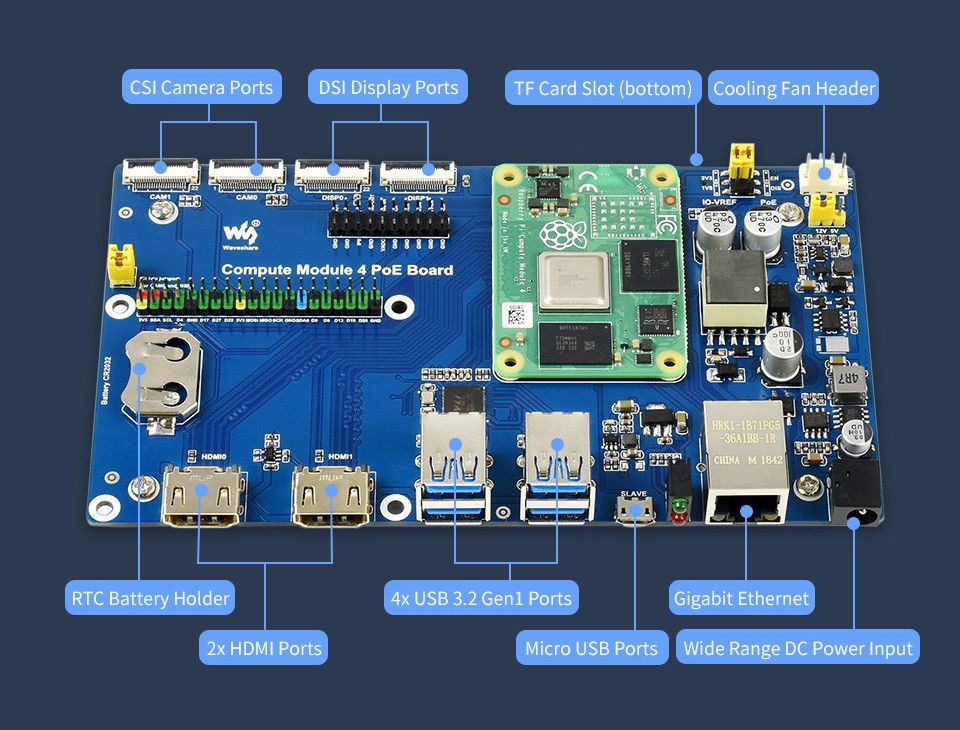

Built-in connectors including CSI/DSI/RTC/HDMI/USB/ETH/TF card.
- CM4 connector
Fits all Compute Module 4 options - Power input
Wide-range power supply 7~36V - Gigabit Ethernet jack
Gigabit Ethernet RJ45 with PoE support - USB SLAVE port
allows flashing the system image to the Compute Module 4 eMMC variant - USB3.2 ports
4x USB 3.2 Gen1 ports for connecting various USB devices - HDMI ports
2x HDMI ports, supports two 4K 30fps outputs - RTC
RTC battery holder, enables RTC-related functions such as wake, shutdown, reboot, etc. - CAM
2x MIPI CSI camera ports - DISP
2x MIPI DSI display ports - FAN
for connecting a cooling fan, allows speed control and measurement - FAN power selection
5V or 12V voltage for using the fan. - IO-VREF/PoE selection
CM4 IO logic level: 3.3V or 1.8V.
PoE: enable (EN) or disable (DIS). - 40PIN GPIO connector
- CAM0 and DISP0 I2C bus
install jumpers when using CAM0 or DISP0. - Other configurations
- Two LED indicators
red: Raspberry Pi power indicator
green: Raspberry Pi activity indicator - TF card slot (bottom)
insert a Micro SD card with a pre-flashed system to boot a Compute Module 4 Lite module.
