Note! The product is delivered without the CM4 module.

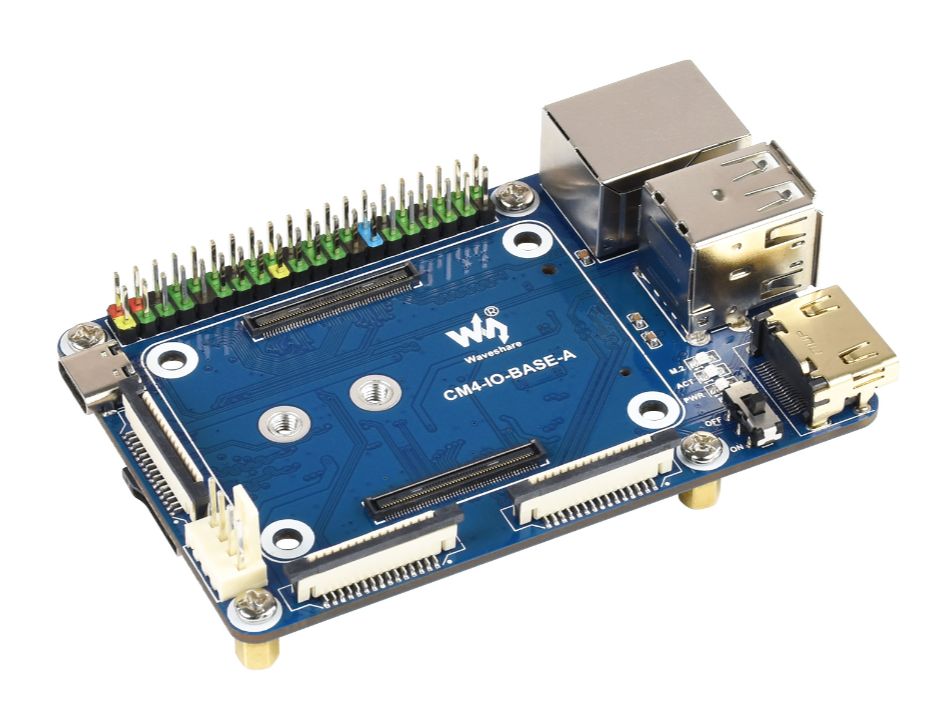

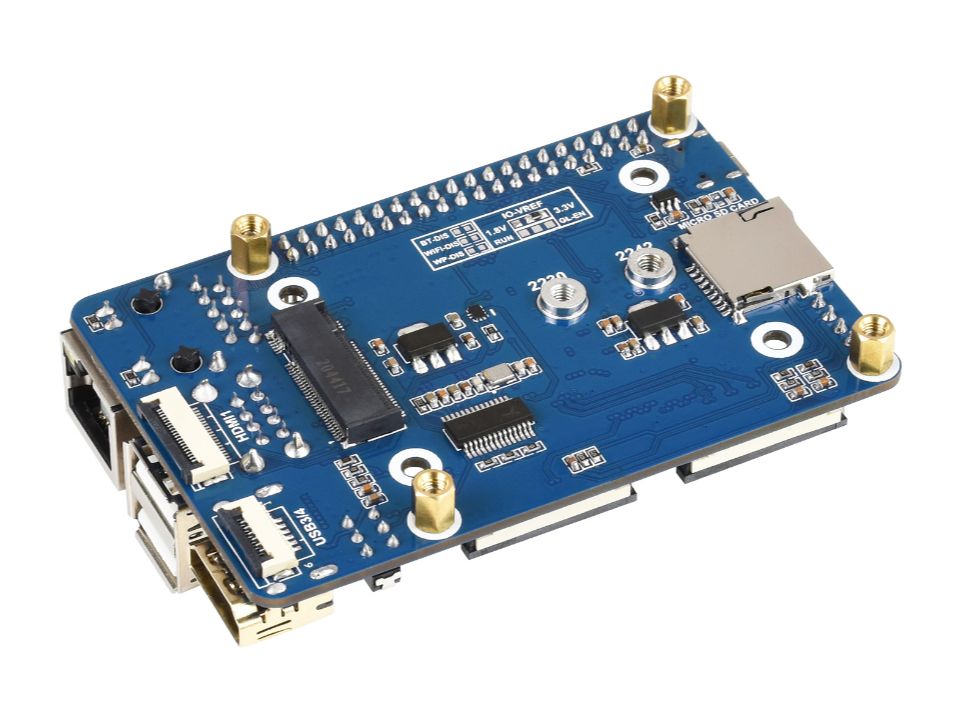

Mini Base Board for Compute Module 4. Suitable for evaluating the Raspberry Pi CM4 or integrating into end products.

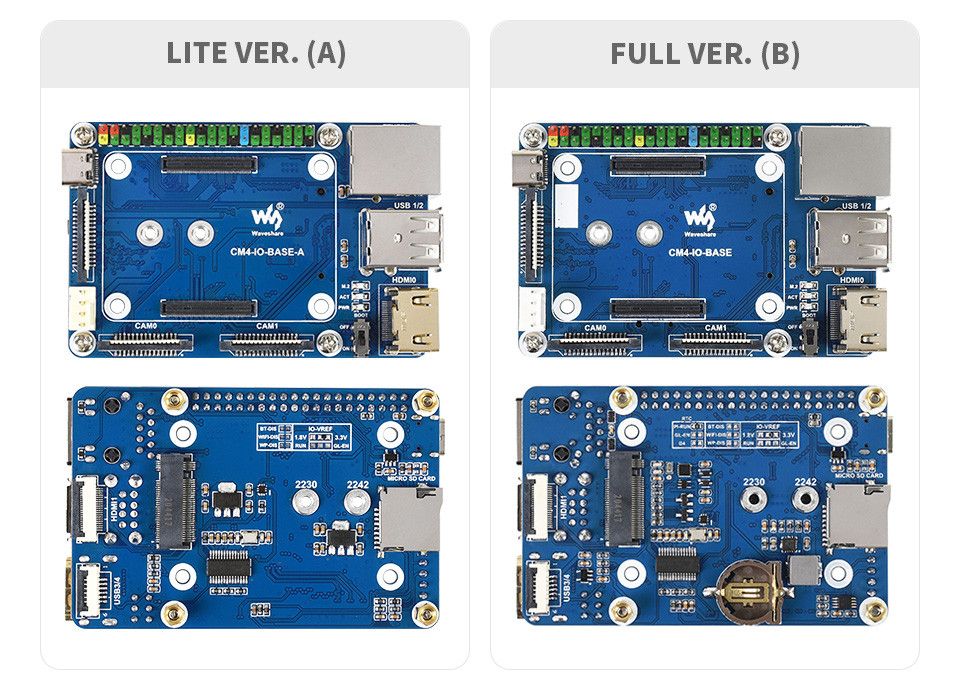

What are the differences
Except for version B, version A does NOT have a RTC, fan controller or battery holder, which is more cost-effective.
[img-26003-left-desc_default]
- Standard CM4 socket and color-coded Raspberry Pi 40PIN GPIO header.
- Fits Compute Module 4 Lite/EMMC series modules.
- Includes multiple connectors, including: USB/RJ45 Gigabit Ethernet/Micro SD card slot/M.2 slot: CSI/DSI/FAN/HDMI/USB/RJ45 Gigabit Ethernet/Micro SD card slot/M.2 slot

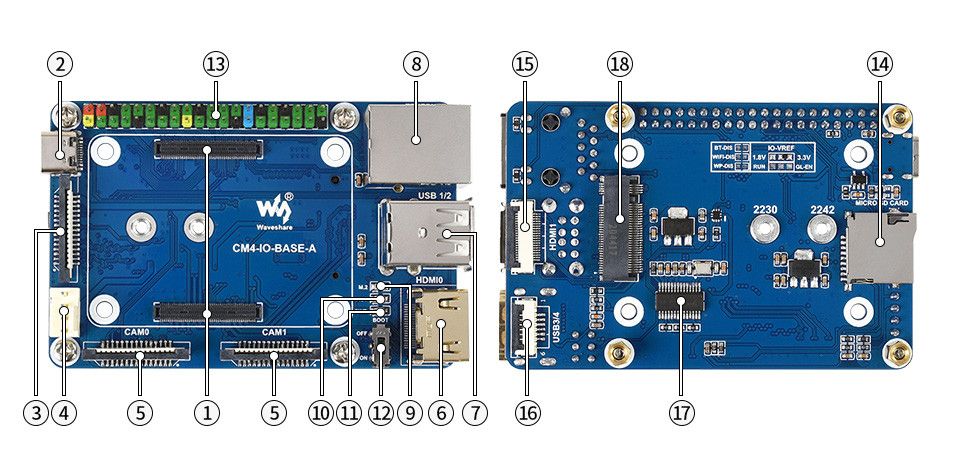

What's included
[img-26004-left-desc_default]
- CM4 connector
Fits all Compute Module 4 model variants.
- Power/programming
5V/2.5A power supply, or used for flashing eMMC
- DISP
MIPI DSI display port
- FAN
For connecting a cooling fan, allows speed control and measurement.
- CAM
2x MIPI CSI camera ports
- HDMI0 connector
HDMI0 port, supports 4K 30fps output
- USB 2.0 ports
2x USB 2.0 ports for connecting various USB devices
- Gigabit Ethernet connector
Gigabit Ethernet RJ45 connector, 10 / 100 / 1000M network support
- M.2 indicator
Indicates the operating status of the M.2 interface
- ACT indicator
Indicates the operating status of the Raspberry Pi
- PWR indicator
Indicates the power supply status of the Raspberry Pi
- BOOT selection
ON: CM4 boots from the USB-C connector.
OFF: CM4 boots from eMMC or Micro SD card.
- 40PIN GPIO connector
- Micro SD card slot
For attaching a Micro SD card with a pre-flashed image (ONLY for Lite version).
- HDMI1 FFC connector
HDMI1 port, supports 4K 30fps output
- USB 2.0 FFC connector
Can be connected via an adapter
- FE1.1S
USB HUB chip that expands one USB port into 4 ports.
- M.2 slot
Supports various NVME SSDs or communication modules with a PCIE M.2 KEY-M interface.
