Specifications

• pump size: 90 x 40 x 35 mm
• hose connections: inner diameter Ø4,9mm, end outer diameter Ø6mm, outer diameter at the base Ø8,5 mm
• operating voltage: DC12V, 0,5-0,7A (6W)
• flow approx. 1,5-2 liters per minute, suction at maximum 2m below
• can pump to 3 meters height
• service life up to 2500 hours
• for water up to 80 degrees
• includes two rubber mounts approx. 50mm screw spacing

Delivery

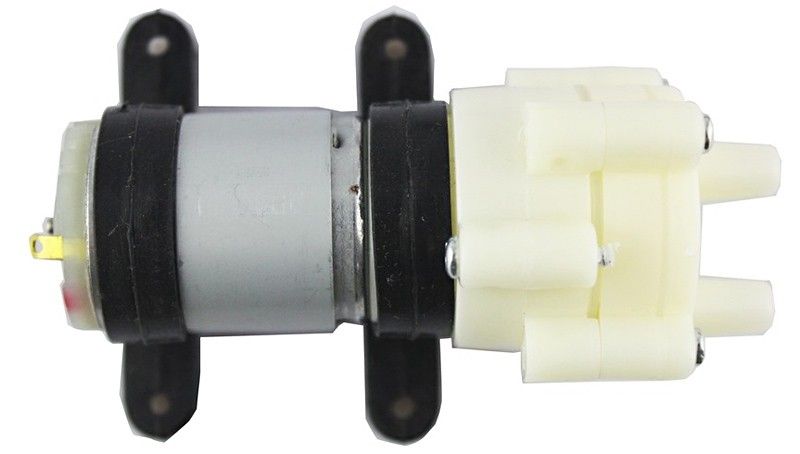

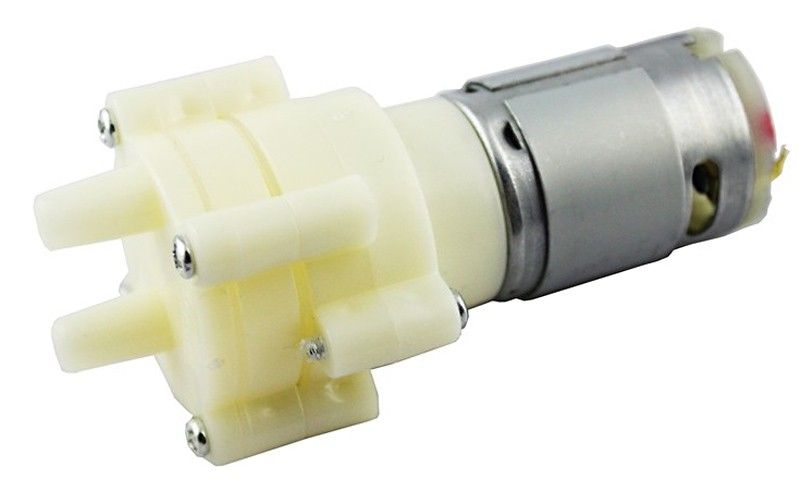

• 6-12V R385 DC Diaphragm Pump

Note! This model has solder lugs at the rear of the motor.
