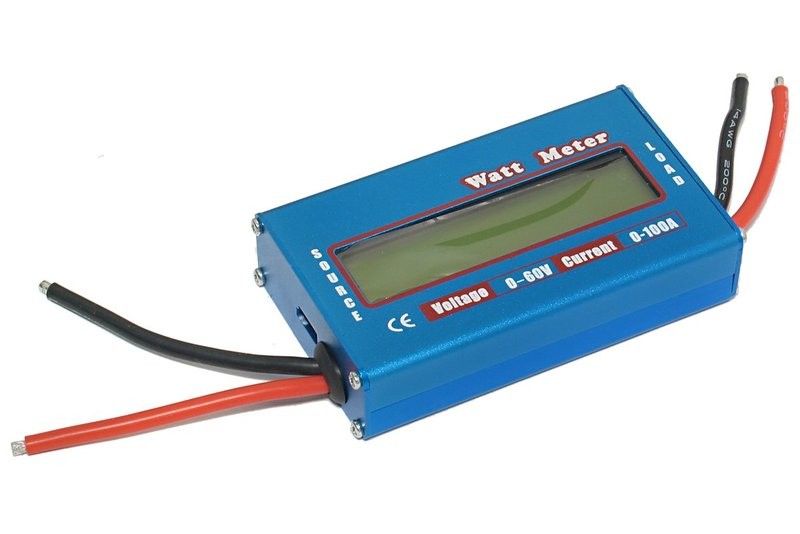

VOLTAGE/CURRENT/POWER METER 0-60V 0-100A

Temporarily out of stock

SKU#: WATT-METER

VOLTAGE/CURRENT/POWER METER 0-60V 0-100A

Noname

VOLTAGE/CURRENT/POWER METER 0-60V 0-100A

Temporarily out of stock

SKU#: WATT-METER

25,97 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

displays measurements: V / A / W / Ah / Wh
The measurement electronics and display draw their operating power (7mA) directly from the measured source (4-60V)
On the side a 3-pin pin-header connector for separate supply of operating power (0-4V)
measurable voltage: 0...60V
measurable current: max. 50A continuous, 100A momentary
measurement resolution: 0.1V / 0.1A
series resistance: 1mohm
16x2 LCD display black characters, green backlight
60 mm wires
operating temperature range: 0...50°C

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Noname
Product path Home Measuring Instruments Miscellaneous measuring instruments VOLTAGE/CURRENT/POWER METER 0-60V 0-100A
SKU WATT-METER
Attributes
- Dimensions 85 x 50 x 20 mm
