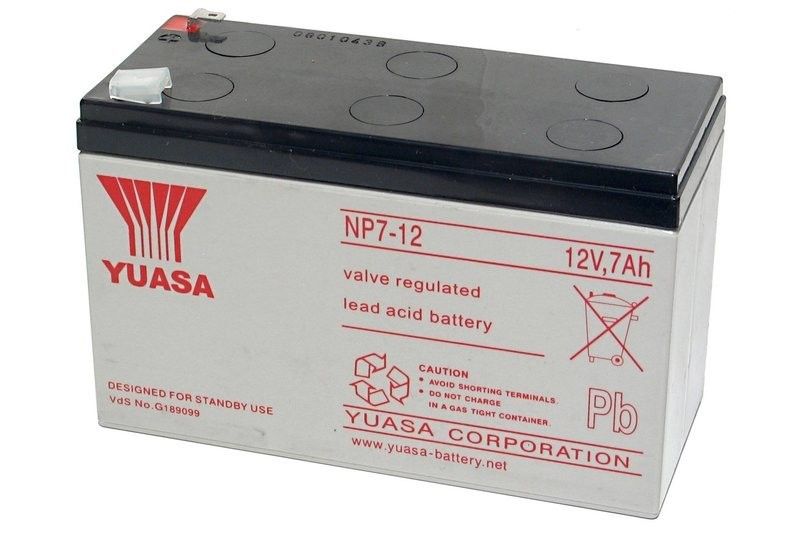

Yuasa NP7-12L 12V 7Ah AGM lead-acid battery

The Yuasa NP7-12L is a maintenance-free valve-regulated lead-acid battery (VRLA) based on AGM technology, suitable for UPS systems, alarm and security systems, access control, emergency lighting, measuring instruments and other backup power and light cyclic applications. The NP series is known for its reliability, long service life and low self-discharge.

Features

• Voltage: 12 V
• Capacity: 7 Ah
• AGM VRLA construction, leak-proof
• Maintenance-free operation
• Suitable for both standby and light cyclic use
• Can be installed in almost any orientation (not continuously upside down)
• Low self-discharge
• High reliability in UPS and security systems
• 6.3 mm Faston terminals (L version)

Technical specifications

• Manufacturer: Yuasa
• Model: NP7-12L
• Nominal voltage: 12 V
• Nominal capacity: 7 Ah
• Dimensions (W × D × H): 151 × 65 × 97.5 mm
• Weight: approximately 2.65 kg
• Terminal type: Faston 6.3 mm
• Operating temperature (discharge): -20 °C ... +60 °C
• Designed service life: 3–5 years

Applications

• UPS backup power systems
• Fire and alarm systems
• Access control and security devices
• Emergency lighting
• Measurement and testing equipment
• Telecommunication equipment
• Small solar power systems
• Marine electronics

Package contents

• 1 × Yuasa NP7-12L 12 V / 7 Ah AGM lead-acid battery
