VIBRATION SWITCH 12VDC

Name: VIBRATION SWITCH 12VDC
Brand: Kemo Electronic
SKU: KEMO-M241
Price: 4.89 EUR
Availability: InStock

Temporarily out of stock

SKU#: KEMO-M241

VIBRATION SWITCH 12VDC

Temporarily out of stock

SKU#: KEMO-M241

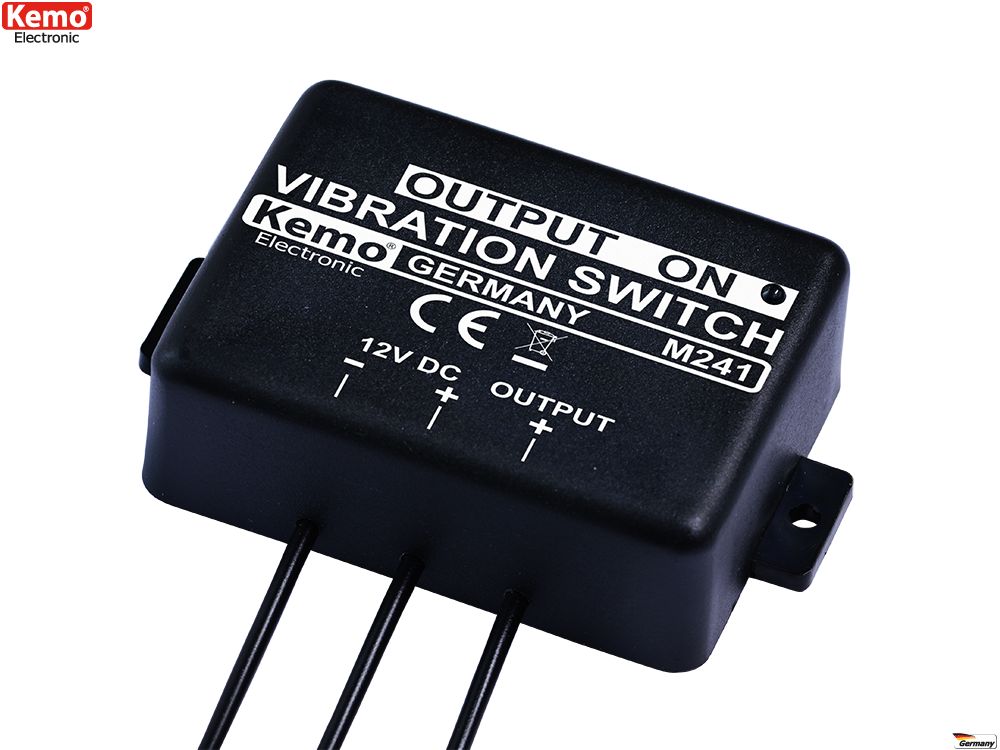

Kemo M241 - vibration or shock switch 12VDC, max. 1A. Turns the auxiliary device’s power on when the vehicle is parked and off when it is driving.

4,89 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Vibration switch that turns connected 12V devices off when vibration occurs (engine running vibration) and correspondingly turns them back on with a delay after the vibration stops.

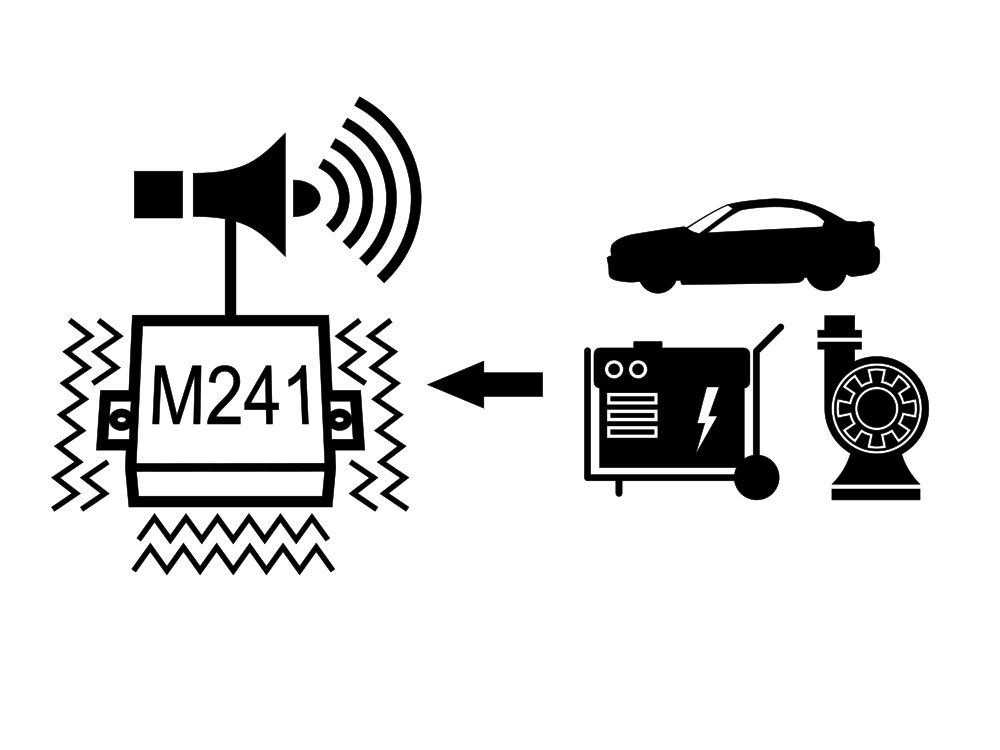

The device can be used to indicate, for example, engine shutdown with an alarm connected to it.

Features

For internal combustion engines only.
In standby (no vibration), the input voltage is connected to the output and the device connected to it receives power.
Works with 12V car electrical systems.
Status LED indicates operation.
Negligible quiescent current consumption.

Technical specifications

Operating voltage	11 - 15 V direct current
Quiescent current, vibrating	< approx. 0.000005A (< 5μA), LED off
Quiescent current, not vibrating	< approx. 0.000008A (< 8μA), LED blinking
Max. switching current	1 A (= maximum current required by the controlled device)
Turn-off delay during vibrations	approx. 3 seconds (depending on vibration intensity)
Turn-on delay after vibrations	approx. 22 seconds
Switching sensitivity	generally tuned to the oscillations of an internal combustion engine
Operating temperature	approx. -20°C - +70°C
Dimensions	approx. 60 x 45 x 20 mm (without mounting ears)

Installation instructions

Always use a fuse between the device and the battery, Kemo M241, do not connect directly to the battery terminals. The recommended value is 1A.

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Kemo Electronic
EAN 4024028032412
Product path Home Do It Yourself Building Kits Kemo ready-made modules VIBRATION SWITCH 12VDC
SKU KEMO-M241
Attributes
- Manufacturer's model M241
- Click for more details https://www.kemo-electronic.de/en/House/Security/Alarm/M241-Vibration-Switch-12V-DC.php
- Dimensions 60 x 45 x 20 mm
