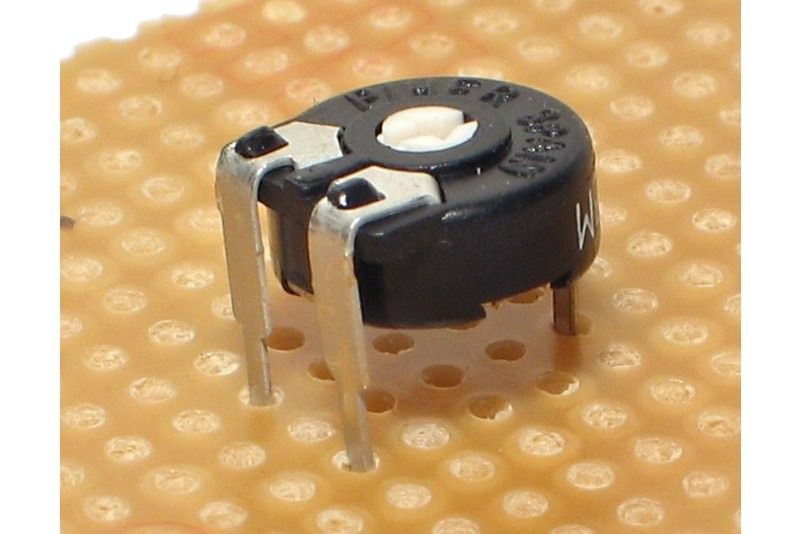

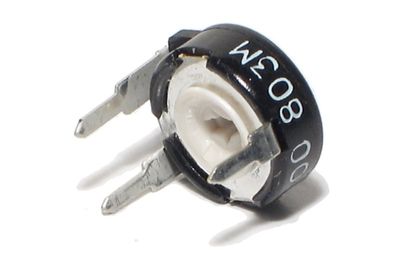

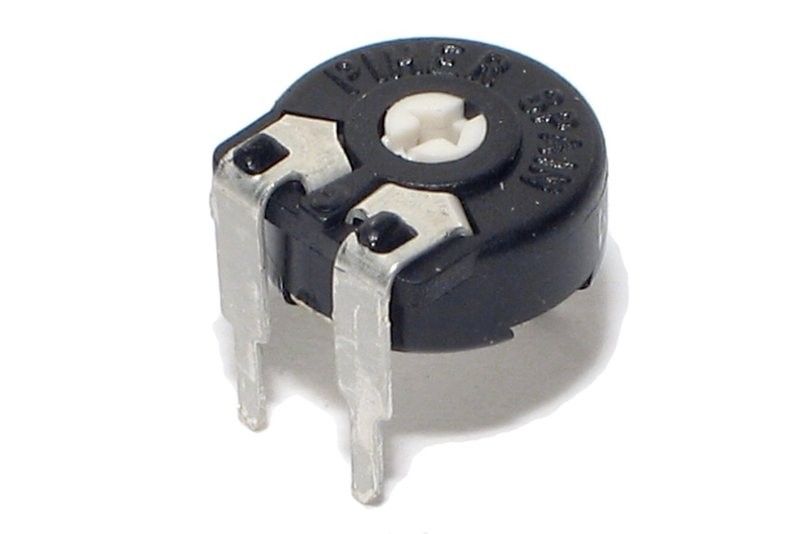

Single-turn linear sealed trimmer with a carbon resistive track.

• Resistance: 1Mohm
• Tolerance: ±20%
• Voltage rating: 200VDC
• Power rating: 0,15W @40°C
• Mechanical life: 500 turns
• Body dimensions: 11 x 10 x 5 mm
• Leads: flat 1,0 x 5 mm
• Pin spacing: 200/400 mils (= 5,08/10,2 mm)
