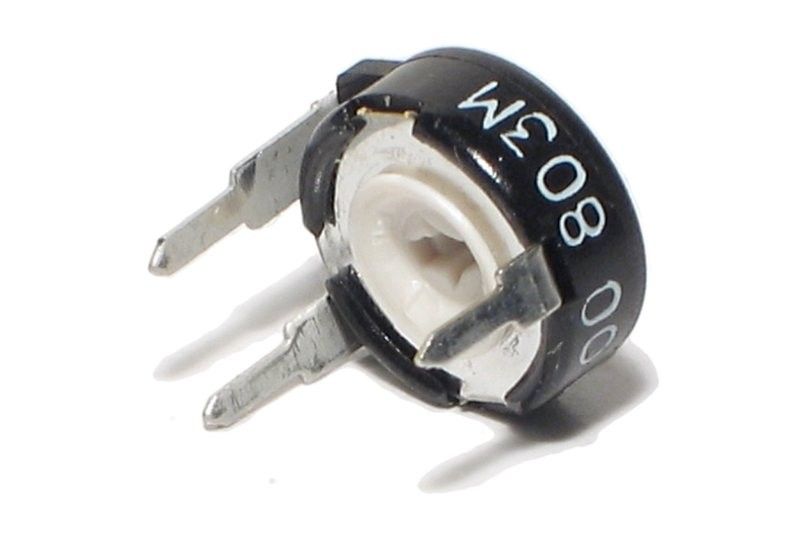

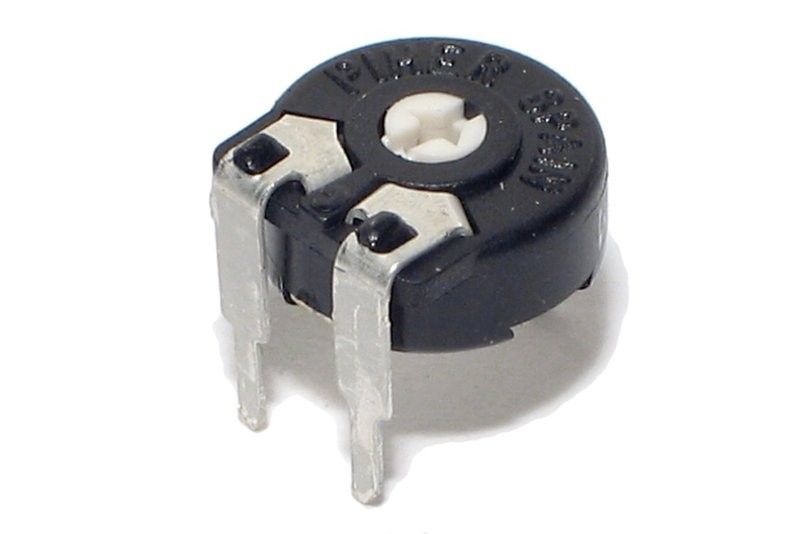

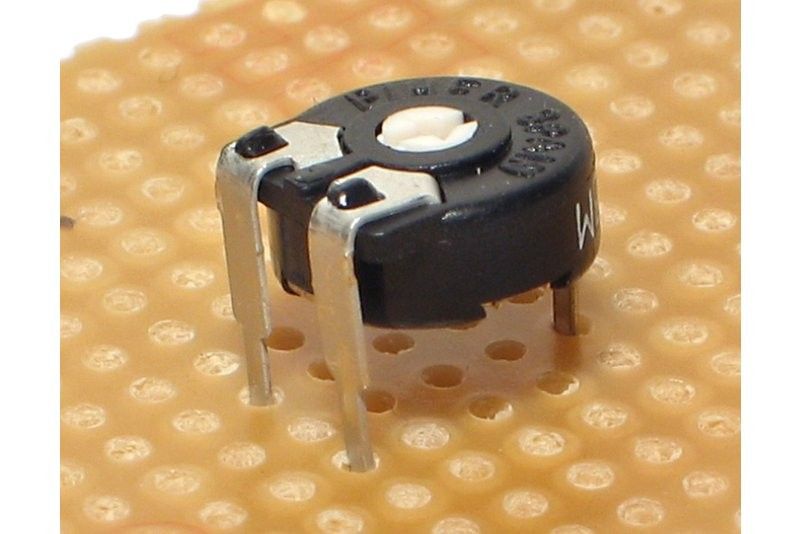

Single-turn linear sealed trimmer with a carbon resistive element.

• resistance: 10kohm
• tolerance: ±20%
• voltage rating: 200VDC
• power rating: 0,15W @40°C
• mechanical life: 500 rotations
• body dimensions: 11 x 10 x 5 mm
• pins: flat 1,0 x 5 mm
• pitch: 200/400 mils (= 5,08/10,2 mm)
