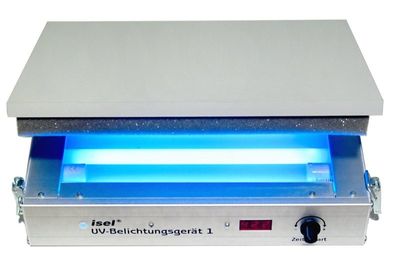

Brief home-manufacturing process for printed circuit boards (PCBs) made by exposure: Print the conductor pattern onto film, expose a positive photoresist-coated PCB and etch away the exposed copper. Finally drill for through-hole components.

Features

• sturdy frame made of anodized aluminum
• adjustable electronic timer 30 s - 10 min
• high-power UV lamps 220VAC / 4 x 15W
• exposure platen made of special glass with high UV transmittance
• lid lockable with latches whose sponge-rubber-like inner surface presses the film evenly against the surface of the board being exposed
• exposure area: 160 x 250 mm

Note! Spare lamps also available.
