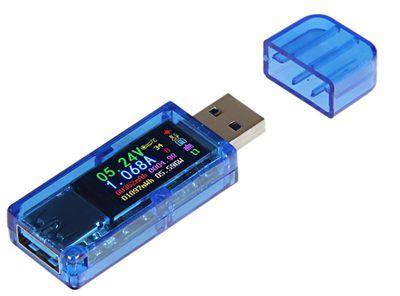

The AT-34 is a small but versatile USB multimeter.

Because it supports current Quick Charge standards, it can also be easily used with current handheld devices.

Technical specifications

• Display: 0.96-inch IPS display
• Refresh rate: 2 Hz
• Supported protocols: QC3.0, Apple 2.4A/2.1A/1A/0.5A, Android DCP, Samsung
• Voltage measurement range: 3.7 - 30V
• Voltage resolution: 0.01V
• Voltage accuracy: ±0.8% (+4 digits)
• Current measurement range: 0-4 A
• Current resolution: 0.001 A
• Current accuracy: ±1% (+4 digits)
• Power measurement range: 0-120 W
• Capacity accumulation range: 0 -99999 mAh
• Energy accumulation range: 0 -999.99 Wh
• Load impedance range: 1 -9999.9 Ω
• Temperature measurement range: 0 - 80°C
• Operating temperature range: 0 - 45 °C
• Temperature measurement error: ± 3 °C
• Dimensions: 64 x 22 x 12 mm
• Weight: 28 g
• Included items: JT-AT34 USB meter
• EAN: 4250236818696

Links

• JT-AT34 Datasheet English - 211,51 KB
• JT-AT34 Manual English - 680,31 KB
