Description

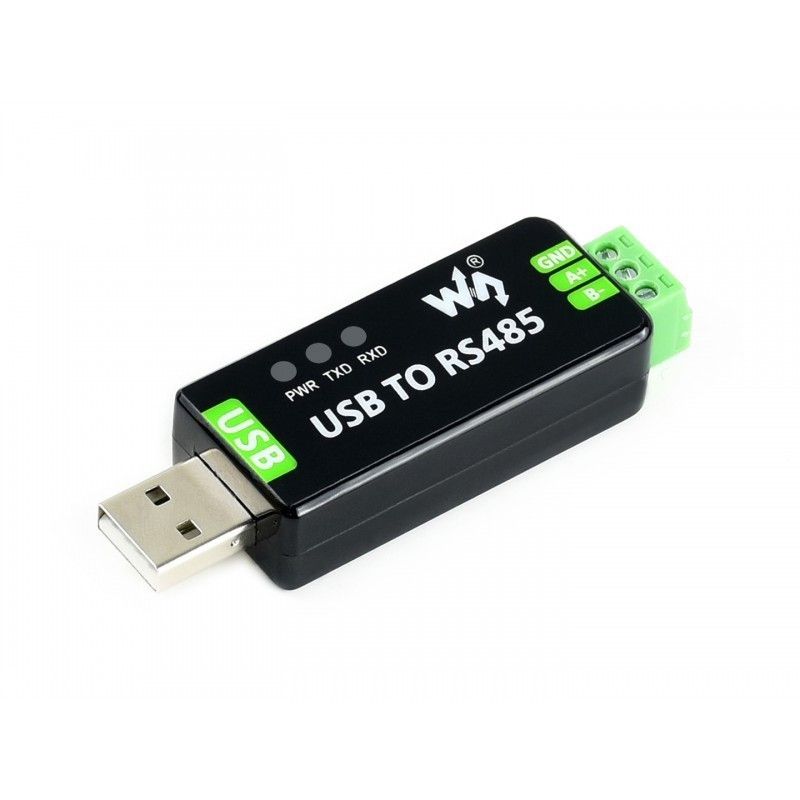

USB-RS485 converter for industrial applications, enabling easy data transmission between a USB interface and the RS485 serial communication standard. It is based on the popular FT232RL, SP485EEN, and several built-in protection circuits such as a fuse, ESD protection, and a TVS diode. The converter is known for fast data transfer, stability, reliability, and safety. Therefore it is an ideal choice for industrial control devices and applications with demanding communication requirements. Complete documentation and necessary drivers are available on the product Wiki page.

Features

• Industrial USB-RS485 converter
• Baud rate: 300–921 600 bps
• Host port: USB
• Device port: RS485
• USB:
  • Voltage: 5 V
  • Connector: USB A
  • Protection: 200 mA fuse, ESD protection
  • Transmission length: up to 5 m
• RS485:
  • Connector: screw terminal
  • Pins: A+, B-, GND
  • Direction control: automatic hardware control
  • Protection: 600 W lightning and surge protection, 15 kV ESD protection
  • Transmission length: up to 1200 m
  • Transmission mode: point-to-multipoint, up to 32 nodes; for 16 or more nodes use repeaters
• LED indicators:
  • PWR: red power indicator
  • TXD: green TX indicator
  • RXD: blue RX indicator
• Operating temperature: -15 ℃ – 70 ℃
• Humidity: 5 % RH – 95 % RH
• Operating system: Windows 10, 8.1, 8, 7, XP, Mac, Linux, Android
• Dimensions: 53 x 23,5 x 14,6 mm

Package includes

• USB-RS485 converter
• USB extension cable
• Screwdriver
