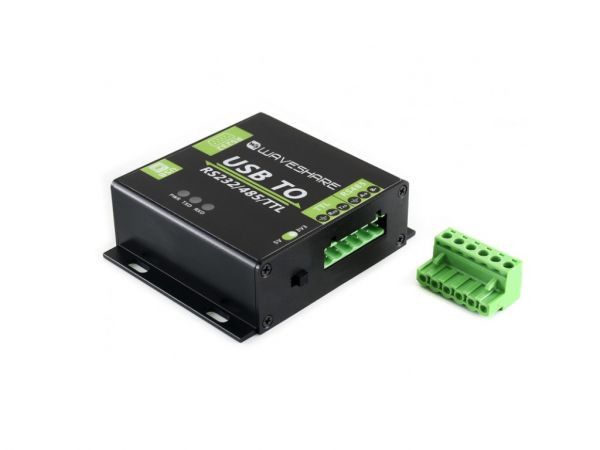

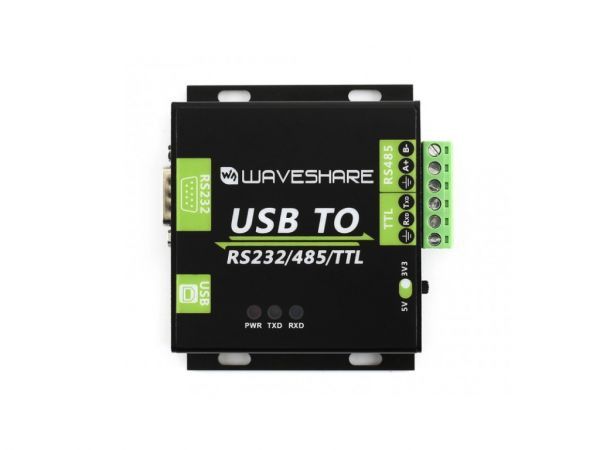

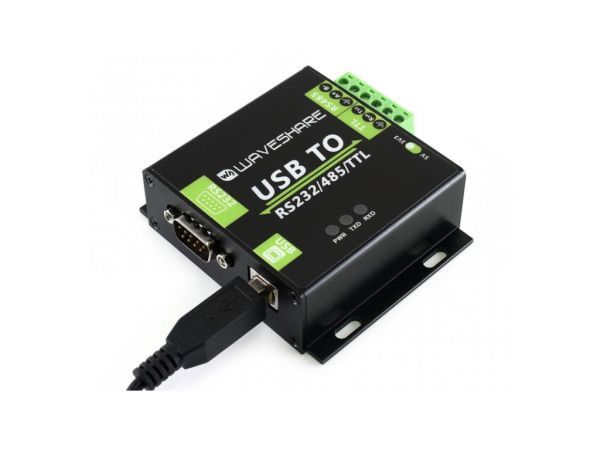

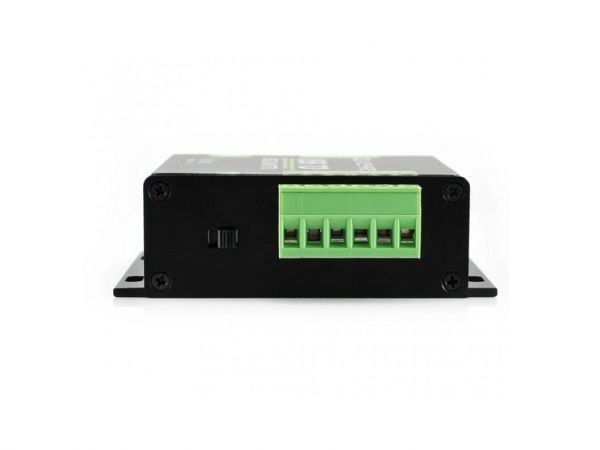

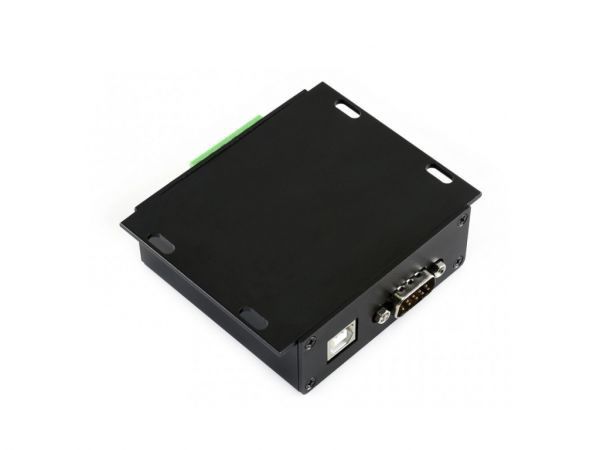

This gateway module is an industrial USB-RS232/485/TTL isolated converter designed for industrial use, containing the original FT232RL chip. It has built-in protection circuits, such as power isolation, ADI magnetic isolation, TVS diode and more. In addition, the USB-RS232/485/TTL converter is equipped with an aluminum alloy shell, making it robust and durable.

USB TO RS232/485/TTL is extremely easy to use, a fully automatic transceiver without delay. Thanks to fast data transmission, stability, reliability and safety, it is an ideal choice for industrial control equipment and applications with demanding data communication requirements.

Features

• USB TO RS232, USB TO RS485, USB TO TTL (UART)
• Uses the original FT232RL, fast data transmission, stable and reliable, better compatibility
• Built-in unibody power isolation, provides a stable isolated voltage, no extra power supply needed for the isolated connector
• Built-in unibody magnetic isolation, enables signal isolation, high reliability, strong anti-interference, low power consumption
• Built-in TVS (Transient Voltage Suppressor), effectively attenuates overvoltage and transient spike voltages in the circuit, lightning-resistant and anti-static
• Built-in self-resetting fuse and protection diodes, ensures stable current/voltage output, provides over-current/over-voltage protection, improves shock resistance
• Fully automatic transceiver circuit without delay ensures the USB port communicates with different interfaces quickly and stably without mutual interference
• Built-in TTL serial 3.3 V/5 V voltage converter, TTL level configured by switch
• Aluminum alloy shell with sandblasting and anodized oxidation, openings processed by CNC, sturdy and durable
• 3 LED indicators to show power and transceiver status
• High-quality USB-B and RS232 connectors, smooth connecting/disconnecting

Specifications

• Product type: industrial optically isolated converter
• Baud rate: 300–921600 bps
• Host port: USB
• Hardware port: RS485/RS232/TTL
• USB:
• Operating voltage: 5 V
• Connector: USB-B
• Protection: 200 mA self-resetting fuse, isolated output
• Transmission distance: ~5 m
• RS485:
• Connector: screw terminal
• Pins: A+, B-, GND
• Direction control: hardware automatic control
• Protection: 600 W lightning and overvoltage protection, 15 kV ESD protection (reserved solder pads for 120 Ω balancing resistor)
• Transmission distance: ~1200 m
• Transmission mode: point-to-multipoint (up to 32 nodes, using repeaters is recommended for 16 nodes or more)
• RS232:
• Connector: DR9 male
• Protection: TVS diode, overvoltage protection, ESD protection
• Transmission distance: ~15 m
• Transmission mode: point-to-point
• TTL (UART):
• Operating voltage: 3.3 V/5 V
• Connector: screw terminal
• Pins: TXD, RXD, GND
• Protection: fastening protection diode, overvoltage/undervoltage protection, shock resistance
• Transmission mode: point-to-point
• LED indicators:
• PWR: red power indicator, lights when USB connection is plugged in and voltage is detected
• TXD: green TX indicator, lights when the USB port is sending data
• RXD: blue RX indicator, lights when the device ports send data back
• Operating environment:
• Temperature: -15 ℃ ~ 70 ℃
• Humidity: 5 %RH ~ 95 %RH
• Operating system: Windows 10 / 8.1 / 8 / 7 / XP

Package list

• 1 x USB TO RS232/485/TTL
• 1 x USB cable

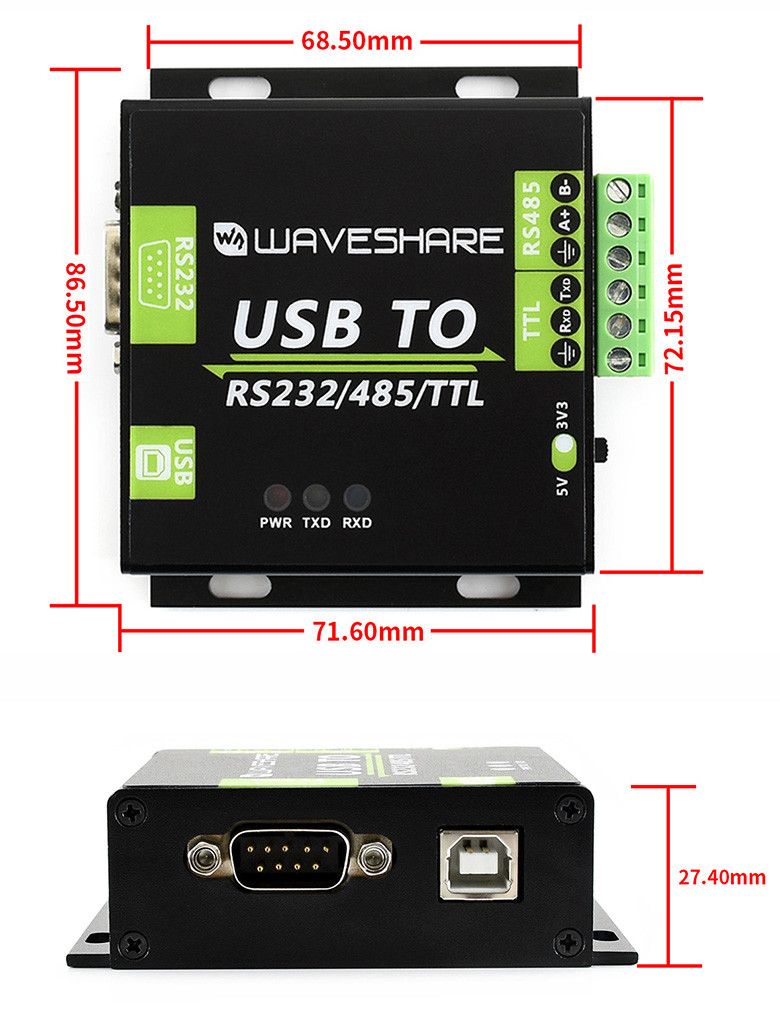

Dimensions

[img-25614-left-desc_default]
