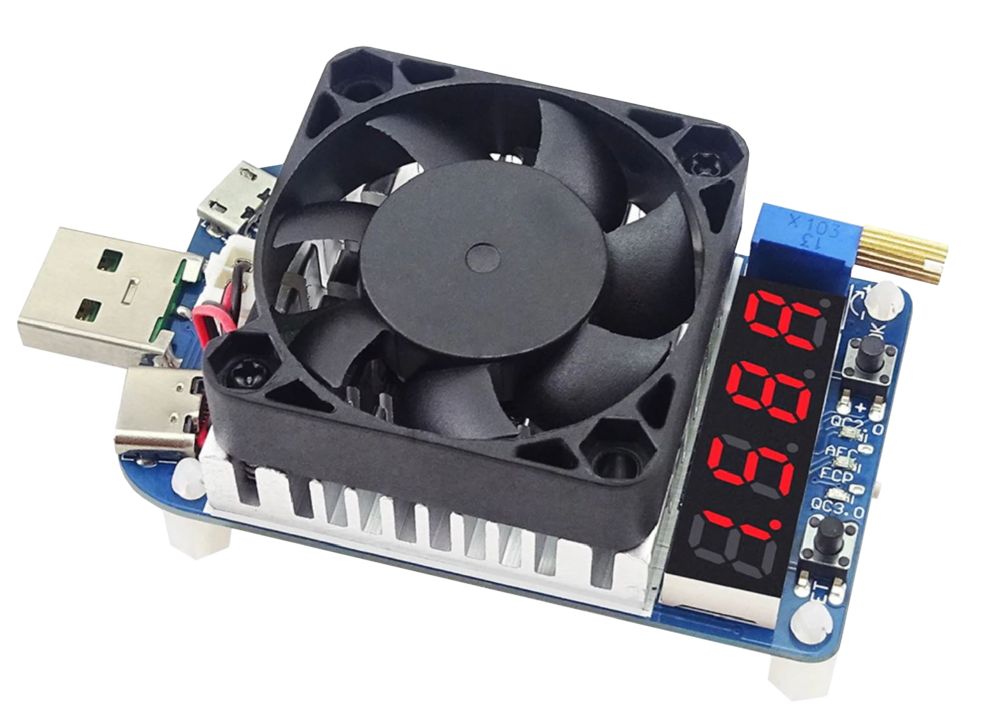

JT-HD35 offers a compact electronic USB load resistor with power up to 35 watts.
The current is easily readable from the LCD display. In addition, the device has an adjustable trimmer, which allows it to simulate various charging electronics such as QC2.0, QC3.0, FCP and AFC 9V.
The maximum voltage is up to 25 V and the maximum current up to 5 A. For this reason it is suitable for almost all application areas.
A built-in cooling component together with a temperature-controlled fan unit cools the entire device very effectively.
Using the built-in button it is possible to activate or deactivate the configured load very quickly.
Technical specifications
USB charging resistor up to 35W, adjustable via built-in trimmer, LCD display of actual current strength, buttons to switch the load on/off, simulation of various charging electronics: QC2.0(5V,9V,20V),QC3.0,FCP,AFC9V.
- Operating voltage: 4 - 25V (DC)
- Operating current: 0.25 - 5A
- Power: 35 W
- Measurement range: -10 - 40°C
- Display: 4-digit segment display
- Display color: red
- Fan speed: 8000 RPM +-10% | Temperature-controlled
- Connections: USB 2.0, Micro USB, USB Type-C
- Dimensions: 84 x 41 x 28 mm
- Weight: 52 g
- Delivered items: JT-HD35
- EAN: 4250236817859
