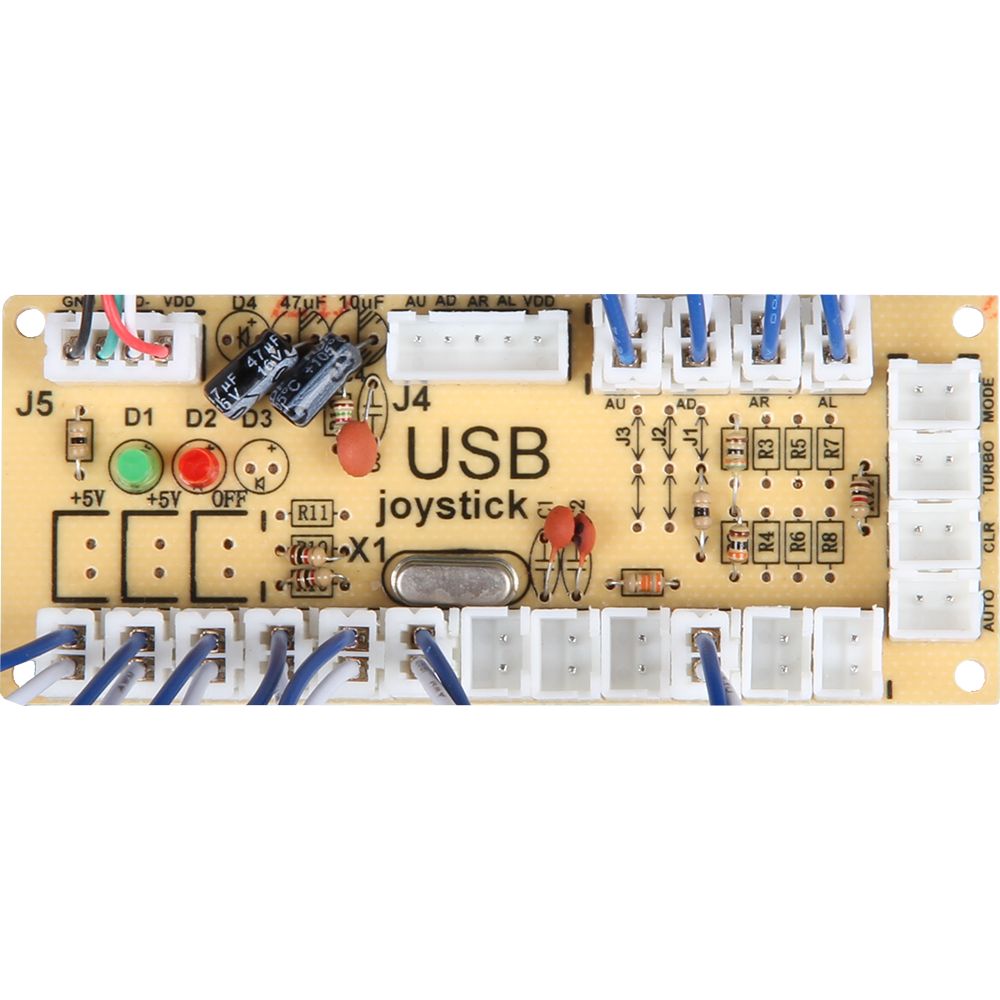

The Zero Delay Encoder offers an easy way to connect your own arcade joysticks and buttons and connect them to your PC or other devices. Create your own controller and enjoy all of your games without sacrificing any of your gaming experience.

Specifications

• Rated voltage: 5 V
• Rated current: 1 A
• Supported systems: Windows, MAME & other emulations
• Connectable buttons: 12x
• Additional connection: Sanwa/Seimitsu 5-Pin
• Connectable joysticks: 1x
• LEDs: 1x Mode-LED, 1x Power-LED
• Available Modes: Auto, Fire, Turbo
• Dimensions: 85 x 35 x 10 mm
• Weight: 115 g

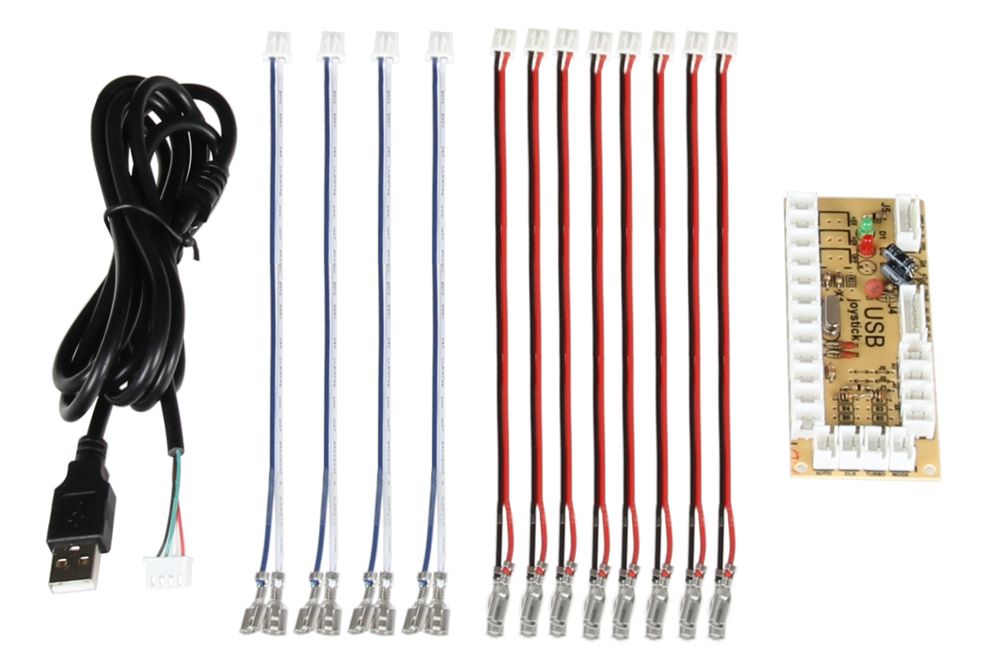

• Items Shipped: Zero Delay Encoder, USB cable, 13 x 4.8 mm cable
• EAN: 4250236818559

Note! The delivery includes only the PCB with its connection wires. The joystick or switches shown in the additional image must be purchased separately.
