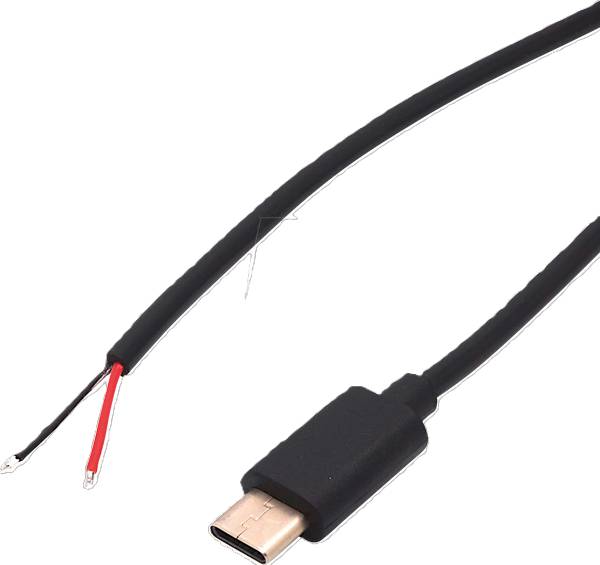

USB-C connection cable with open wire ends, 20 cm

Compact USB Type-C connection cable with a USB-C male connector on one end and pre-stripped, tinned wire ends on the other. Particularly suitable for power delivery, building prototypes, embedded systems and various electronics projects.

Features

• USB 2.0 Type-C male connector
• Open, stripped and tinned wire ends
• 2 wires: VCC (+5 V) and GND (ground)
• Red wire = +5 V
• Black wire = GND
• Wire gauge: 22 AWG
• Cable diameter approximately 3 mm
• Color: black
• Cable length approximately 20 cm

Technical specifications

• Connector type: USB Type-C male
• USB version: USB 2.0
• Number of conductors: 2 (power)
• Conductors: VCC and GND
• Wire gauge: 22 AWG
• Cable diameter: approximately 3 mm
• Length: 0.20 m
• Color: black

Note: The cable contains only power wires (+5 V and GND). D+, D- or other wires required for USB data transfer are not brought out to the open ends, so the product is primarily intended for power delivery and not for implementing USB data connections.
