Description

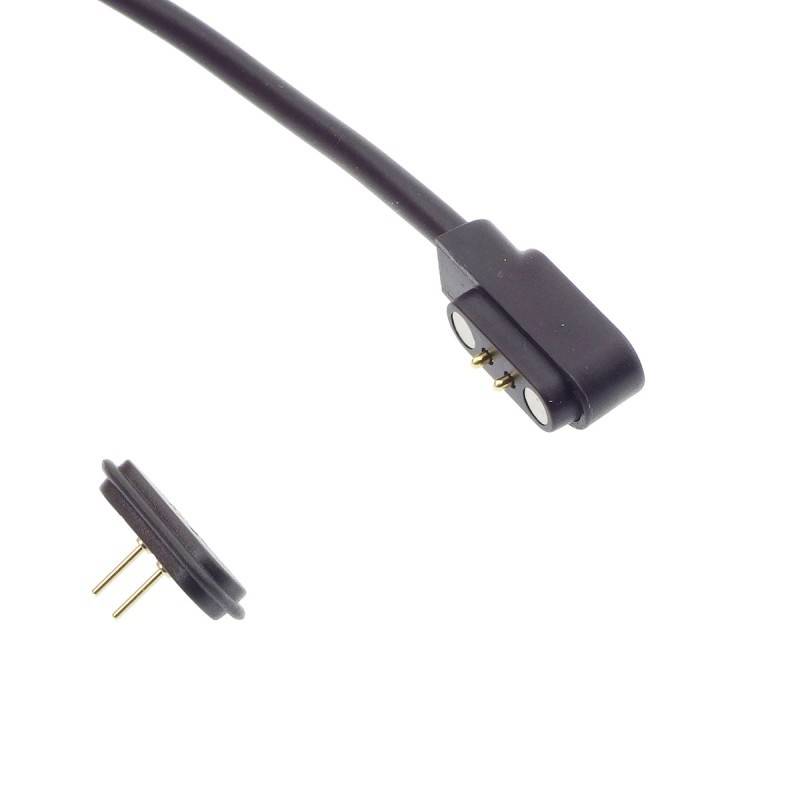

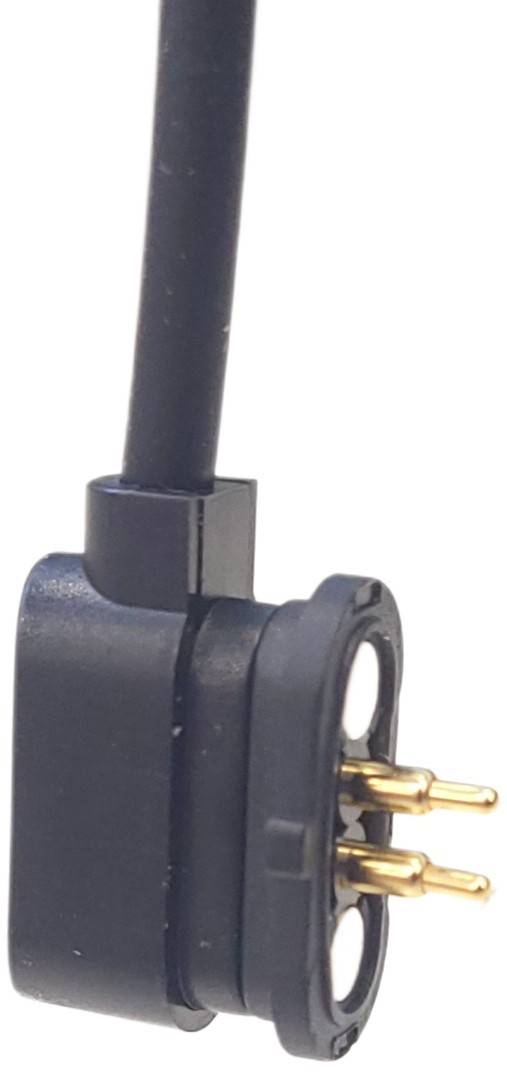

USB cable with a 2-pin magnetic connector, supplied together with the mating connector. The pitch is 2.8 mm and spring-loaded test pins (pogo pins) are used. The built-in magnet ensures an easy and secure connection between the connector and plug and enables quick module attachment. It operates at up to 36 V and allows device power delivery at up to 2 A. It can be used to charge small devices.

Features

• Connector 1: USB Type-A plug
• Connector 2: magnetic, pogo pin
• Connection shape: elongated
• 2.8 mm pitch
• Number of pins: 2
• Maximum voltage: 36 V
• Maximum current: 2 A

Package includes

• USB cable with magnetic connector

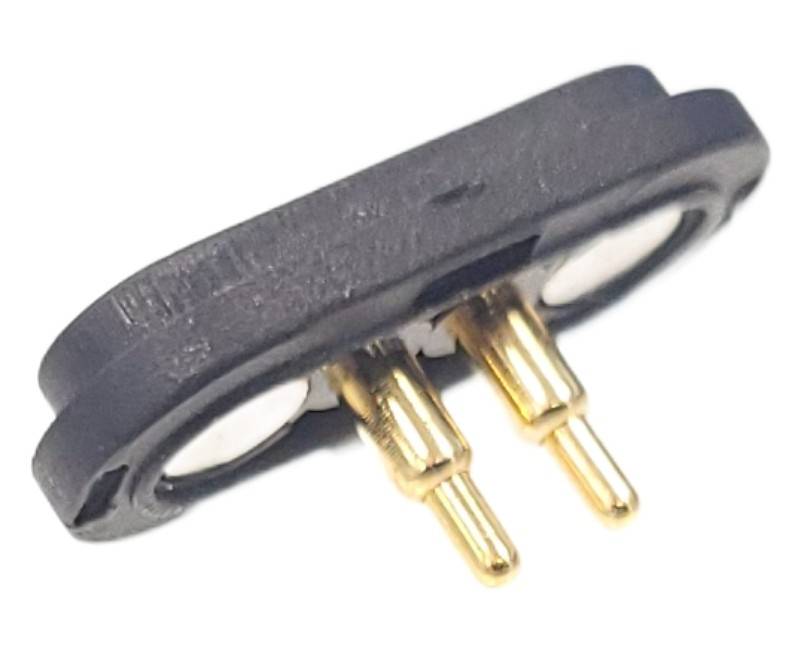

• Magnetic mating piece with pogo pins on the back (can also be soldered)

For power supply only
