USB 2.0 / RS485-SERIAL PORT

Name: USB 2.0 / RS485-SERIAL PORT
Brand: Noname
SKU: DK-USB-RS485-B
Price: 13.30 EUR
Availability: InStock

Temporarily out of stock

SKU#: DK-USB-RS485-B

Noname

USB 2.0 / RS485-SERIAL PORT

Temporarily out of stock

SKU#: DK-USB-RS485-B

13,30 €

Temporarily out of stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

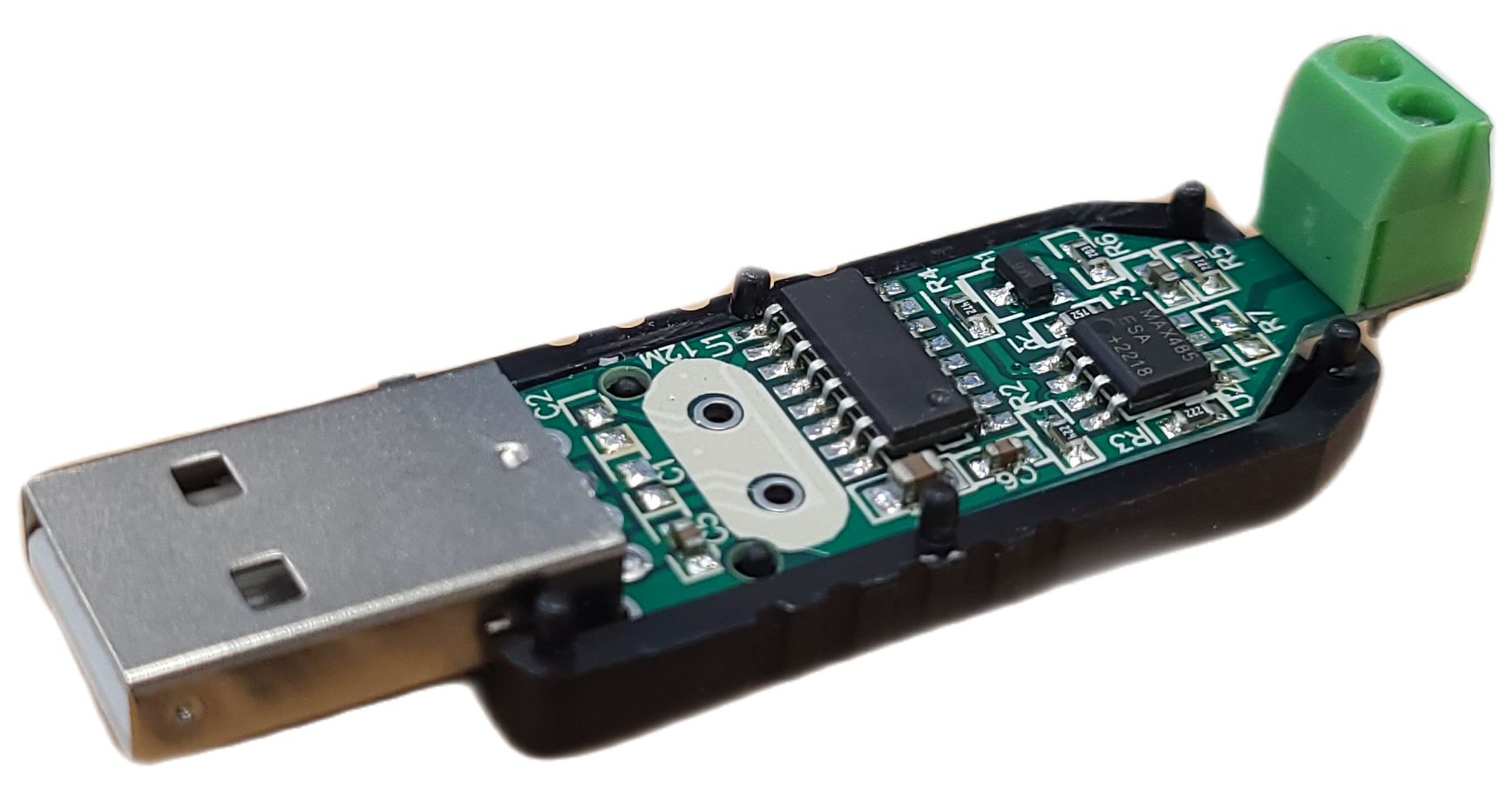

The device is based on the HL-340 chip. The RS485 side is handled by MAX485ESA+. The bus resistor (R7) is unpopulated but the footprint is available if needed. The A(-) contact is on the left side of the green connector when viewed from the front. Remember to connect A - A and B - B.

Below are some log outputs produced by the Linux 3.13 kernel:

ID 1a86:7523 QinHeng Electronics HL-340 USB-Serial adapter usbserial: USB Serial support registered for ch341-uart

Product Information

Availability Temporarily out of stock
Manufacturer Noname
EAN 4251266701965
Product path Home Computer USB Accessories USB 2.0 / RS485-SERIAL PORT
SKU DK-USB-RS485-B
Attributes
- Connector-A USB type-A
- Dimensions 60 x 17 x 8 mm
