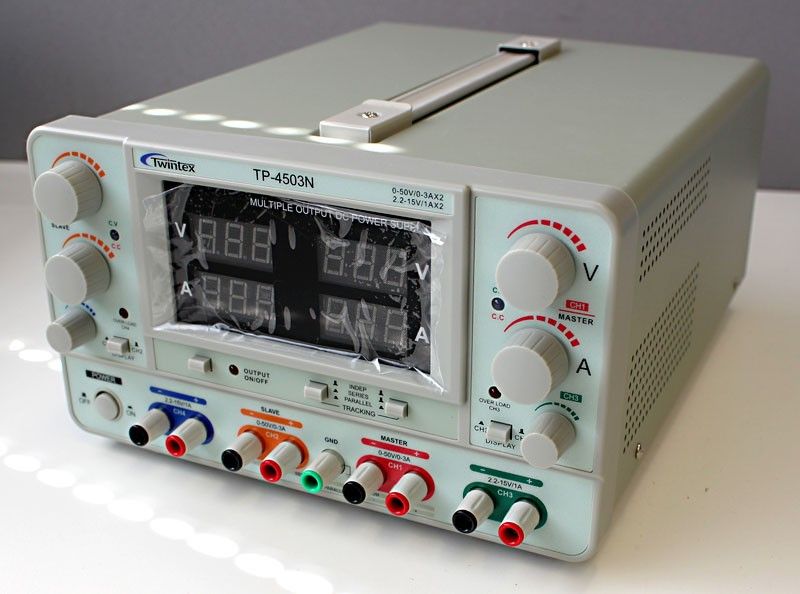

About the features

Two output groups:

• channels 1&2: 0-50VDC, 0-3A
• channels 3&4: 2,2-15VDC, fixed 1A

Channels 1 and 2 can be:

• independent
  • outputs separate from each other
  • left and right side controls separate
• in series
  • output voltage is 0-100VDC, outputs internally connected in series
  • only right-side controls are usable
• in parallel
  • outputs separate but only right-side controls are usable
  • suitable e.g. for amplifier circuits

Channels 3 and 4 have their own output voltage adjustment knobs.

Separate OUTPUT knob for activating the outputs.

Performance

• constant voltage: <0,01%+3mV (reg. line & load), <1mVrms (ripple & noise)
• constant current: <0,2%+3mA (reg. line & load), 3mArms (ripple & noise)
• auxiliary channels: <25mVrms (reg. load), <2Vrms (ripple & noise)
• large three-digit LED displays with 100mV and 10mA resolution
• operating temperature: 0...+40C

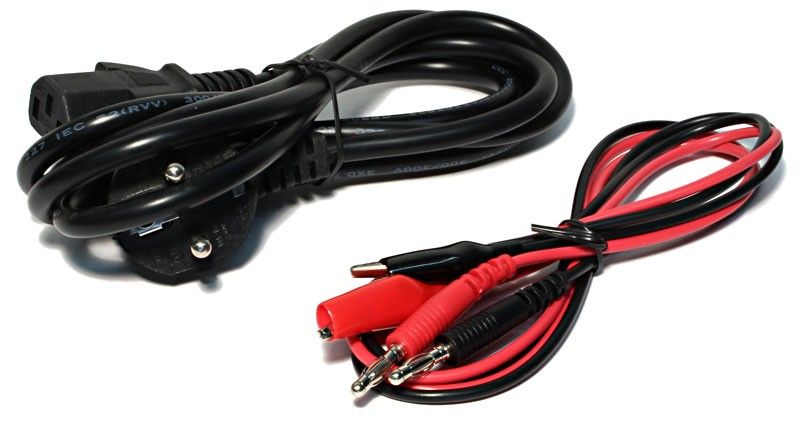

Delivery includes: power supply, measurement leads, power cord, English manual
