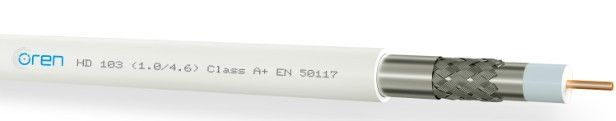

TV/RADIO ANTENNIKAAPELI 75ohm Ø6,8mm VALKO

In stock 52 pcs

SKU#: AL112PVCA100HD

TV/RADIO ANTENNIKAAPELI 75ohm Ø6,8mm VALKO

TV/RADIO ANTENNIKAAPELI 75ohm Ø6,8mm VALKO

In stock 52 pcs

SKU#: AL112PVCA100HD

Quantity discount

Quantity (kpl)		Price
10+	undefined%	1,05 €

1,26 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Nominal impedance: 75 Ohm
Inner conductor material: copper
Inner conductor diameter: 1.02 mm
Outer conductor diameter: 4.8 mm
Inner conductor class: class 1 = solid
Outer conductor material: copper
Outer sheath material: PVC
Inner conductor surface finish: bare
Outer conductor surface finish: tinned
Number of shielding layers: 3
Outer sheath color: white
Reaction to fire according to EN 13501-6: Eca
Cable outer diameter (approx.): 6.8 mm
Dielectric: PE foam
Outer conductor type: foil + braid
Operating temperature for fixed installation: -30-70 °C
Minimum allowed bending radius in fixed installations: 35 mm
Weight: 48.2 kg/km
Maximum tensile load during installation: 0.11 kN
Number of sheath layers: 1

Product Information

Availability In stock
Manufacturer Laatuantenni
Product path Home Cables Raw Cables RF Raw Cables Antenna Cables 75ohm TV/RADIO ANTENNIKAAPELI 75ohm Ø6,8mm VALKO
SKU AL112PVCA100HD
Attributes
- Quantity metreittäin
- Color valkoinen
- Impedance 75 Ohm
