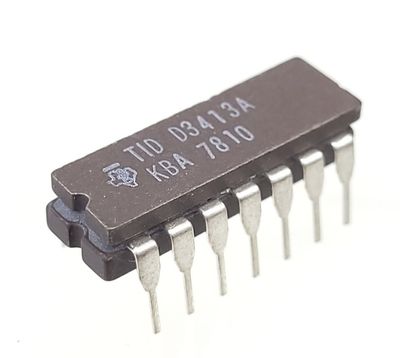

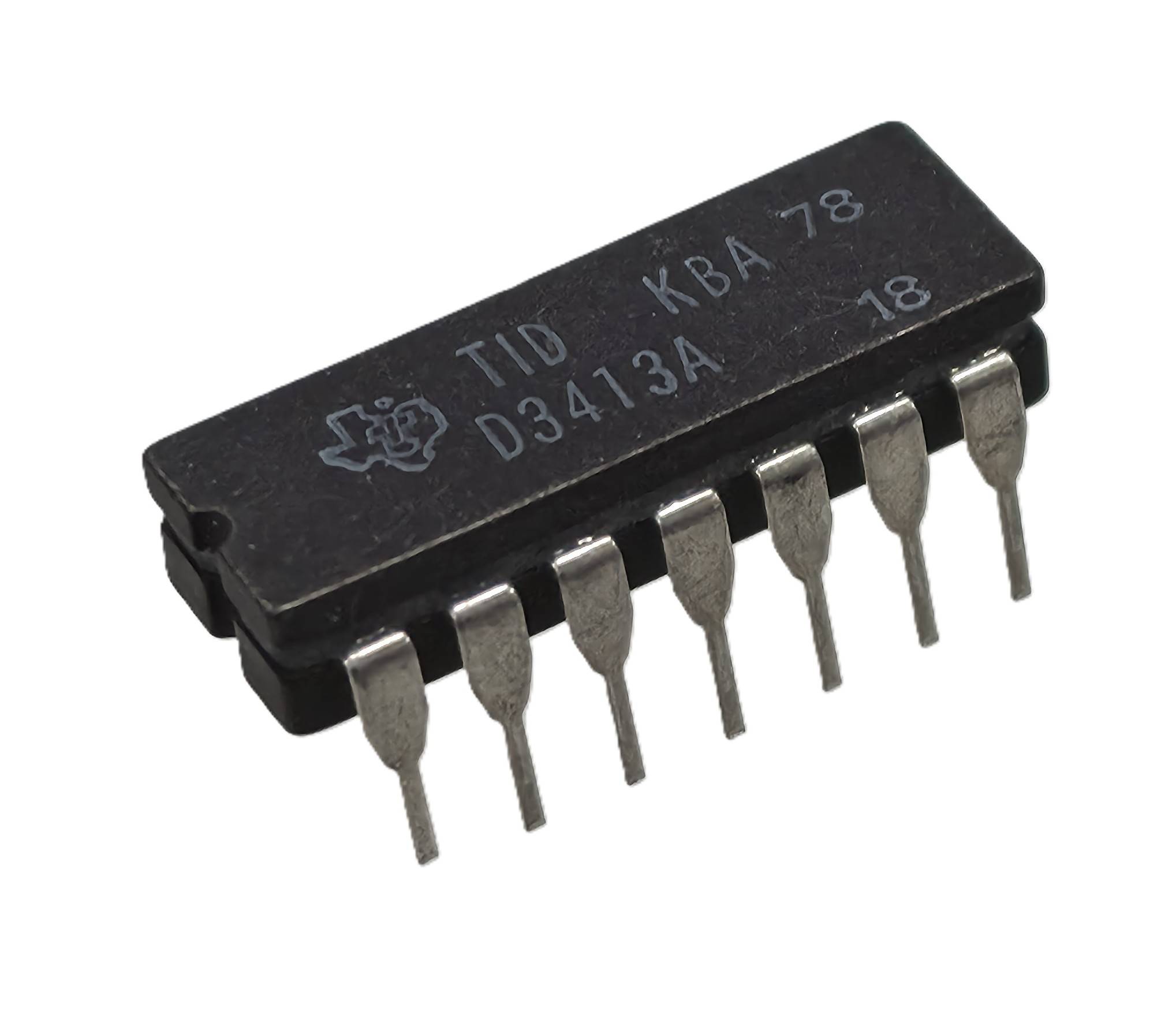

Texas Instruments TID D3413A / SN7413 Dual 4-Input NAND Schmitt Trigger

The Texas Instruments TID D3413A is an SN7413-series TTL logic IC that contains two 4-input NAND gates with Schmitt-trigger inputs. The Schmitt-trigger feature improves operation with slowly changing or noisy input signals.

Technical specifications

• Manufacturer: Texas Instruments
• Marking: TID D3413A
• Equivalent type: SN7413
• Function: Dual 4-Input NAND Schmitt Trigger
• Number of gates: 2
• Inputs per gate: 4
• Logic family: TTL 7400
• Package type: DIP-14
• Mounting type: THT

Applications

Suitable for digital logic circuits, signal conditioning, handling noisy or slowly changing signals, and for repair and restoration of vintage electronic equipment.
