74LS367 Hex Bus Buffer / Driver DIP-16

The 74LS367 is a six-channel bus buffer and line driver designed for amplifying and isolating TTL-compatible digital signals. The device includes two separate enable controls that allow channels to be enabled or disabled in groups. It is particularly suitable for bus buffering, address and data lines, and signal transfer between logic ICs.

Features

• Six non-inverting buffer channels
• Two separate enable control inputs
• TTL-compatible inputs and outputs
• Fast Schottky TTL (LS) family
• Suitable for bus buffering and signal amplification
• Compatible with 5 V supply voltage

Specifications

• Type: 74LS367
• Function: Hex Buffer / Line Driver
• Number of channels: 6
• Output type: Non-inverting
• Supply voltage: 4.75–5.25 V
• Technology: TTL, Low Power Schottky

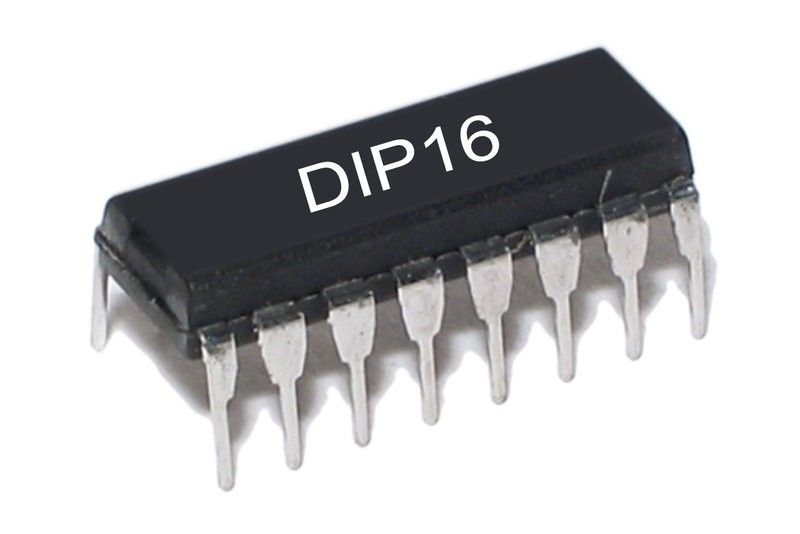

• Package: DIP-16
• Applications: bus buffering, data lines, address lines, processor and logic ICs
