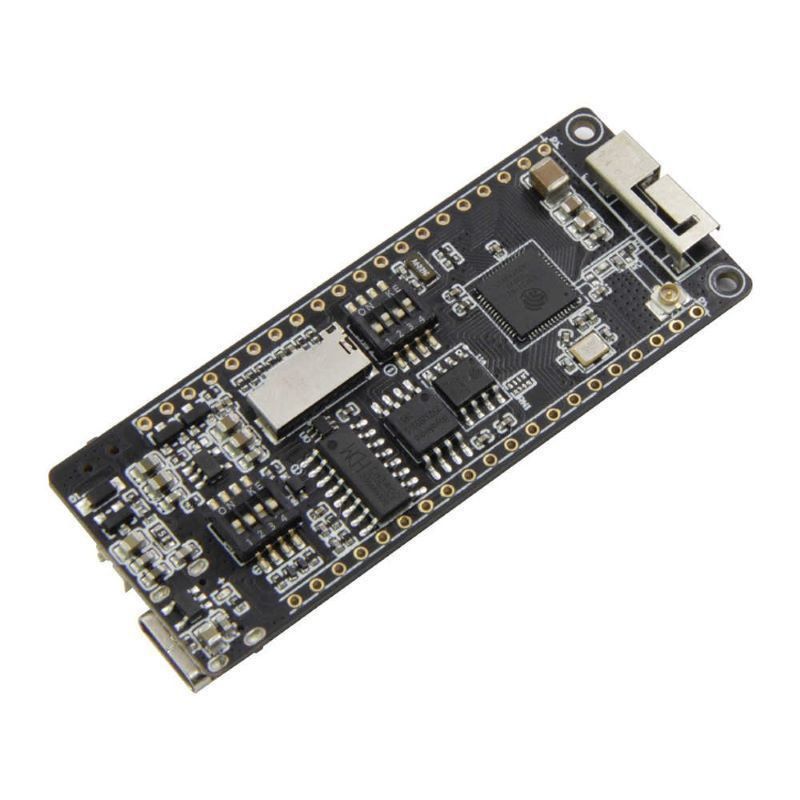

LILYGO® TTGO T8 ESP32-S2 V1.1 ST77789 1.14 inch LCD display WIFI wireless module. It is powered by the ESPRESSIF-ESP32-S2 chipset. The ESP32-S2 is a secure, highly integrated, low-power, 2.4 GHz Wi-Fi microcontroller SoC that supports Wi-Fi HT40 and provides 43 GPIOs.

Features

• Hardware:

  • Chipset: ESPRESSIF-ESP32-S2
  • FLASH: 4MB
  • PSRAM: 8MB
  • SRAM: 320 kB SRAM
  • Buttons: Power switch, reset, boot, customize, SMD DPI switch
  • External device: TF Card
  • USB TTL: CH340C
  • Modular interfaces: SD card, UART, SPI, I2C, PWM, I2S, ADC
  • On-board clock: 32.768KHz crystal oscillator
  • Operating voltage: 2.7V-3.6V
  • Operating temperature range: -40℃ ~ +85℃
  • Weight: 9g
  • Dimensions: 65.48*26.02*5mm

• Power Supply:

  • Power input: USB 5V/1A
  • Charging current: 500mA
  • Battery input: 3.7-4.2V
  • JST connector: 2Pin 1.25mm
  • USB: Type-C USB

• Wi-Fi:

  • Certification: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC (esp32 chip)
  • Protocol: 802.11 b/g/n (802.11n, speed up to 150Mbps). A-MPDU and A-MSDU aggregation, supports 0.4μS guard interval
  • Frequency range: 2.4GHz~2.5GHz (2400M~2483.5M)
  • Transmit power: 22dBm
  • Communication distance: 300m

• Display:

  • Display: ST77789 / 1.14 inch

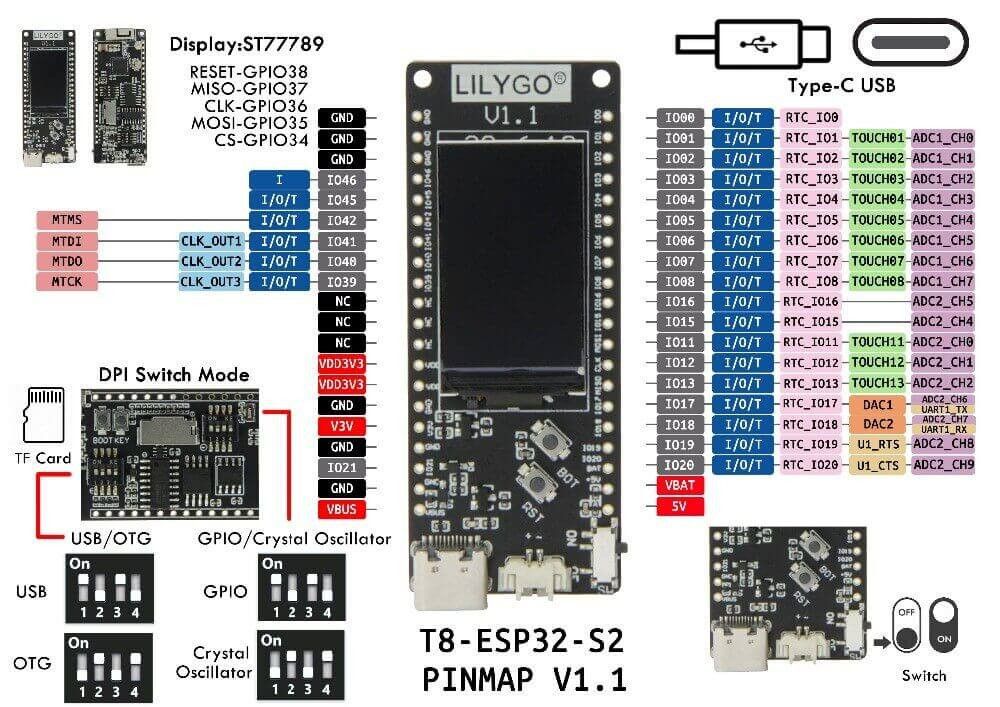

Pinout:

[img-25456-left-desc_default]

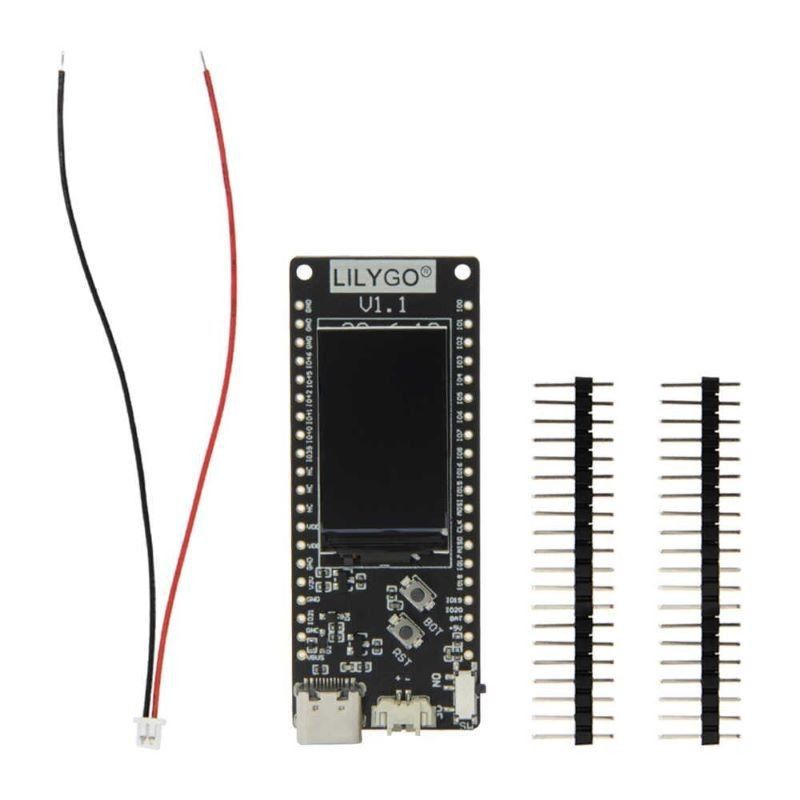

Packing List

• 1 x T8 ESP32-S2 V1.1 board
• 1 x charging cable
• 2 x 20 pin headers
