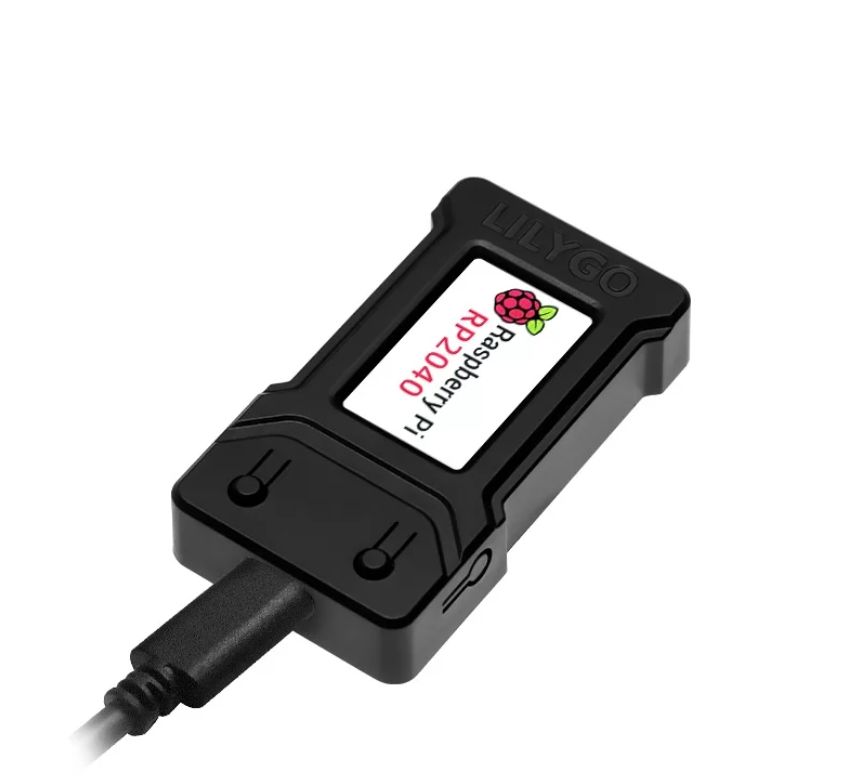

TTGO PicoC3 RP2040 +1.14" IPS (ST7789V)

Name: TTGO PicoC3 RP2040 +1.14" IPS (ST7789V)
Brand: Elecrow
SKU: RPI-DSI11457R
Price: 15.39 EUR
Availability: InStock

In stock under 5 pcs

SKU#: RPI-DSI11457R

TTGO PicoC3 RP2040 +1.14" IPS (ST7789V)

In stock under 5 pcs

SKU#: RPI-DSI11457R

Elecrow DSI11457R - 1.14inch display is equipped with Raspberry Pi RP2040.

15,39 € 30,76 €

Save 50%

30 days lowest price 30,76 €

Outsale

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

This 1.14inch display is equipped with Raspberry Pi RP2040. It supports C/C++ and MicroPython programming language and comes with a 135*240 full color TFT display.

Feature

MCU: Raspberry Pi RP2040
1.14 inch Display: 135*240 full color TFT screen
Two programming language: C/C++, MicroPython

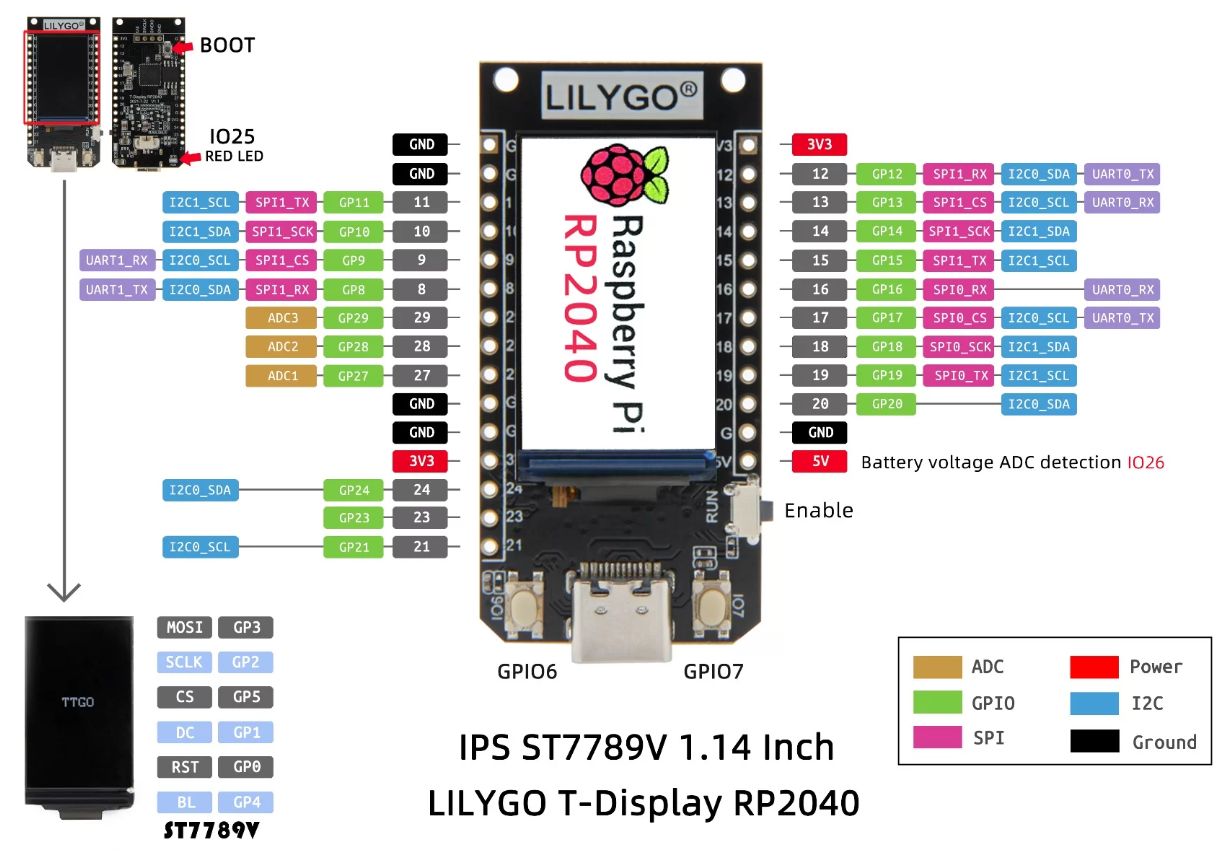

Specification

MCU: Raspberry Pi RP2040
Bus interface: 2xUART, 2x SPI, 2xI2C, 6x PWM
Programming Language: C/C++, MicroPython
Onboard functions: Buttons: IO06+IO07, Battery power detection
14 inch STT7789V IPS LCD
Resolution: 135*240, full color TFT Display
Working power supply: 3.3v
Operating Temperature: -20-70℃
Support USB/Li-pO Battery Dual power supply

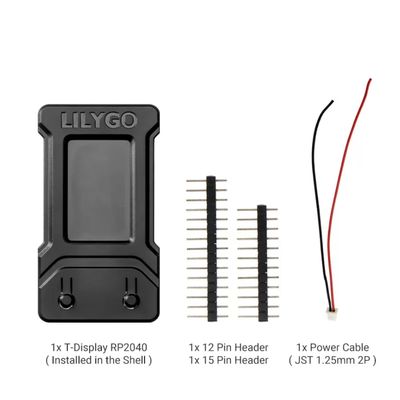

Package List

1x T-Display RP2040 ( Installed in the Shell )
1x Power Cable ( JST 1.25mm 2P )
1x12 Pin Header
1x 15 Pin Header

Product Information

Availability Outsale
Manufacturer Elecrow
Product path Home Development Cards Miscellaneous Development Cards TTGO PicoC3 RP2040 +1.14" IPS (ST7789V)
SKU RPI-DSI11457R
Attributes
- Operating temperature -20...+70°C
- Resolution 135x240
- Interface USB-C
- Manufacturer's model DSI11457R
- Click for more details https://www.elecrow.com/t-display-picoc3-rp2040-with-1-14-inch-st7789v-lcd-display-raspberry-pi-module.html
