• Voltage - Off State: 400 V
• Current - On State (It (RMS)): 4 A
• Gate Trigger Voltage (Vgt): 2 V (max)
• Gate Trigger Current (Igt): 25 mA (max)
• Non-Repetitive Surge Current: 20 A (50Hz), 21 A (60Hz)
• Holding Current (Ih): 25 mA (max)
• Operating Temperature Range: -40°C to 125°C

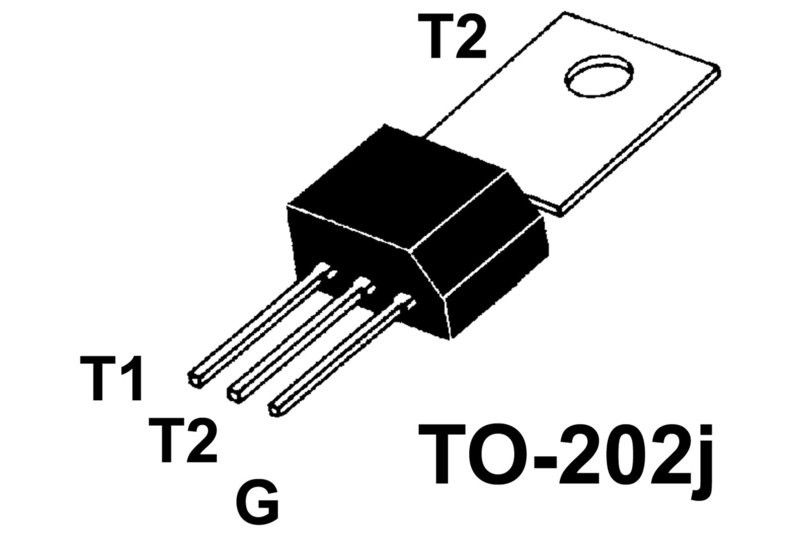

• Package: TO-202-1

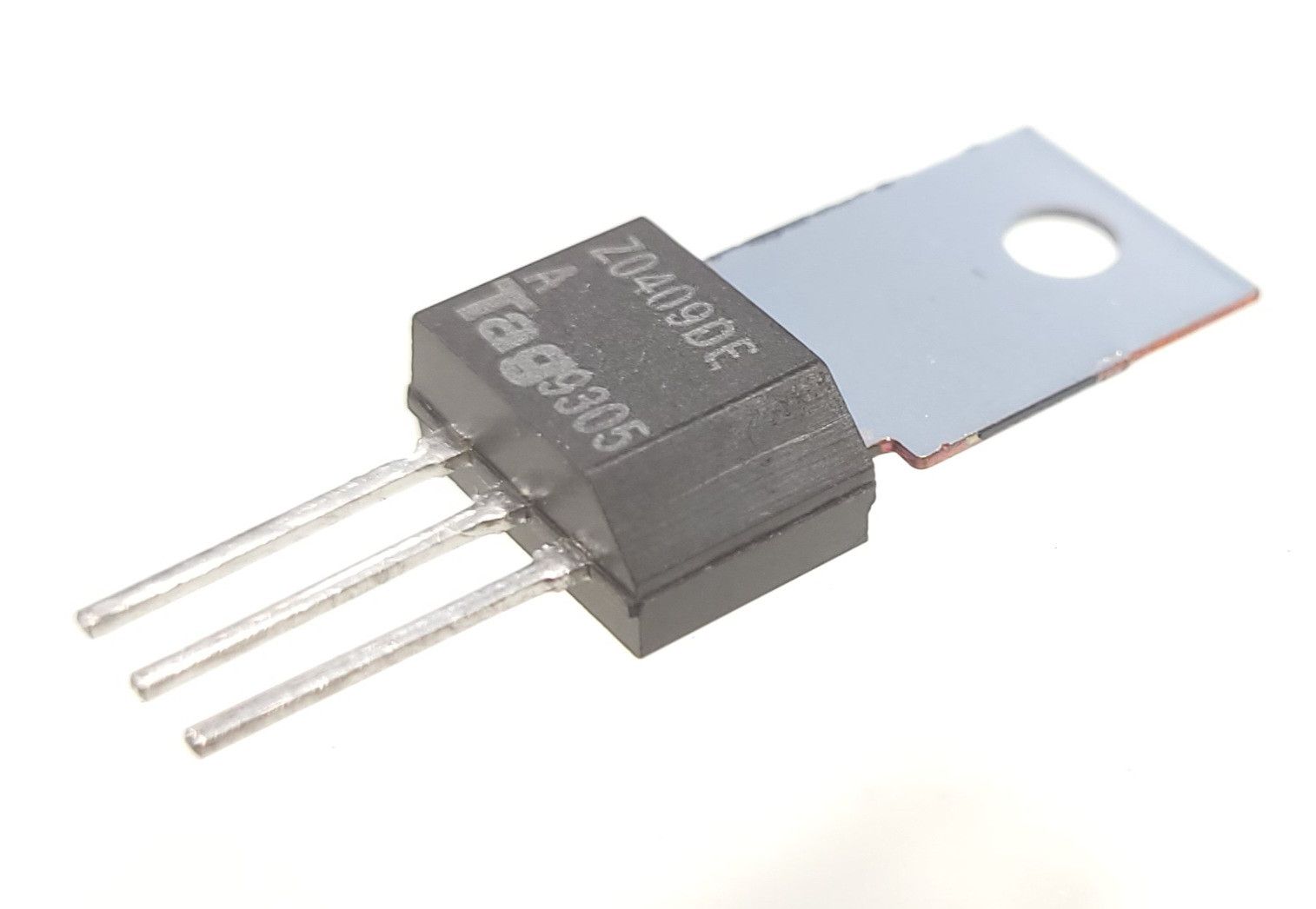

NOTE! Date code 9305 RoHS
