Description:

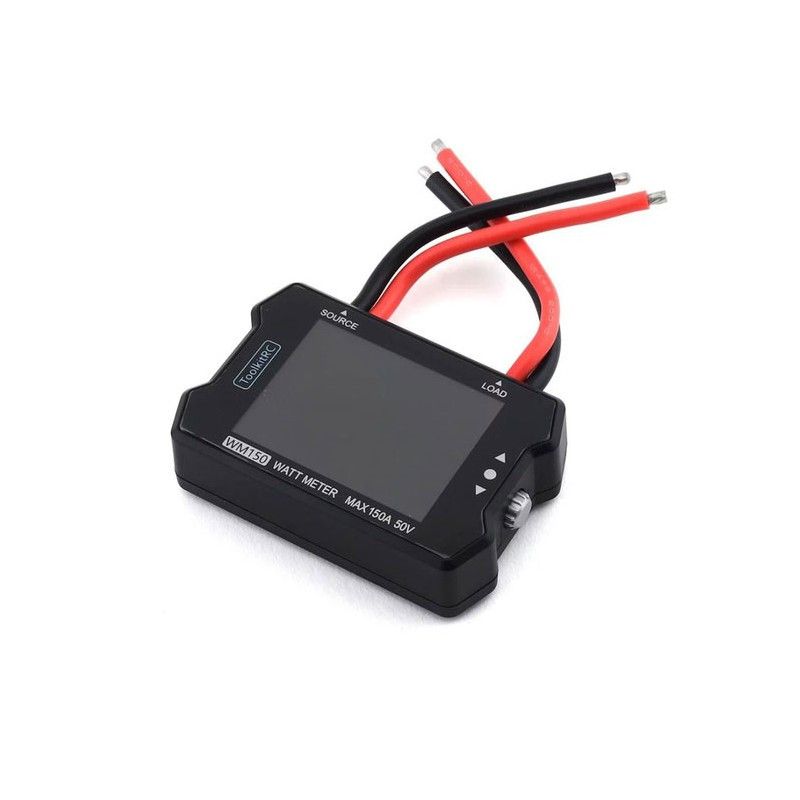

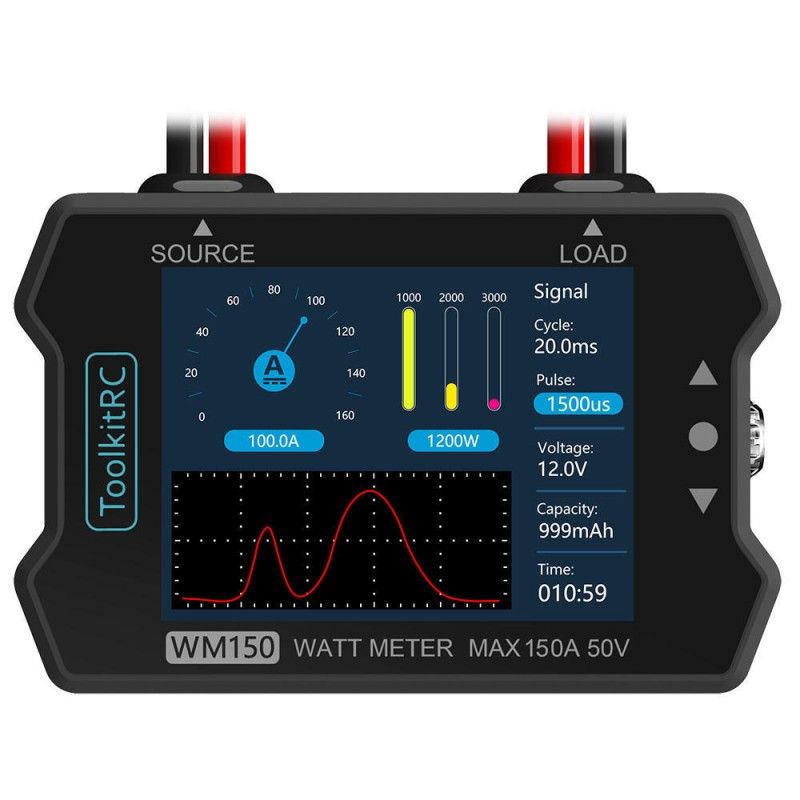

An advanced power meter featuring a 2.4-inch TFT LCD display with a resolution of 320x240 pixels. It allows you to measure current with up to 50 V input voltage and 150 A current. The measured values are shown on the display in a very user-friendly way as graphs and indicators.

The high sampling rate is provided by a built-in microcontroller with an ARM Cortex-M3 core and a 12-bit ADC converter. The device also includes a function to generate a simulated PWM signal, allowing you to quickly test servos or ESC controllers. The meter can be connected to a computer via USB, enabling the user to update the firmware. It is used in the workshop when analyzing the operation of drones or RC models.

Features:

• Input voltage: 1-50V@ MAX 150A
• USB input: 5.0V@1A
• Firmware update: USB3.0
• Signal port: 1000us-2000us @ 50Hz
• 2.4" TFT LCD display, resolution 320x240 pixels.
• Dimensions: 80 x 54 x 23mm
• Weight: 82 g
