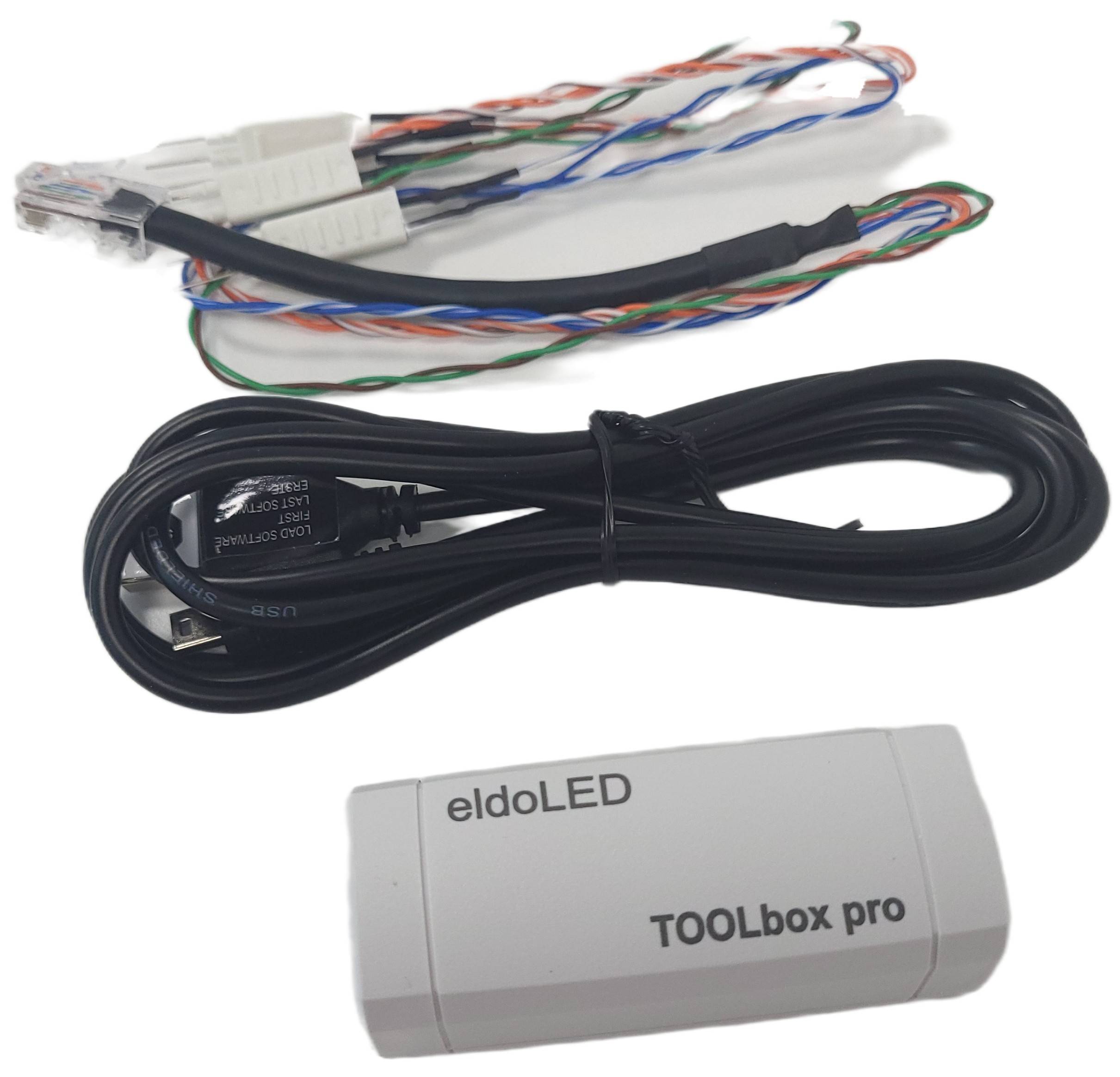

eldoLED TOOLbox Pro TLU20504-0 – LEDcode, DALI & DMX programming device

The eldoLED TOOLbox Pro is a compact and powerful configuration tool for programming and commissioning eldoLED LED drivers. The device acts as a USB-connected interface between a PC and the LED driver, allowing precise setting changes via the LEDcode, DALI and DMX protocols.

Together with the FluxTool or ShowMaster DMX software, the TOOLbox Pro enables adjustment of output current, dimming curves and DMX parameters, as well as testing of DALI functions.

Features

• Programming and configuration of LED drivers
• Support: LEDcode, DALI and DMX
• USB → RJ45 interface
• Adjustment of output current and dimming curves
• Setting of DMX parameters
• Testing of DALI functions
• Field programming (in-field programming)
• LED indicators (LEDcode / DALI / DMX activity)

Connections

• Input: USB (mini-USB)
• Output (RJ45):
  • DMX: pin 1 (DMX+), pin 2 (DMX-)
  • DALI: pin 4 (-), pin 5 (+)
  • LEDcode: pin 6 (+), pin 8 (-)

Technical specifications

• Operating temperature: -20…+50 °C
• Dimensions: approximately 76 × 32 × 25 mm
• Weight: approximately 30 g

Applications

Suitable for the design, production, commissioning and maintenance of lighting systems when precise configuration and testing of eldoLED drivers is required.
