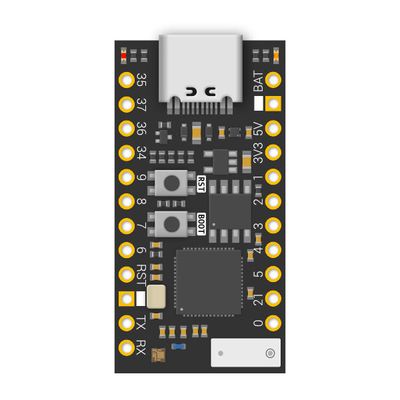

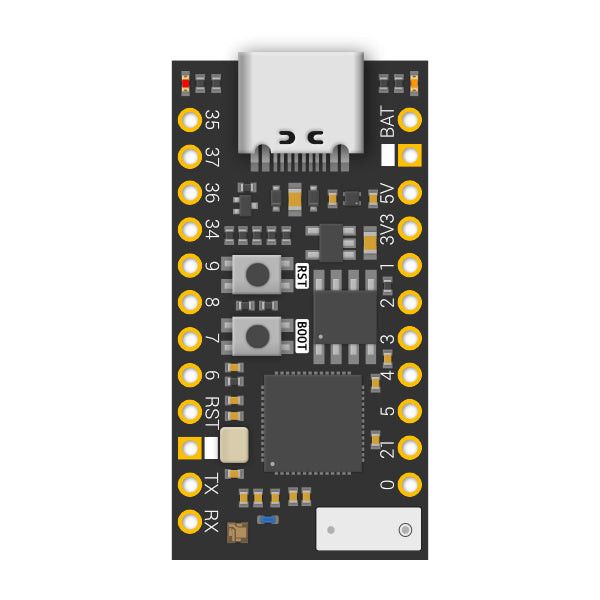

Introducing the TinyS3 - The Tiny Mighty ESP32-S3 development board in the TinyPICO format!

TinyS3 is the latest in the super popular range of "Tiny" development boards. It's packed with amazing features and peripherals, wireless connectivity and stacks of Flash and PSRAM, all in the same tiny package size as the original TinyPICO!

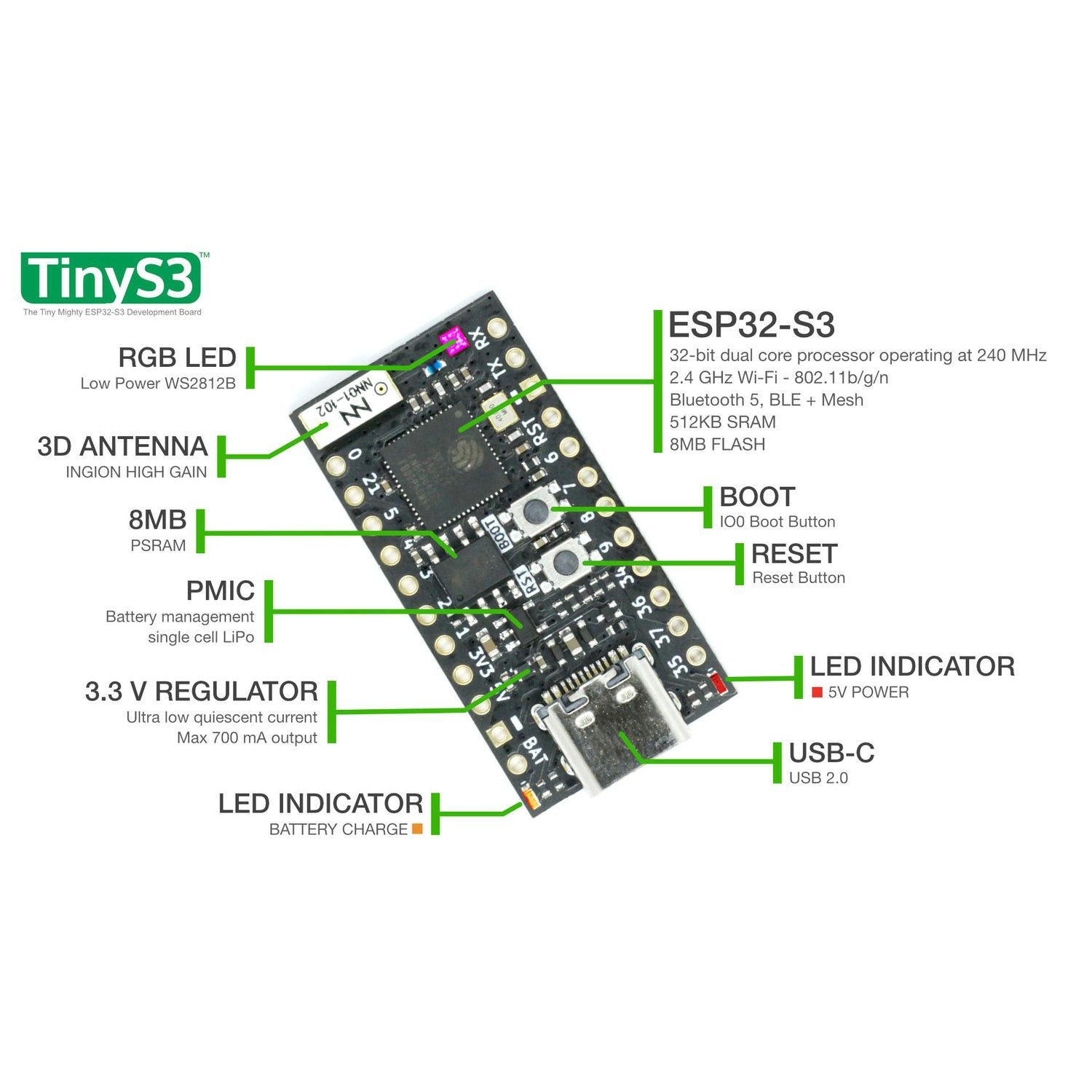

Features

• Dual 32bit Xtensa LX7 cores @ up to 240Mhz
• RISC-V Ultra Low Power Co-processor
• 2.4GHz Wifi - 802.11b/g/n
• Bluetooth 5, BLE + Mesh
• 8MB QSPI Flash
• 8MB of extra QSPI PSRAM
• 700mA 3.3V LDO Regulator
• Low power RGB LED
• ULTRA LOW Deep Sleep Current
• USB-C Connector with back-feed protection
• Native USB + USB Serial JTAG
• LiPo Battery Charging
• JST pads on the back supports PH connector
• VBAT and 5V Sense Pins
• 3D High Gain Antenna
• 17 GPIO
• Only 35 x 18mm in size
• Compatible with TinyPICO & TinyS2
• Board Dimensions: 35mm x 17.8mm
• Max Thickness: 4.3mm at the USB-C end

Getting Started

Unexpected Maker ESP32-S3 boards can be used with CircuitPython, MicroPython, ESP-IDF or Arduino.

• ESP32-S3 Getting Started
• ESP32-S3 FAQ

CircuitPython

Your boardships with the latest version of CircuitPython with ESP32-S3 support.

It also ships with the UF2 bootloader, so you can easily update yourboard with the latest CircuitPython firmware, whenever you desire.

Just plug yourboard into your computer and it will appear in your filesystem as a USB flash drive! Just copy your code over, or edit your code directly on the drive. Coding a microcontroller has never been easier!

As newer versions of CircuitPython are released, you are able to update as you require fromcircuitpython.org

If you need to grab the shipping CircuitPython code that comes with your board, you can grab thelatest here

MicroPython

MicroPython has excellent support for the ESP32, and that includes the ESP32-S3.

If you would like to put MicroPython on your new board, please follow the flashing guide for your board fromthis firmware linkand don't forget to erase your flash first!

For more information about developing projects on your new board, using MicroPython, check out theMicroPython documentation.

ESP-IDF

ESP32-S3 support in the IDF is part of the v4.4 release. The latest IDF is v5.0, but it's in early development, so I recommend you stick to the v4.4 release branch for the time being as there are some low level breaking changes in v5.

Check out theESP32-S3 IDF docsfor information on how to install it and develop for the ESP32-S3

Arduino

If you have not already setup your Arduino IDE environment to work with ESP32, please follow the officialEspressif ESP32 Arduino Core instructionsto install it.

Arduino support for the ESP32-S3 is available in 2.0.3 and later. Please install the latest version to be able to select ESP32-S3 boards with the latest fixes and features.

Downloads

• TinyS3 Schematic

github

TheUnexpected Maker ESP32-S3 github Repoincludes the following items:

• 3D STEP file for the TinyS3
• KiCAD 6 symbol file for the TinyS3 that you can use when integrating one of them into one of your PCB designs
• KiCAD 6 footprint file for the TinyS3
• PDF Schematic for the TinyS3

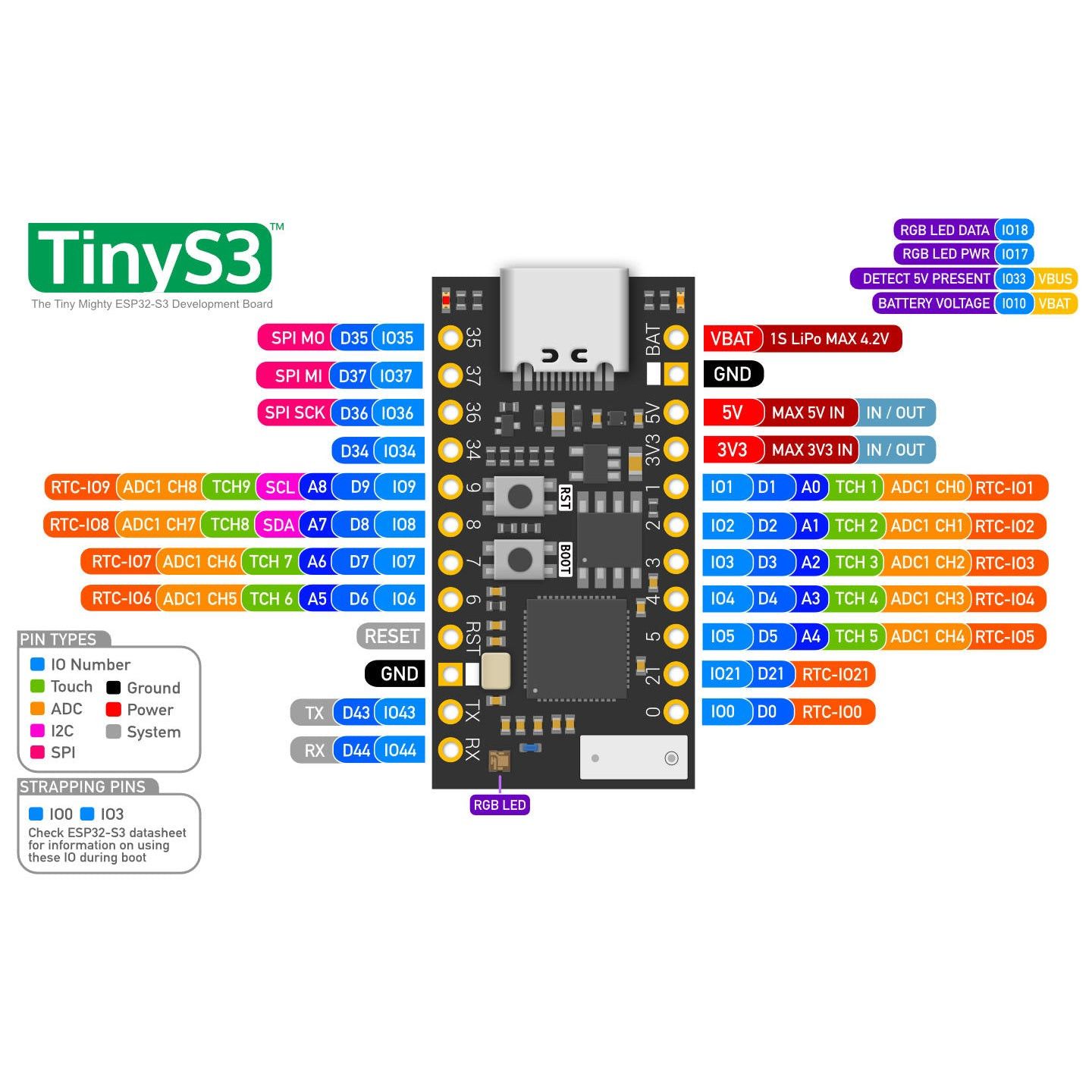

• Hi-res pinout reference card for the TinyS3
• Fritzing parts (soon)
