THERMOSTAT 12VDC

Name: THERMOSTAT 12VDC
Brand: Kemo Electronic
SKU: KEMO-M169A
Price: 29.10 EUR
Availability: InStock

In stock under 5 pcs

SKU#: KEMO-M169A

THERMOSTAT 12VDC

In stock under 5 pcs

SKU#: KEMO-M169A

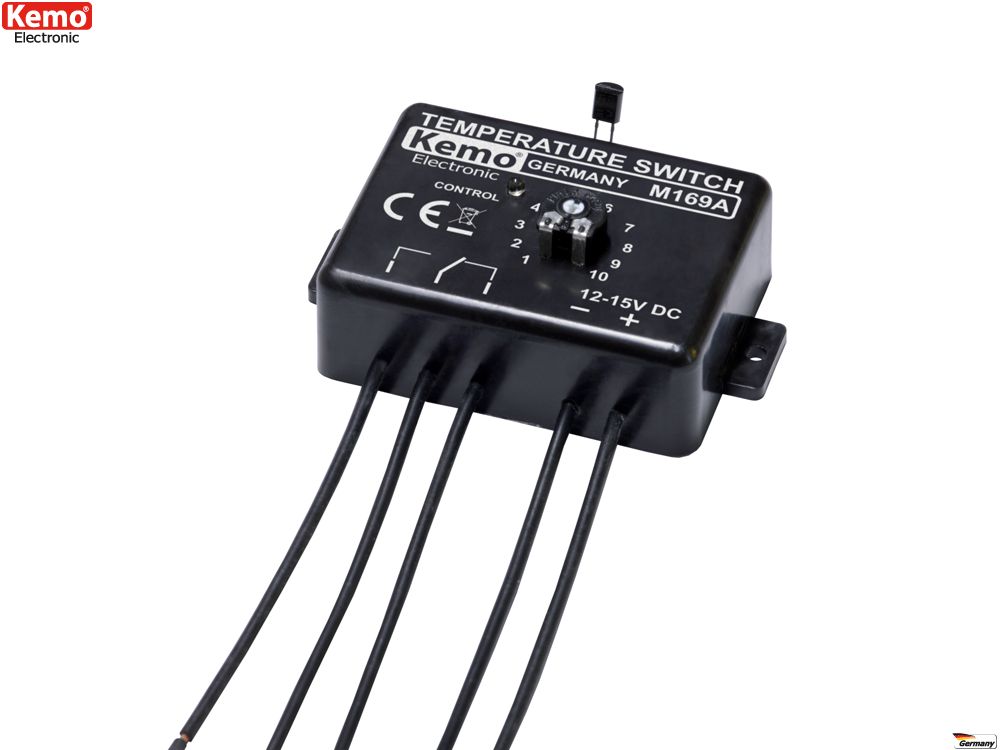

Kemo M169A - thermostat i.e. temperature-controlled relay. Suitable for max. 24V 5A control. e.g. for a device fan.

29,10 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Adjustable thermostat with a relay output. The temperature sensor connected to the module's terminal can be routed 1 m away using a two-core cable. When the temperature rises above the set threshold, the relay changes state. When the temperature falls below the set threshold and slightly above it, the relay changes state again.

Features

Temperature sensor KTY 81 / 221 (included)
Temperature threshold adjustable with a trimmer
Indicator LED shows the relay output
Relay output has a changeover contact (NC / NO)
Wiring connections

Technical specifications

Supply voltage	12 - 15 V/DC regulated (min. 0.1 A)
Temperature range	approx. 0 - 100°C, 3–6°C hysteresis
Relay output	NO and NC, max. 5 A / 25 V
The temperature sensor can be routed 1 m away using a two-core cable.
Dimensions	approx. 60 x 45 x 25 mm (without mounting ears, but including potentiometer).

Product Information

Availability In stock
Manufacturer Kemo Electronic
EAN 4024028031699
Product path Home Do It Yourself Building Kits Kemo ready-made modules THERMOSTAT 12VDC
SKU KEMO-M169A
Attributes
- Manufacturer's model M169A
- Click for more details https://www.kemo-electronic.de/en/Transformer-Dimmer/Sensors/Modules/M169A-Temperature-switch-thermostat-12-V-DC.php
- Dimensions 60 x 45 x 25 mm
