Features

• solvent-free and thermally conductive two-component adhesive
• epoxy-based adhesive filled with aluminum oxide
• resin and hardener composition (1:1) with a static mixing nozzle.
• the reservoir can be locked using the Luer-Lock system.
• good handling and working properties
• store in a cool, dry place

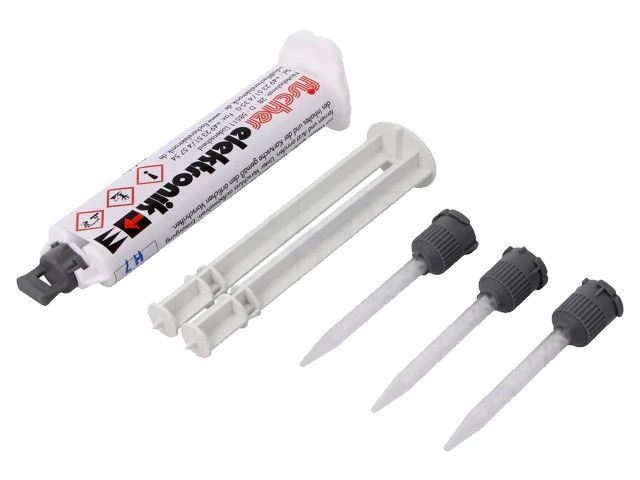

• contents: 1x 10 ml syringe / 3x mixer WLK M4

Technical data

• thermal conductivity: 1 W/m-K
• specific thermal resistance: 118°C cm/W
• working time at room temperature: approx. 30 min.
• curing time: 60 °C approx. 4 h / 25 °C approx. 16 h
• volume resistivity: 8-1011 Ω/cm
• temperature range: -50°C... +145°C
• mixing ratio: 1:1
