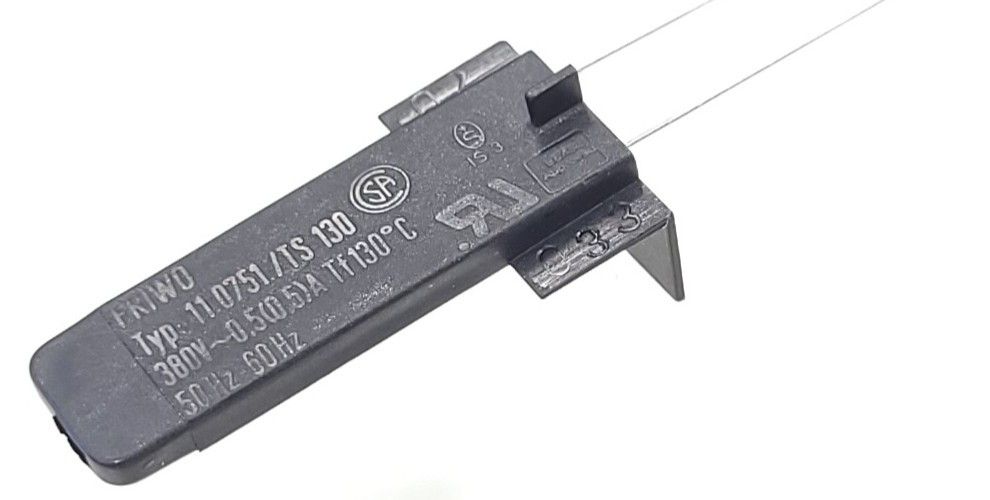

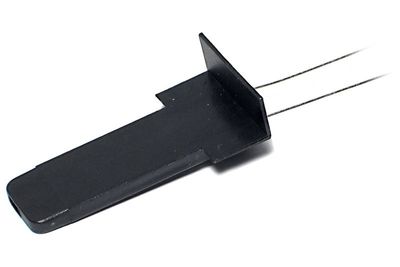

11.0751.TF130 Thermal fuse 130 °C 0,5 A / 380 V (Friwo)

11.0751.TF130 is a thermal fuse that permanently interrupts the circuit when the temperature rises to approximately 130 °C. It is used, among other things, in power supplies, transformers, chargers and other electrical devices to protect against overheating. The product is also known by the manufacturer marking 110751/TS130.

Technical specifications

• Type: Thermal fuse (single-use)
• Trigger temperature: 130 °C
• Rated current: 0,5 A
• Rated voltage: 380 V
• Lead diameter: 0,4 mm
• Lead length: 40 mm
• Body dimensions: 10 × 2,5 × 31 mm
• Manufacturer model: 110751/TS130

Features

• Reliable protection against overheating
• Permanently interrupting design
• Compact size facilitates installation
• Suitable for power supplies, chargers and electronic control devices

Applications

• AC/DC power supplies
• Transformers
• Battery chargers
• Industrial and electronic equipment
• Thermally protected electrical devices

Note: the thermal fuse is a single-use component. Once triggered, it must be replaced with a new one.
