Features

• 3.5-inch color screen,support 65K color display,display rich colors, 480X320 resolution
• Using the SPI serial bus, it only takes a few IOs to illuminate the display
• Easy to expand the experiment with SD card slot
• Provide a rich sample program
• Military-grade process standards, long-term stable work
• Provide underlying driver technical support

Specifications

• Display Color: RGB 65K color
• Screen Size: 3.5(inch)
• Type: TFT
• Driver IC: ILI9488
• Resolution: 480*320 (Pixel)
• Module Interface: 4-wire SPI interface
• Active Area (AA area): 48.96x73.44(mm)

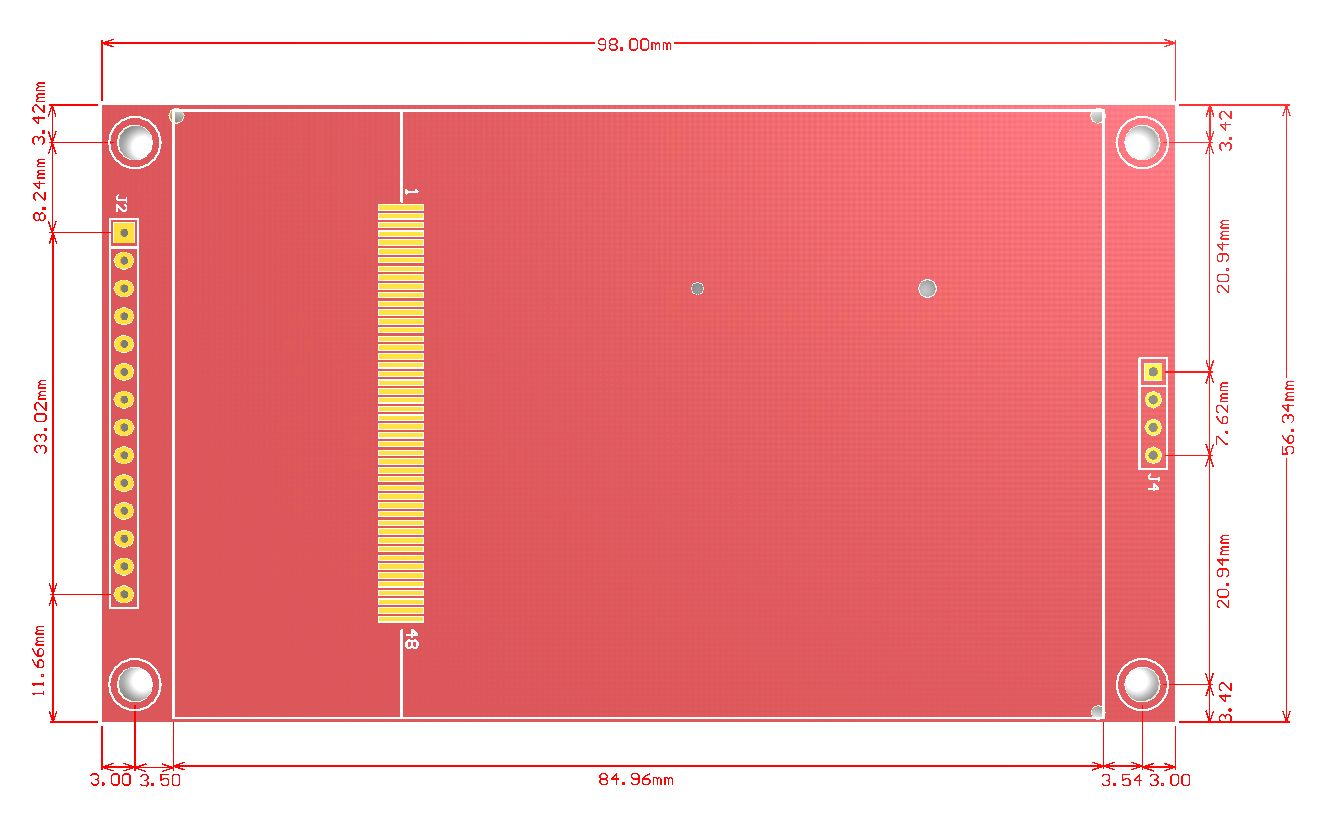

• Module PCB Size: 56.34x98(mm)
• Operating Temperature: -20℃~60℃
• Storage Temperature: -30℃~70℃
• VCC power voltage: 3.3V~5V
• Logic IO port voltage: 3.3V(TTL)
• Power Consumption: TBD
• Rough Weight: 45 (g)

Package List

• 3.5 inch display x1

Wiki & External links

• Elecrow Wiki
