TFT LCD 2.2" 320x240 SPI

Name: TFT LCD 2.2" 320x240 SPI
Brand: Elecrow
SKU: ELC-DIS25400R
Price: 32.93 EUR
Availability: InStock

Temporarily out of stock

SKU#: ELC-DIS25400R

TFT LCD 2.2" 320x240 SPI

Temporarily out of stock

SKU#: ELC-DIS25400R

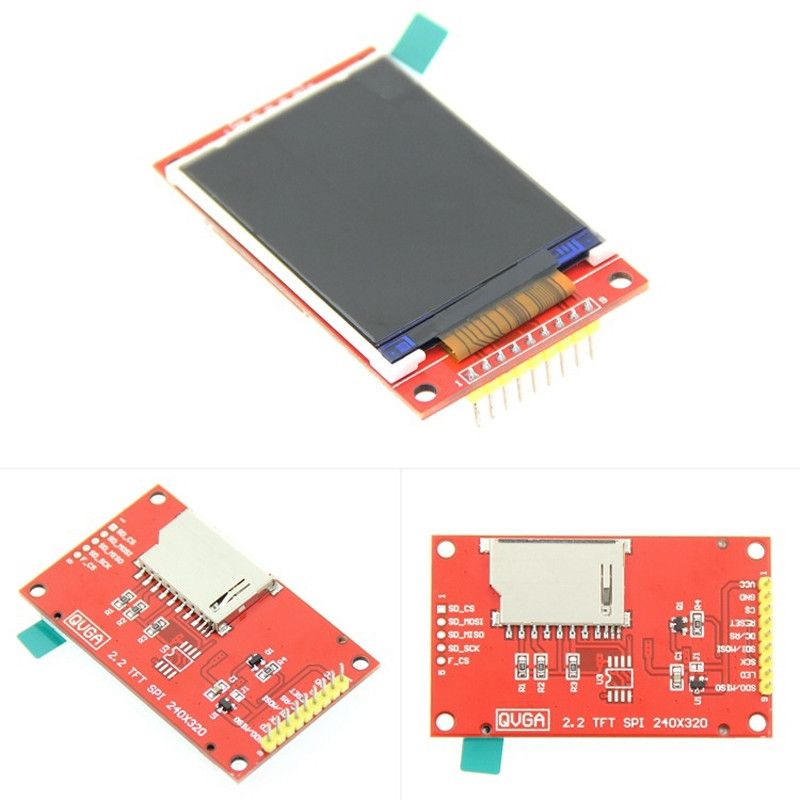

Elecrow DIS25400R - 2.2inch TFT LCD Color Screen Display Module 240X320 Serial Port

32,93 €

Temporarily out of stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

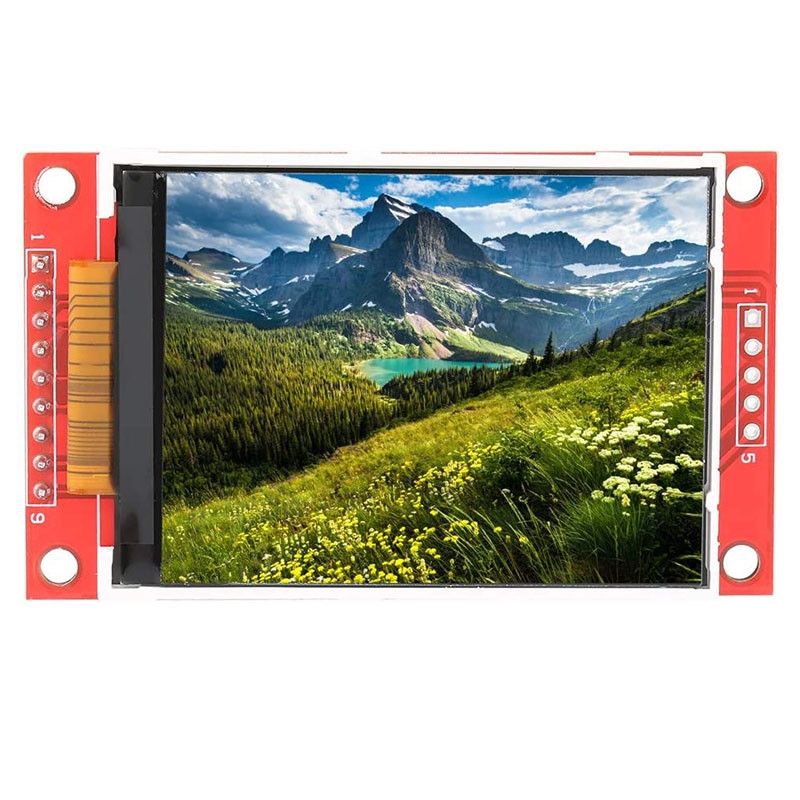

This 2.2-inch LCD module with a resolution of 240X320. It only requires 5 IOs to lighten the display, or a direct hardware serial peripheral interface that can be driven. LCD color screen display has SMT reflow and industrial control quality, which can work stably for a long time.

Features

2.2-inch color screen,support 65K color display,display rich colors
320X240 resolution, clear display
Using the SPI serial bus, it only takes a few IOs to illuminate the display
Easy to expand the experiment with SD card slot
Provide a rich sample program
Military-grade process standards, long-term stable work
Provide underlying driver technical support

Specifications

Name	Parameter
Display Color	RGB 65K color
SKU	MSP2202
Screen Size	2.2(inch)
Type	TFT
Driver IC	ILI9341
Resolution	320*240 (Pixel)
Module Interface	4-wire SPI interface
Active Area (AA area)	33.84x45.12(mm)
Module PCB Size	40.10x67.20(mm)
Operating Temperature	-20℃~60℃
Storage Temperature	-30℃~70℃
VCC power voltage	3.3V~5V
Logic IO port voltage	3.3V(TTL)
Power Consumption	TBD
Rough Weight(Package containing)	22(g)

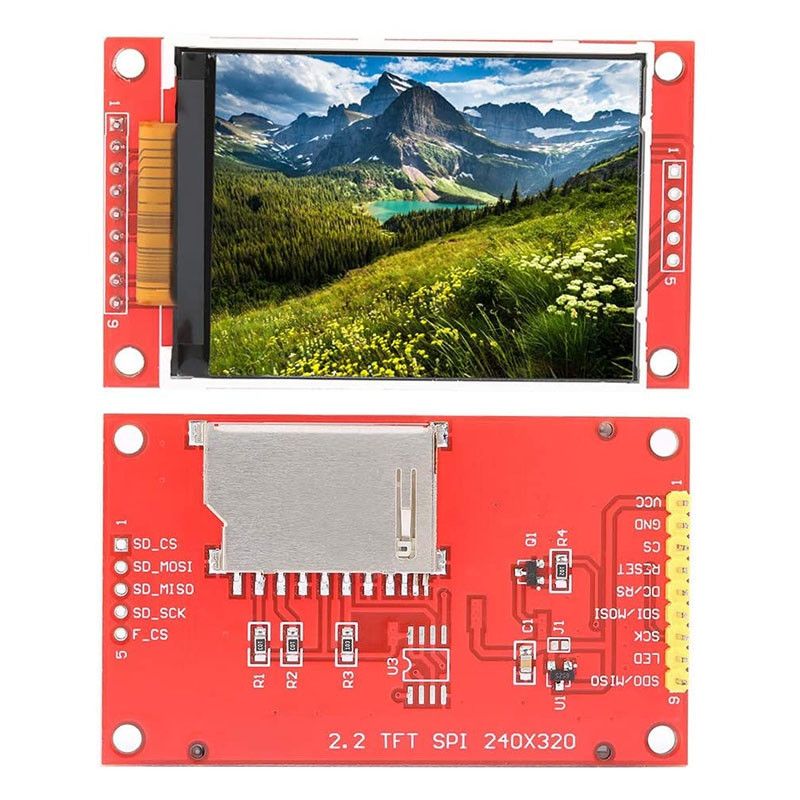

Interface Details

Number	Pin Label	Description
1	VCC	5V/3.3V power input
2	GND	Ground
3	CS	LCD chip select signal, low level enable
4	RESET	LCD reset signal, low level reset
5	DC/RS	LCD register / data selection signal, high level: register, low level: data
6	SDI/MOSI	SPI bus write data signal
7	SCK	SPI bus clock signal
8	LED	Backlight control, high level lighting, if not controlled, connect 3.3V always bright
9	SDO/MISO	SPI bus read data signal, if you do not need to the read function, you can not connect it

Package list

2.2inch TFT LCD Color Screen Display

Product Information

Availability Temporarily out of stock
Manufacturer Elecrow
Product path Home Components Optical Components Displays Graphic Display Modules TFT LCD 2.2" 320x240 SPI
SKU ELC-DIS25400R
Attributes
- Size category 2 tuumaa
- Resolution 320x240
- Interface SPI
- Manufacturer's model DIS25400R
- Click for more details https://www.elecrow.com/2-2inch-tft-lcd-color-screen-display-module-240x320-serial-port.html
- Dimensions 67.2 x 40.1 mm

TFT LCD 2.2" 320x240 SPI

TFT LCD 2.2" 320x240 SPI

Product Description

Features

Specifications

Interface Details

Package list

Links

Product Information

Ask about the product

Reviews
