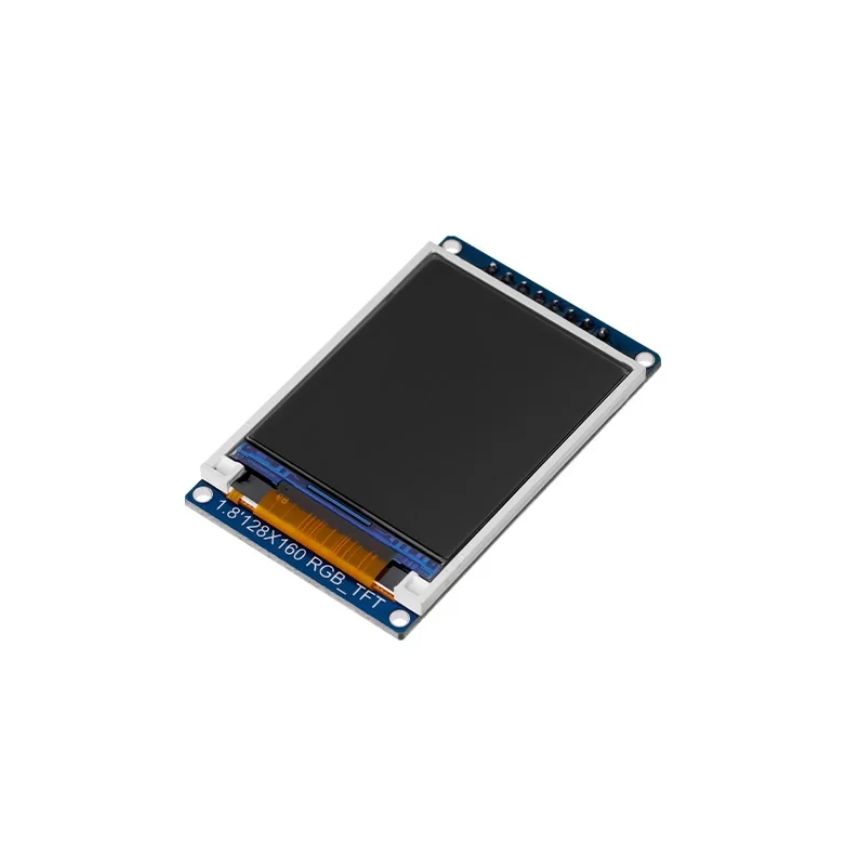

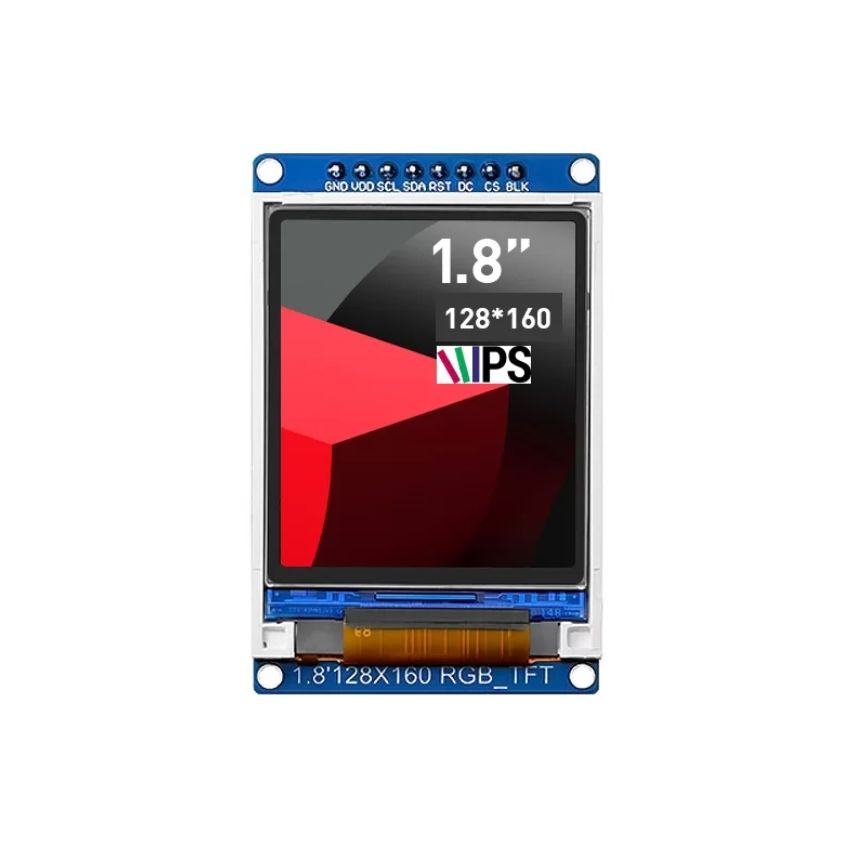

This is a 1.8-inch display with a 128(RGB)x160 resolution. It's an IPS full viewing angle LCD display panel, so colors look great in any direction. The driver IC is ST7735S, which adopts a general 8-pin SPI interface.

TFT-LCD liquid crystal display is a thin film transistor liquid crystal display, and it is also true color. TFT liquid crystal provides a semiconductor switch for each pixel, and each pixel can be directly controlled by a point pulse, so each node is relatively independent and can be controlled continuously, which not only improves the response speed of the display screen but also can be accurately controlled. Display color level, make TFT LCD color more real, good brightness, high contrast, a strong sense of layering, and bright colors.

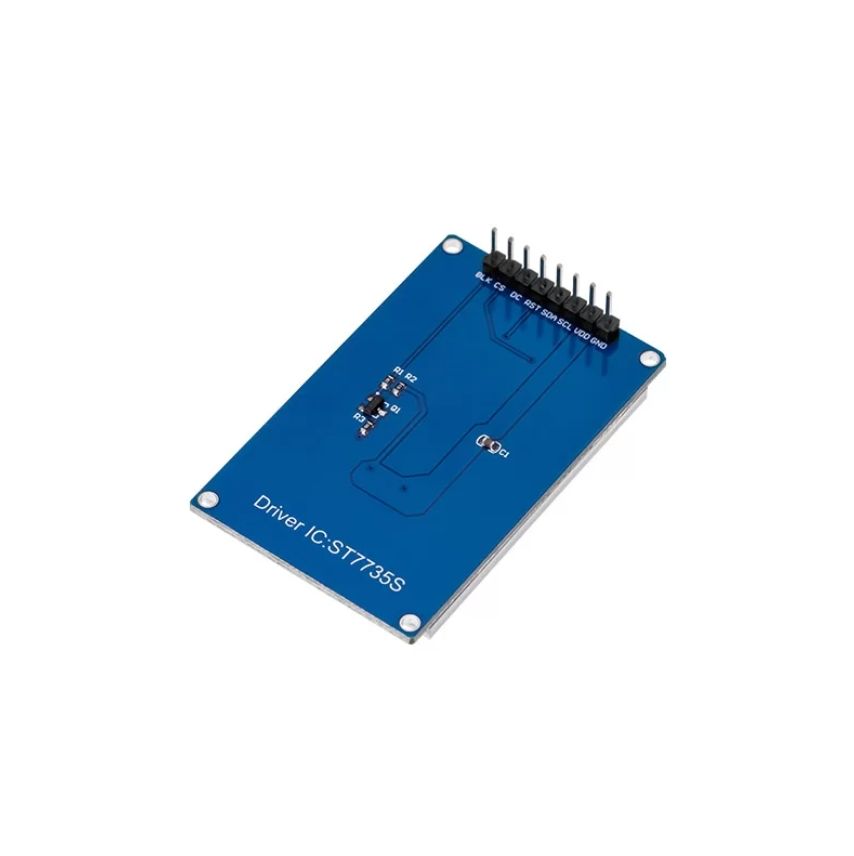

Pin Description

• GND: Ground
• VCC: Power 3.3v
• SCL: Serial Clock Pin
• SDA: Serial Data input
• RES: LCM Reset Pin (This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation.)
• DC: Data/Command Control
• CS: Chip Select
• BLK: Backlight Control Pin

Specification

• 1.8 inch TFT LCD Display
• Operating Voltage: 3.3V-5.0V
• Resolution: 128 (RGB) x160
• Interface: 8 Pin SPI serial
• Drive IC: ST7735S
• Operating Temperature: -20℃~+85℃
• Dimension: 54.5mm x 34.5mm

Package List

• 1x 1.8 inch TFT LCD Display

Wiki & External link

• 1.8 inch TFT-LCD Arduino Program
• 1.8 inch LCD STM32103C8 Test Program
• Driver IC Datasheet
• Schematic Diagram
