SCHÜTZINGER KO8162RG580550-SW Measurement lead with BNC connector, 0,5 m

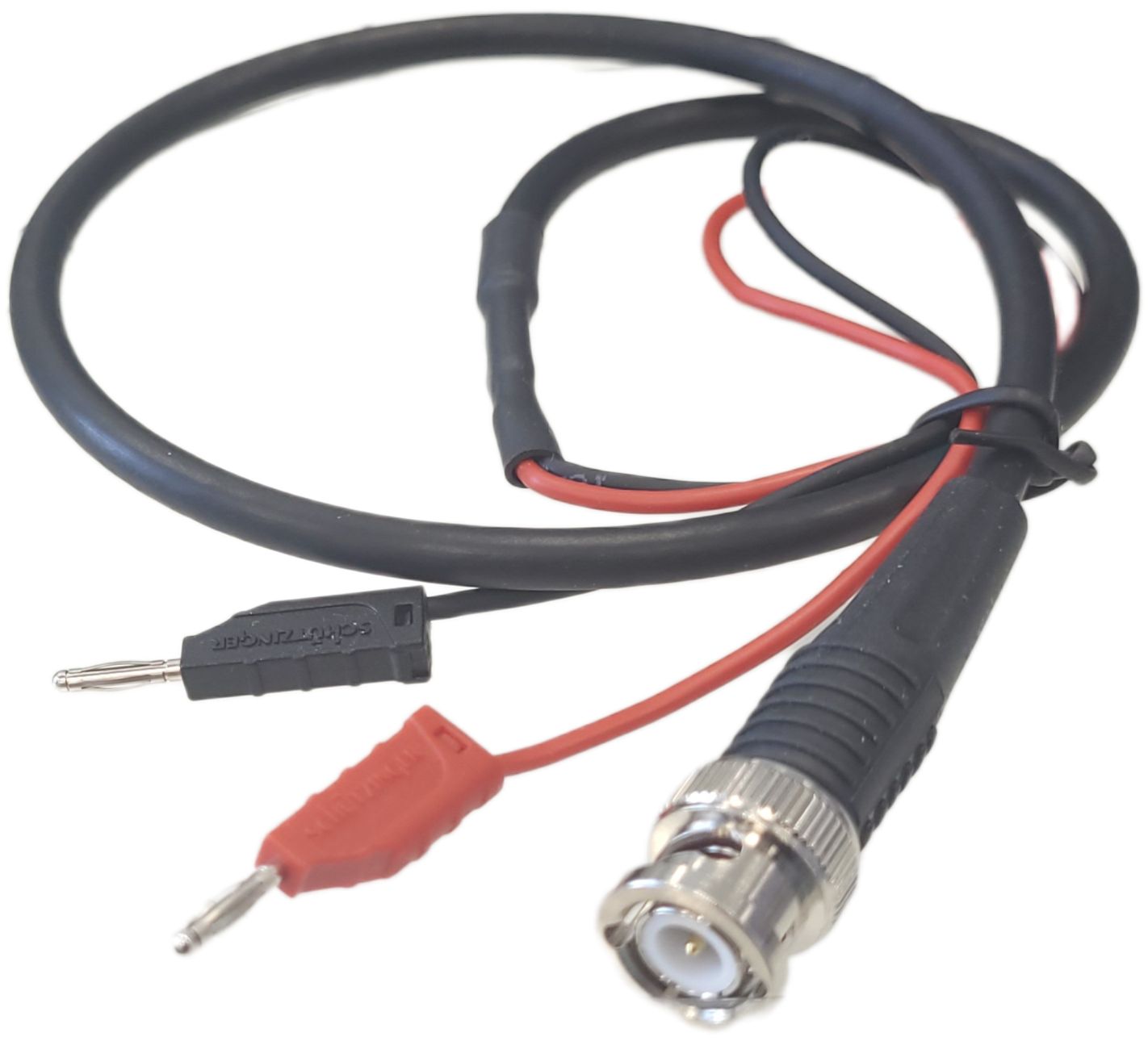

SCHÜTZINGER KO8162RG580550-SW is a high-quality measurement and test lead that connects a male BNC connector and two 2 mm stackable banana connectors. The lead is made from RG58 coaxial cable and is suitable for laboratories, electronics development, maintenance and connections to measuring instruments.
Features

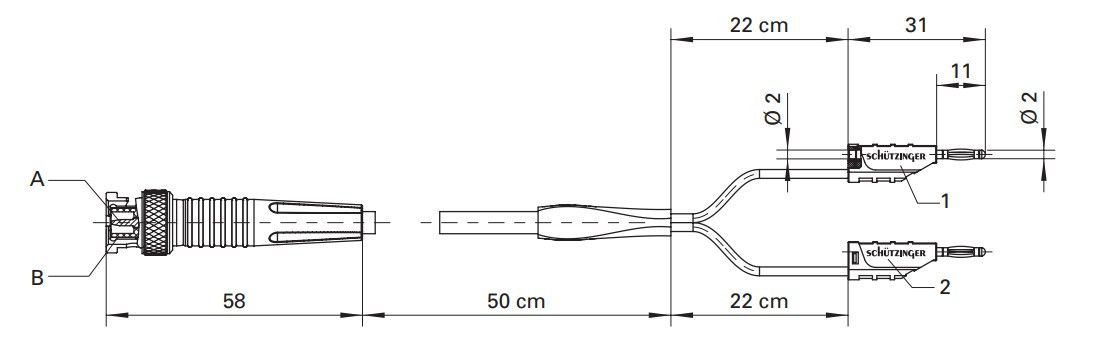

- BNC male connector ↔ 2 x 2 mm banana connector
- Cable length: 0,5 m
- RG58 coaxial cable
- Bandwidth up to 500 MHz
- Nickel-plated contacts
- PVC insulation
- Colors: red and black
- Operating temperature: -10...+50 °C
Applications
- Connections for oscilloscopes and measuring instruments
- Laboratory and testing environments
- Electronics development and maintenance
- RF and signal measurements
- Educational and research use
Technical specifications
- Manufacturer: SCHÜTZINGER
- Model: KO8162RG580550-SW
- Product type: Measurement lead
- Connector type A: BNC male
- Connector type B: 2 x 2 mm banana connector
- Length: 0,5 m
- Cable: RG58
- Bandwidth: 500 MHz
- Insulation material: PVC
- Contact plating: Nickel
The reliable German SCHÜTZINGER measurement lead provides interference-free signal transmission and a durable construction for professional measurement and testing use.
